Studio Experience
Cinema 20HD
SXGA LCD Home theater Video Projector
OVERVIEW - Boxlight

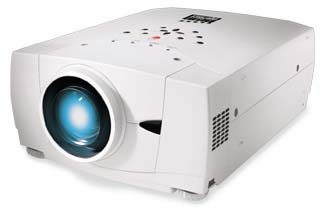

Cinema 20HD Widescreen Home Theater Projector:
The Studio Experience
Boxlight Cinema 20HD is a high-end home theater video LCD projector at a price
point that won’t break the bank. Producing exceptional film-quality video
and bright enough for any room in the house, this true 16:9 wide screen LCD
projector features extraordinary contrast (900:1) and 2200 ANSI lumens. Exceptional
video quality is realized with Digital Progressive Scanning and 3-D Digital
Noise Reduction. The unique Color Management system allows you to fine tune
the projected image’s color and tone to suit the most discriminating eye.
Power lens shift, digital keystone adjustment, and a wireless remote control
make set-up a breeze. Ships with video cables, remote and dust cover. Optional
network connection to integrate with your home network.
FEATURES - Boxlight Cinema
20HD Widescreen Home Theater Projector:
Technology:
Polysilicon w/MicroLensArray
Resolution:
1366 x 768 (Wide XGA)
Brightness:
2200 ANSI Lumens
Aspect Ratio:
16:9; 4:3 compatible
Weight: 17.4
lbs.
Inputs: Inputs:
Computer, video and audio
Outputs: Control
port
Lamp Life:
N/A Hours
Diagonal Image:
30in to 400in
Adjustment
Options: Onboard and remote
Additional
Features: Premium home theater projector featuring true 16:9 aspect ratio,
incredible brightness, and Wide XGA resolution!
SPECIFICATIONS - Boxlight Cinema
20HD Widescreen Home Theater Projector:
Native
Resolution:
1366 x 768 Wide XGA
Audible
Noise:
35 dB
Supported Resolutions:
SXGA, Wide XGA, XGA, SVGA, VGA, Mac
Weight:
17.4lbs / 7.89kg
Brightness:
2200 lumens
Dimensions:
12.6"(W) x 6.6"(H) x 16.9"(D)
32.00 cm/16.76 cm/42.93 cm
Lamp:
200
watt UHP
Projector Lens:
motorized zoom and focus, F/1.8-2.1, 1:1.3 zoom ratio, f=48.4-62.8mm
Lamp Life:
120-day guarantee
Image Size:
30
- 400 inches(diagonal)
76 - 1,016 cm(diagonal)
Display Type:
3
x 1.2" TFT polysilicon LCDs with micro lens array
Throw Distance:
4.9
- 51 ft
1.49 - 15.50 m
Contrast Ratio:
900:1
Keystone Adj.:
Digital adjustment vertical +/- 40 degrees, horizontal +/- 10 degrees
Colors:
16.7 million
Adjustments:
on-board and remote
Aspect Ratio:
16:9, 4:3 compatible
Power Supply:
100-120V/220-240V at 50-60Hz
H-Sync
Range:
15-100 kHz
Power Consumption:
300
watts
V-Sync Range:
50-100 Hz
HDTV/EDTV Compatibility:
1080i, 1035i, 720p, 575p, 575i, 480p
Inputs:
1-RGB computer, 1-BNCx5 for computer or component video, 1-DVI digital
computer, 1- RCA component video, 2-composite video, 1-S-Video, 1-RCA
(L/R) audio, 2- mini-jack audio
