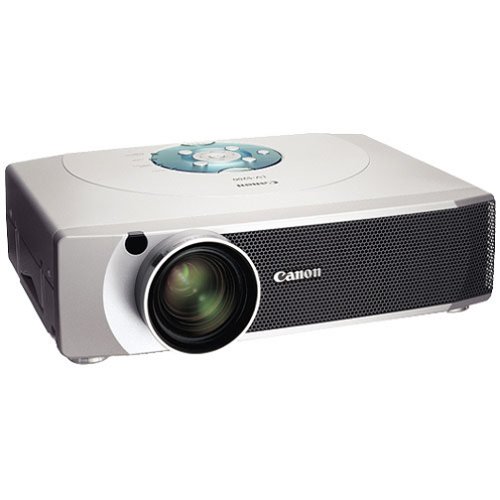

Canon LV-5200 SVGA 1700 ANSI Lumens LCD Video Projector
OVERVIEW - Canon LV-5200 LCD Video Projector
The LV-5200 is not one, but a
variety of products. Connect your laptop computer and it
becomes a portable conference room. Plug in your DVD player
and a big screen movie theatre comes to life. Connect a
document camera or a visualizer and a virtual classroom
emerges, with every eye glued to the screen. Whatever your
source is, one thing is certain; your audience will be
treated to bright, intensely color-rich images. An exclusive
1.5X zoom lens, super quiet fan, and superb connectivity
makes the LV-5200 ideal for those who value simplicity,
flexibility, and perfection.
Features
Canon Exclusive 1.5X
Optical Zoom Lens
1700 ANSI Lumens
Native SVGA Resolution
Superior Connectivity
DVI-I Terminal
Ultra-Portable
Silent Mode
Digital Keystone
Adjustment
Image Adjustment
400:1 Contrast Ratio
SPECIFICATIONS - Canon
CNCLV5200 LCD Video Projector
LV-5200 Specifications
Item Code
8609A002
Projector Type
Multi-media Projector
Net Weight
9.46 lbs (4.3 kg)
Dimensions (W x H x D)
13.1" x 3.5" x 9.6" (331.5mm x 89.5mm x 244.1mm)
(not including Adjustable Feet)
LCD Panel System
0.8" TFT Active Matrix type, 3 panels
Panel Resolution
800
x 600 dots
Number of Pixels
1,400,000 (800 x 600 x 3 panels)
Color System
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
High Definition TV Signal
480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
Scanning Frequency
H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz
Projection Image size
(Diagonal)
Adjustable from 24" to 300"
Horizontal Resolution
500
TV lines (S-Video)
Projection Lens
F
1.7 ~ 2.4 lens with f 25.7 mm ~ 37.9 mm
with manual zoom and focus
Throw Distance
3.6' ~ 31.8' (1.1 m ~ 9.7 m)
Projection Lamp
180
W
Video Input Jacks
RCA
Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and
Mini DIN 4 pin x 1 (S-Video)
Audio Input Jacks
Mini Jack (stereo) x 1
Computer Input Terminals
(VGA) HDB 15 Terminal x 1
Computer Audio Input Jack
Mini Jack (stereo) x 1
Control Port Connector
Mini DIN 8 pin x 1
USB Connector
USB
Series B receptacle x 1
Audio Output Jacks
Mini Jack (stereo) x 1
Internal Audio Amp
1.0
W RMS
Built-in Speaker
1
speaker, 1.6" x 1.2" (40.6mm x 30.5mm)
Feet Adjustment
0º
to 15.6º
Voltage and Power
Consumption
AC
100 ~ 120 V (2.5 A Max. Ampere), 50 / 60 Hz
(The U.S.A and Canada)
AC 200 ~ 240 V (1.4 A Max. Ampere), 50 / 60 Hz
(Continental Europe )
