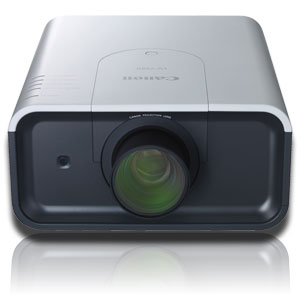

Canon LV7590 XGA LCD Video Projector lv-7590

Projector Specifications

Imaging Device

Transmissive LCD Panels x 3

Aspect Ratio

4:3

Native Resolution

XGA (1024 x 768)

Brightness

7000 Lumens

Uniformity

90%

Contrast Ratio

1600:1

Digital Keystone (Vertical)

±40 degrees (Manual)

Digital Keystone (Horizontal)

±20 degrees (Manual)

Optics

Projection Lens

Projector does not ship with lens. Five optional interchangeable lenses are available (see Optics listed below).

Image Adjustments

Image Mode

Standard / High Contrast / Cinema / Custom

Color Adjust

Brightness / Contrast / Sharpness / Gamma

Mounting

Ceiling / Rear / Ceiling and Rear / Upwards / Downwards

Tilt Angle

Adjustable foot up to 6.5 degrees

Input Signals

Scanning Frequency

H: 15~100 kHz, V: 48~100 Hz; 180 MHz or less

Analog PC Input

WUXGA / UXGA / WSXGA+ / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA

Digital PC Input

SXGA / WXGA / XGA / SVGA / VGA

Video/S-Video Input

NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N

Component Input

1080p / 1080i / 1035i / 720p / 576p / 576i / 480p / 480i

Terminals

(Input) D-Sub 15pin

Analog RGB / SCART Input

(Input) RCA x1

Component / Composite Input

(Input) RCA x3

Component / Composite Input

(Input) Mini DIN 4pin

S-Video Input

(Input) 5BNC

Analog RGB / Component / Composite Input

(Input) RJ-45

Optional LV-NI03 Adapter

(Input) Stereo Mini Jack

Audio Input x2

(Output) D-Sub 15pin

Analog RGB / Component Output

(Output) Stereo Mini Jack

Audio Output x1

Control Terminal

RS-232C

Lamp

Lamp Type

330W - NSHA

Lamp Life

2000 / 3000 Hours

Remote Control

Sensor

Front / Back

Mouse Control

USB

Ratings

Fan Noise (Quiet/Normal)

35 / 40 db (Quiet / Normal)

Power Consumption (Normal/Quiet/Stand-By)

499W (Normal) / 24.5W (Stand-by)

Power Voltage

AC 100 ~ 240V, 50/60Hz

Temperature Operating

41° to 104° F (5° to 40° C), 20 ~ 80% RH

Temperature Storage

14° to 140° F (-10° to 60° C), 5 ~ 90% RH

Dimension (WxHxD)

14.6" x 7.4" x 17.3" (370 x 187 x 440 mm) without lens

Weight

25.1 lbs. (11.4kg) without lens

Warranty

3 years parts and labor, 120 day lamp warranty

Optics (5 Interchangeable Lenses)

Ultra Wide Angle Lens (LV-IL01)
Projection Lens	F2.5
Lens Shift	1:01
Zoom (Powered)	No
Focus	No
Screen Size	N/A
Projection Distance (100")	5.3 ft. (1.63 m)
Throw Ratio	0.8:1
Wide Angle Zoom Lens (LV-IL02)
Projection Lens	F2.5 - 3.1
Lens Shift	Vertical= 1:1 - 10:0 / Horizontal= 2:3 - 3:2
Zoom (Powered)	Powered
Focus	Powered
Screen Size	N/A
Projection Distance (100")	8.2 to 12.1 ft. (2.5 - 3.7 m)
Throw Ratio	1.3 - 1.8:1
Long Focus Zoom Lens (LV-IL03)
Projection Lens	F2.0 - 2.9
Lens Shift	Vertical= 1:1 - 10:0 / Horizontal= 2:3 - 3:2
Zoom (Powered)	Powered
Focus	Powered
Screen Size	N/A
Projection Distance (100")	15.4 to 27.9 ft. (4.7 - 8.5 m)
Throw Ratio	2.3 - 4.2:1
Ultra Long Focus Zoom Lens (LV-IL04)
Projection Lens	F2.1 - 2.7
Lens Shift	Vertical= 1:1 - 10:0 / Horizontal= 2:3 - 3:2
Zoom (Powered)	Powered
Focus	Powered
Screen Size	N/A
Projection Distance (100")	27.6 to 38.4 ft. (8.4 - 11.7 m)
Throw Ratio	4.2 - 6.0:1
1.3x Zoom Lens (LV-IL05)
Projection Lens	F1.7 - 2.0 / f= 48.2 - 62.6 mm
Lens Shift	Vertical= 1:1 - 10:0 / Horizontal= 2:3 - 3:2
Zoom (Powered)	1.3x Optical Zoom (Powered)
Focus	Powered
Screen Size	31" - 400"
Projection Distance (100")	4.6 to 48.2 ft. (1.4 to 14.7 m)
Throw Ratio	1.77 - 2.30:1
