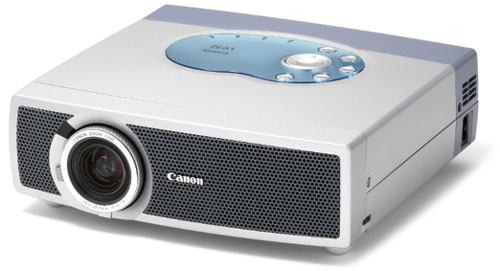

Canon LV-S2 SVGA 1000 ANSI Lumens LCD Video Projector
OVERVIEW - Canon LV-S2 LCD Video Projector
Canon's LV-S2 is Canon's
newest microportable projector: small and lightweight with
an ultra-wide-angle lens, making it perfect for the business
traveler or anyone who demands portability. With its ability
to be connected to computers running either Windows or Mac
operating systems and video sources such as VCRs, DVDs and
cameras, the LV-S2 is the right choice for the classroom and
for home theatre (giving a large-screen, theater-like
experience in a small room). The LV-S2 delivers an
incredibly bright picture, thanks to Canon's
state-of-the-art optical technology.
Features
Precision Canon Optical
Lens
Short Throw Distance --
Large Screen Size
1000 ANSI Lumens
Native SVGA Resolution
Computer and Video
Signals Support
Display Adjustments
Connections
Projection Options
SPECIFICATIONS - Canon
CNCLVS2 LCD Video Projector
LV-S2
Specifications
Item Code
8126A002
Projector Type
Multi-media Projector
Net Weight
6.39 lbs (2.9 kg)
Dimensions (W x H x D)
10.24" x 2.99" x 9.63" (260mm x 76mm x
244.5mm)
(not including Adjustable Feet)
LCD Panel System
0.7" TFT Active Matrix type, 3 panels
Panel Resolution
800 x 600 dots
Number of Pixels
1,440,000 (800 x 600 x 3 panels)
Color System
PAL, SECAM, NTSC, NTSC 4.43, PAL-M and
PAL-N
High Definition TV Signal
480i, 480p, 575i, 575p, 720p, 1035i, and
1080i
Scanning Frequency
H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz
Projection Image size
(Diagonal)
Adjustable from 29" to 200"
Horizontal Resolution
500 TV lines (S-Video)
Projection Lens
F 1.6 ~ 2.0 lens with f 20.3 mm ~ 28.2 mm
with manual zoom and focus
Throw Distance
3.6' ~ 26.2' (1.1 m ~ 8 m)
Projection Lamp
150 W
Video Input Jacks
RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and
Mini DIN 4 pin x 1 (S-Video)
Audio Input Jacks
Mini Jack (stereo) x 1
Computer Input Terminals
(VGA) HDB 15 Terminal x 1
Computer Audio Input Jack
Mini Jack (stereo) x 1
Control Port Connector
Mini DIN 8 pin x 1
USB Connector
USB Series B receptacle x 1
Audio Output Jacks
Mini Jack (stereo) x 1
Internal Audio Amp
1.0 W RMS
Built-in Speaker
1 speaker, 1.4" x 0.8" (35mm x 20mm)
Feet Adjustment
0º to 10.7º
Voltage and Power
Consumption
AC 100 ~ 120 V (2.5 A Max. Ampere), 50 /
60 Hz
(The U.S.A and Canada)
AC 200 ~ 240 V (1.4 A Max. Ampere), 50 / 60 Hz
(Continental Europe )
