Christie Digital LS+58 SXGA+ LCD 5800 Lumens Projector

Item Currently Unavailable

Back to Christie Digital Projectors

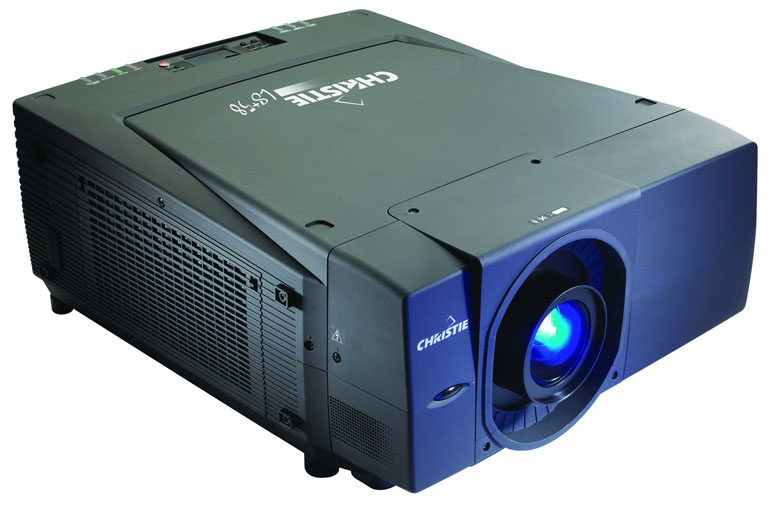

Christie Digital LS+58 LCD Projector

CHRISTIE DIGITAL LS+58 SXGA+ LCD 5800 Lumens Projector

Click For Larger Image

OVERVIEW - Christie Digital LS+58 LCD Projector

The Christie LS+58 offers the power of high brightness, high contrast and high resolution images.

With 5800 lumens and 1300:1 contrast, SXGA+ resolution and a full range of optional lenses and input modules, there's the freedom of choice with installation and operational flexibility for nearly any application.

State of the art high bandwidth electronics support signals up to UXGA and video up to 1080i. Latest 10-bit video processing reproduces images flawlessly. New input modules include standard on-board edge-blending and image warping for the ultimate dynamic displays.

The dual lamp design provides brightness when needed and redundant lamp operation in single lamp mode always. With legacy support for lenses and modules from the popular RoadRunner Series, the LS+58 fits seamlessly into any application.

The Christie LS+58 endless possibilities for the most dazzling presentation displays.

FEATURES - Christie digital Ls+58 SXGA+ LCD 5800 Lumens Projector:

5800 ANSI lumens maximum
2-lamp system-dual or single lamp mode for maximum brightness and failsafe operation
True SXGA+ resolution (1400 x 1050)
1300:1 contrast ratio-for finely detailed images, effortlessly
New standard input modules include on-board edge-blending and warping
Flexible digital connectivity - wide range of standard inputs and optional interface cards

SPECIFICATIONS - christie digital ls+58 lcd projector

	Image		5800 ANSI Lumens (Dual Lamp) 2900 ANSI Lumens (Single Lamp) 90% brightness uniformity Contrast: 1300:1 full field

	Display Technology and Resolution		3-panel 1.4" LCD Native SXGA+ 1400 x 1050 resolution 4:3 native aspect ratio

	Input Signal Compatibility		VGA through to UXGA (1600 x 1200) Accepts and displays all currently known HDTV formats (720p@60, 1080i@60, 1080i@50, 1035i) Multi-standard video decoder Horizontal and vertical scaling, all inputs

	Scan Rates		Horizontal - 15 to 120 kHz Vertical - 50 to 120 Hz Pixel clock - 230 MHz

	Inputs		DVI-D (digital) and HD15 (analog) 5-BNC: RGBHV/YPbPr Composite video, S-video USB type A and B< DB9 RS-232 Wired remote jack

	Graphical User Interface		Auto Set-up feature "Direct Access" intuitive user interface for complete projector control in 11 world languages Auto power up feature

	Lens Mount		Motorized horizontal (+/- 20%) and vertical (+/- 100%) offset Built-in light shutter

	Lamp		Dual 300W lamps 1,500 hours typical life

	Power Requirements		Line voltage 100V AC to 240V AC +/- 10% @ 50/60 Hz Power consumption: 950W maximum Operating current: 9.5A maximum @ 100V AC; 4.5A maximum @240V AC Operating temperature: 40° to 95° F (5° to 35° C)

	Audible Noise		43dB

	Dimensions		Weight: 54.3 lbs (24.7 kg) Size: 23.8" L x 20.4" W x 9.9" H Size: 606mm L x 518mm W x 252mm H

	Standard Accessories		RF remote (w/batteries), line cord, user manual Computer cable (Dsub15 to Dsub15) DVI cable Warping & Blending module Warping & Blending software Real Color Manager Pro software

	Optional Accessories		Fixed lenses: 1.0:1, 1.5:1, 8.9:1 Zoom lenses: 1.8-2.3:1, 2.0-2.6:1, 2.6-3.3:1, 3.3-4.5:1, 4.5-5.8:1, 5.6-8.0:1, 8.1-11.6:1 Shipping case Ceiling mount Dual HD/HD-SDI input module DVI Input module Warping and Blending module ChristieNET

	Operating Environment		Temp: 40°F to 95°F (5°C to 35°C) Humidity: 20%-80% (non-condensing) Altitude: 0-8850ft (0-2700m)

	Regulatory Approval		<CSA C22.2 No.950, UL 1950, cUL, IEC950 (EN60950), FCC Class A, EN55022 class A, CE

	Warranty		Limited 3 years parts and labor (excluding lamp) Lamp warranty: 120 days or 500 hours (whichever comes first)

Manufacturer Homepage: www.christiedigital.com
