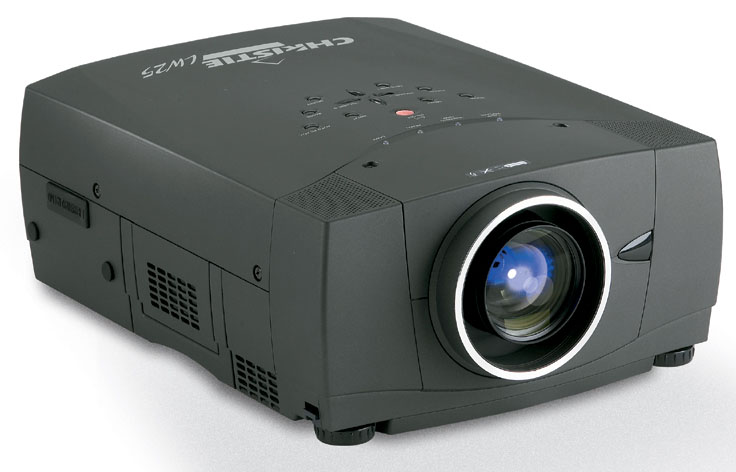

CHRISTIE DIGITAL LW25U WXGA 2500 Lumens LCD Projector
Click For Larger Image
OVERVIEW - Christie Digital LW25U LCD Projector
Christie's LW25U delivers high performance images with widescreen
punch wherever the ultimate in video presentation is needed. With a
true 16:9 aspect ratio and the visual power of 2200 ANSI lumens, the
LW25U displays native HD content in its purest form. Perfect for
smaller rooms and lower light conditions, the native WXGA panel
provides 44% more pixels on the screen than an XGA resolution
projector displaying 16:9 content. When displaying computer or data
presentations, the image can be centered on the screen in
pixel-perfect XGA (1024 x 768) mode without changing the zoom lens
or cropping the image height.
FEATURES - Christie digital Lw25u WXGA 2500 Lumens LCD Projector:
2,200 ANSI Lumens
True WXGA resolution (1366 x 768)
Contrast ratio 900:1
Digital and analog connectivity of data and video sources
Digital De-interlacing Technology
Digital and optical keystone correction
Motorized zoom, focus & lens shift (up/down)
Digital magnification up to x49 and pan
Picture and audio mute function
Suite of optional accessories
SPECIFICATIONS - christie digital lw25u lcd projector
Brightness
2,200 ANSI lumens (typical)
90% brightness uniformity
Contrast
Ratio
900:1 on/off
Resolution
3 x 1.2" p-Si Active Matrix TFT LCD panels
True WXGA 1366 x 768
8-bit color resolution offering 16.7 million displayable
colors
10-bit linear gamma
Dynamic
Scaling
Digital scaling of VGA to SXGA resolutions to WXGA
Digital de-interlacing of STV, DTV and HDTV formats with
DDT technology
Horizontal
Frequency Range
15 to 100 kHz
Vertical
Frequency Range
50 to 100 Hz
Dot Clock
140 MHz
Optional
Lenses
The LW25 is offered in a lens-less configuration; choose
from the following optional range of lenses:
Fixed short throw 0.8:1 lens
Medium throw 1.3-1.8:1 zoom lens
Standard throw 1.8-2.4:1 zoom lens
Long throw 2.4-4.3:1 zoom lens
Ultra long throw 4.3-6.0:1 zoom lens
Vertical
Lens Shift
From 10:0 (up) to 1:1 on axis
Inputs
Input 1: DVI-D (24-pin digital RGB) or HD15 (analog RGB
); audio input (1 x 3.5mm mini-stereo)
Input 2: analog RGB with 5 BNC for RGBHV, YPbPr and YUV;
audio input (1x 3.5mm mini stereo)
Input 3: composite (RCA), YPbPr, and YUV video (3 RCA
connection); S-Video (4 pin mini DIN); audio input (2x RCA
L/R)
Control port input: (mini DIN 8-pin x1 USB type B x 1)
Outputs
Two built-in 2W RMS speakers (per channel) and amplifier
Network
Connection
Optional ChristieNET for connection to TCP/IP network
Source
Compatibility
Compatibility with VGA, SVGA, XGA, SXGA, and MAC,sources
Accepts composite video, S-video and component video from
VCR, DVD, laser disc players and video cameras
Auto detects PAL, PAL-M, PAL-N, NTSC, NTSC4.43 and SECAM
video standards
Compatible with DTV/HDTV formats 480i, 480p, 575i, 575p,
720p, 1035i and 1080i
HDTV compatible 800 TV lines horizontal resolution
Digital Visual Interface (DVI-D) compatible
Video decoder with 3D digital comb filter for Y/C
separation
Enhanced
Feature Set
3D Digital Noise Reduction
Power zoom and focus
Motorized lens shift (up/down)
Dual keystone correction, digital and optical +/- 40°
vertical, +/- 10% horizontal
Digital zoom and pan (max. x49)
Control/Networking
Automatic set-up (phase/tracking/positioning)
USB Type B
LED display for diagnostics
Remote control jack
RS232-C communications port via 8-pin mini DIN terminal
IR remote keypad with laser pointer and mouse control
