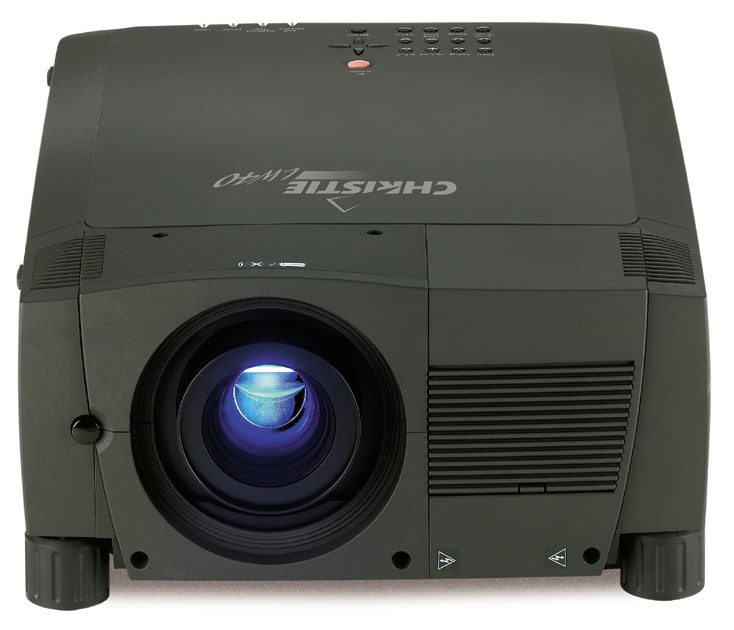

CHRISTIE DIGITAL LW40U WXGA 4000 Lumens LCD Projector
Click For Larger Image
OVERVIEW - Christie Digital LW40U LCD Projector
Christie's LW40U is the new benchmark for native widescreen displays
and the ultimate in video presentation. With a true 16:9 aspect
ratio and the visual power of 4000 lumens, the LW40U displays native
HD content in its purest form. The native WXGA panel provides 44%
more pixels on the screen than an XGA resolution projector
displaying 16:9 content. The dual lamp design gives you the
confidence of guaranteed performance and the option of projecting
the full 4000 ANSI lumens for bright, large screen images or 2,400
ANSI lumens in single-lamp mode, to extend the life of the lamp.
FEATURES - Christie digital Lw40u WXGA 4000 Lumens LCD Projector:
True WXGA resolution (1366 x 768)
4000 ANSI lumens maximum
DTV & HDTV compatible
Progressive scan video decoding
Motorized zoom, focus & lens shift (up/down)
2 lamp system - dual or single lamp operation
Lamp redundancy and failsafe operation
Monitor lamp usage
Extensive optional lens suite
Presentation support features
SPECIFICATIONS - christie digital lw40u lcd projector
Brightness
4,000 ANSI lumens (typical, dual lamp mode)
2,400 ANSI lumens (typical, single lamp mode)
90% brightness uniformity
Contrast
Ratio
Up to 900:1 on/off
Resolution
3 x 1.2" LCD TFT p-Si Active Matrix light engine with
Micro Lens Array
True WXGA (1366 x 768) resolution
8-bit digital color processing offering 16.7 million
displayable colors
Dynamic
Scaling
Digital scaling of VGA - SXGA resolutions
Digital de-interlacing of STV, DTV and HDTV formats with
Digital Interpolation Technology (DIT) automatic with 2:3
pull-down
Horizontal
Frequency
15 to 120kHz
Automatic frequency control
Vertical
Frequency
50 to 120Hz
Automatic frequency control
Dot Clock
230MHz
Standard
Projection Lenses
A full suite of short/medium/long-fixed and zoom optional
lenses
Power adjustable zoom, focus, up/down, lens shift
Power lens shift U/D ratio of up to 10:0-0:10
Image elevation adjustment: up 6.9 degrees
Screen size 40" - 600" (0.15 m to 15.24 m diagonal
Modular
Inputs
Input 1 (removable):
Analog RGB, (15-pin D-sub), audio input (2 x RCA-R, L/mono),(Control
- 8-pin mini-DIN x1)
Input 2 (removable):
Analog RGB with 5 BNC for RGBHV, YpbPr and YcbCr, audio
input (2x RCA-R,L /mono), Control (8-pin mini-DIN x 1)
Input 3 (removable):
Composite (2 x BNC), S-video, Y,C (4-pin mini- DIN),
audio - (2 x RCA -R, L/mono)
Outputs
Two built-in speakers 3W per channel
Stereo audio loop through RCA x2
Source
Compatibility
Compatible with VGA, SVGA, WXGA, SWXGA, UWXGA and Mac
sources
Accepts Composite Video, S-Video and component video from
VCR, DVD, Laser Disc players and video cameras
Auto-detects PAL, PAL M, PAL N, NTSC, NTSC4.43 and SECAM
video standards
Compatible with DTV/HDTV formats, 480 30i, 480 30p, 720p,
720 60p, 1035 30i, 1080 25i and 1080 30i and 1035i
HDTV compatible, 800 TV lines horizontal resolution
Digital Visual Interface (DVI-D) compatible
Enhanced
Feature Set
Progressive scan video decoding
3D digital noise reduction
2-lamp or 1-lamp mode, user-selectable from menu
Motorized zoom and focus
Motorized lens shift (up and down)
Digital zoom function (max. x49)
Digital keystone function (+/- 30 degrees)
Power management function
Control/Networking
Automatic Multi-Scanning Set-up system (AMSS)
(phase/tracking/position)
USB Type B mouse control
Remote control jack
RS232-C control port and loop through via 9-pin D-sub
terminal (in/out)
Wired remote control
IR remote keypad with mouse and laser pointer
Front and rear IR receivers
Remote mouse control
ChristieNET™ control and monitoring via HTML and SNMP
(optional)
Graphical
User Interface
Easy set-up and intuitive multi-language onscreen
displays (OSD)
(English/German/French/Spanish/Italian/Portuguese/Dutch/Swedish/
Chinese/Korean/Japanese)
Direct-key status function
Image aspect ratios: 16:9 (native) and 4:3
Blue back display
Standby on-screen logo display
Picture reverse scans function (left/right, top/bottom)
for front, rear and inverted projection
Lamp
Specification
Dual-lamp 265W UHP lamps with optional 1-lamp operation
1,000 hours (typical) lamp life at maximum brightness
Lamp life warning indicators
User replaceable lamps
Power
Requirements
Universal power AC 100 - 240V, 50/60Hz
Operating voltage: 90-264 V (100-120 V/200-240V +/- 10%)
Power consumption: 720W maximum
Thermal dissipation: 2,700 BTU/hr
Operating temperature: 5° to 35° C (storage: -10° to 60°
C)
Operating humidity: 20 - 80% (storage: 0 - 90%)
Acoustic noise level: 45dBA (Auto fan control for noise
level reduction)
Weight and
Size
45.2 lbs (20.5 kg)
17.3" W x 8.9" H x 23.8" L
439mm W x 230mm H x 605mm L
Standard
Accessories
Real Color Manager (RCM) user-definable gamma software
Wireless/wired remote controller with mouse control and
laser pointer (two "AA" type batteries and cable included)
