Christie Digital LX25A LCD Projector Lx25a

Christie Digital LX25A XGA 2500 ANSI Lumen LCD Projector

Item Currently Unavailable

CHRISTIE DIGITAL LX25A 2500 ANSI Lumen Hi-Res Projector

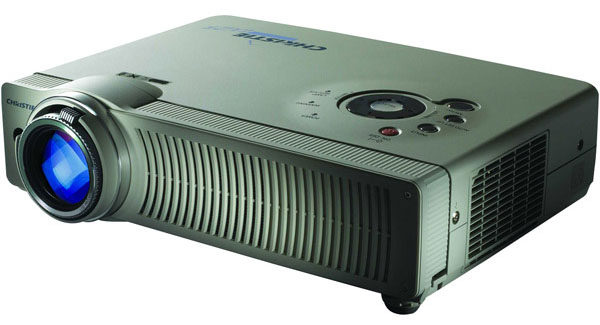

Click For Larger Image

OVERVIEW - Christie Digital LX25A LCD Projector

For powerful presentation projection on the move, the Christie LX25a is the perfect resource. Weighing just 6.2 lb and delivering 2500 ANSI lumens, the LX25a fits anywhere and delivers bright, high-impact presentations.

Lightweight and low profile with native XGA resolution and a 450:1 contrast ratio, this dynamo projector provides displays with crisp, detailed images. The short-throw zoom lens is perfect when space is limited. Latest progressive-scan video electronics provide improved video performance and detailed, artifact-free images for brilliant presentations. Optional ChristieNET connectivity provides network-enabled monitoring and control.

Easy to use, auto set-up simplifies start-up with image adjustments and automatic keystone alignment at the push of a button. An intuitive graphic user interface makes navigation simple. A customizable startup logo lets you make an impression immediately – while the new security PIN code prevents unauthorized operation.

Compact and ultra-portable for presentations with eye-catching appeal.

FEATURES - Christie digital Lx25a 2500 ANSI Lumen Hi-Res Projector:

450:1 contrast ratio
VGA to SXGA STV, DTV, & HDTV digital visual interface
3 x 0.8 inch" p-Si active matrix TFT LCD
1024 x 768 XGA resolution
Scan video decoding with automatic HDCP compliant 3-2 pulldown
Lens manual zoom 1.25-1.95:1
Screen size: 40 inch"-300 inch"
Manual zoom and focus
Lightweight and low profile
11 7/10 inch" W x 2 4/5 inch" H x 8 2/5 inch" D
Includes mouse control cable, HD-15 DVI cable, soft carrying case, and European and UL AC cords"

SPECIFICATIONS - Christie Digital LX25a LCD Projector

• 2500 ANSI lumens

• 85% brightness uniformity

• Contrast ratio: 450:1 on/off

DISPLAY TECHNOLOGY AND RESOLUTION

• 3 x 0.8" p-Si Active Matrix TFT LCD panels with Micro Lens Array

• True XGA (1024 x 768)

• 8-bit color resolution offering 16.7 million displayable colors

INPUT SIGNAL COMPATIBILITY

• VGA to SXGA

• STV, DTV and HDTV

• Digital Visual Interface (DVI-I) HDCP compliant

• Progressive scan video decoding with automatic 3-2 pulldown

SCAN RATES

• Horizontal – 15 kHz to 100 kHz

• Vertical – 50 Hz to 100 Hz

PIXEL CLOCK

• 140 MHz

STANDARD LENS

• Manual zoom: 1.25 – 1.95:1

• Screen size: 40"– 300"

• Manual zoom and focus

INPUTS, CONTROL AND NETWORKING

• DVI-I (24-pin digital RGB); audio input (stereo mini-jack)

• HD15 (analog RGB, YPbPr); audio input (stereo mini-jack)

• Composite (RCA); S-Video (4-pin mini-DIN); audio input (2 x RCA L/R)

• Control port input: 8-pin mini DIN and USB Type B

• Automatic set-up (phase/tracking/positioning/keystone correction)

• Optional ChristieNET™ for connection to TCP/IP network

• IR remote keypad with laser pointer and mouse control

OUTPUTS

• HD15 (analog RGB)

• Audio (stereo mini-jack)

• Single 1W speaker

ENHANCED FEATURE SET

• PIN code security for power on

• “Blackboard” mode to optimize display on green chalk boards

• Color management system (built-in)

• Horizontal and vertical digital keystone correction, +/- 40° vertical, +/- 20° horizontal

• Dual mode input/output HD15 connector for loop through or monitor connection

• Digital zoom and pan (max. x49)

• User-definable start-up screen

• Software lock for keypad or remote

• Front/rear/ceiling mount orientations

GRAPHICAL USER INTERFACE

• Easy set-up, on-screen display (OSD)

• Image aspect ratios: standard 4:3 or wide 16:9

• Menus in eleven languages

LAMP

• 200W lamp

• Lamp life of 1500 hours (typical)

POWER REQUIREMENTS

• 100 VAC to 240 VAC +/- 10% @ 50/60 Hz

• Power consumption: 300W maximum

• Thermal dissipation: 1025 BTU/hr

• Operating temperature: 40 to 95° F (5 to 35° C) [storage 14 to 140° F (-10 to 60° C)]

• Acoustic noise level: 34dBA

DIMENSIONS

• Weight: 6.2 lb (2.9 kg)

• Size: 11.7" W x 2.8" H x 8.4" L (298mm W x 71mm H x 214mm L)

STANDARD ACCESSORIES

• User manual

• HD15-DVI-I computer cable

• Mouse control cable (USB)

• Soft-sided carrying case

• AC cord x 2 (UL and European line cord)

OPTIONAL ACCESSORIES

• ChristieNET networking

• Lamp module

• Component to HD15 video cable

• Ceiling mount

• Shipping case

ANTI-THEFT SECURITY

• Compatible with Kensington Microsaver

REGULATORY APPROVAL

• UL/CSA/IEC 60950 (3rd edition)

• FCC Class A, CE, CCC (pending)

• This product conforms to all relevant European directives, standards, safety, health and environmental concerns

WARRANTY

• Limited 3 years parts and labor (excluding lamp)

• Lamp warranty 120 days or 500 hours (whichever comes first)
