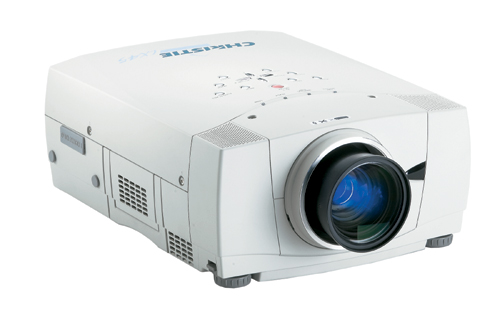

CHRISTIE DIGITAL LX45 XGA 4500 Lumens LCD Projector
(shown
with optional lens)
Click For Larger Image
OVERVIEW - Christie Digital LX45 LCD Projector
The full-featured, user-friendly LX45 lights up
your room with 4500 ANSI lumens, XGA resolution, multiple data/video
inputs, and multiple lens options. An amazing 1100:1 contrast ratio,
digital keystone correction, and the latest in progressive scan
video electronics means flawless performance with consistent image
quality in boardrooms, training rooms and small auditoriums. Short
and long throw lens options give users flexibility to place the
projector anywhere in the room while an intuitive user interface and
bayonet style lenses for easy lens changes enables fast setup out of
the box. The LX45 is a smart investment, offering AV professionals
needing high-quality integration, installation and rental projectors
a flexible solution.
FEATURES - Christie digital Lx45 XGA 4500 Lumens LCD Projector:
High brightness 4500 ANSI lumens and high contrast ratio up to 1100:1 for consistent image clarity for demanding video applications
Progressive-scan video decoding electronics with automatic 3:2 pulldown for crisp video reproduction
Lightweight and compact - portability for use as shared asset
XGA native resolution with scaling for VGA up to UXGA for connection to most computers/laptops
Flexible for set-up anywhere; easy to use with broad connectivity, a range of optional lenses, 31-400 inch diagonal image, power zoom, focus
Optical and digital keystone correction to place a perfect rectangular image anywhere
SPECIFICATIONS - christie digital lx45 lcd projector
Brightness
4500 ANSI Lumens
90% brightness uniformity
Contrast
Ratio
1100:1 on/off
Resolution
3 x 1.3" p-Si Active Matrix TFT LCD panels with Micro
Lens Array
True XGA 1024 x 768
8-bit color resolution offering 16.7 million displayable
colors
Dynamic
Scaling
Digital scaling of VGA to UXGA
Digital de-interlacing of STV, DTV and HDTV formats with
DDT technology
Horizontal
Frequency Range
15 to 100kHz
Vertical
Frequency Range
50 to 100Hz
Dot Clock
160MHz
Optional
Lenses
The LX45 is lens-less configuration; optional lenses
include:
Short throw fixed 0.8:1 lens
Short zoom 1.3-1.8:1 lens
Zoom 1.8-2.4:1 lens
Long zoom 2.4-4.3:1 lens
Ultra-long zoom 4.3-6.0:1 lens
Vertical
Lens Shift
From 10:0 (up) to 1:1 on axis
Inputs
Input 1: DVI-D (24-pin digital RGB) or HD15 (analog RGB
); audio input (stereo mini-jack)
