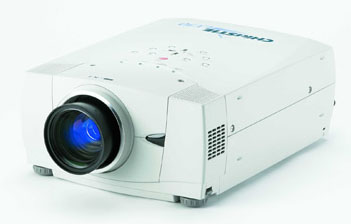

CHRISTIE DIGITAL LX50 XGA 5000 Lumens LCD Projector
Click For Larger Image
OVERVIEW - Christie Digital LX50 LCD Projector
The Christie LX50 is designed for powerful presentations - featuring
high performance, installation durability and ease of use.
With 5000 lumens, a 1200:1 contrast ratio and a full range of
optional lenses, the Christie LX50 offers bright, bold images with
the flexibility of a portable, sharable resource. Lens shift and
digital keystone correction place a perfect image; the wireless
remote operates as a wireless mouse, giving you flexibility and
freedom in any application.
The Christie LX50 - super bright compelling visual displays in a
compact projector.
FEATURES - Christie digital Lx50 XGA 5000 Lumens LCD Projector:
High brightness 5000 ANSI lumens with high 1200:1 contrast ratio
Progressive scan video decoding for signals from Standard Definition to HDTV
Range of optional lenses
FLC (Fast Lens Change) lens mount
Built-in color management
XGA native resolution with scaling for signals up to SXGA
SPECIFICATIONS - christie digital lx50 lcd projector
5000 ANSI lumens
90% brightness uniformity
Contrast ratio: 1200:1 full field
Display
Technology and Resolution
3-panel 1.3" LCD with MLA
Native XGA 1024 x 768 resolution
Input Signal
Compatibility
VGA through to UXGA (1600 x 1200)
Accepts and displays all currently known HDTV formats
(720p @ 60, 1080i @ 60, 1080i @ 50, 1035i)
Multi-standard video decoder
Horizontal and vertical scaling, all inputs
Scan Rates
Horizontal – 15 kHz to 100 kHz
Vertical – 50 Hz to 100 Hz
Pixel clock – 180 MHz
Inputs
DVI-D (digital, HDCP) and configurable input/output HD15
(analog)
5-BNC: RGBHV/YPbPr
Composite video, S-Video
USB type B
Mini-DIN 8-pin RS-232
Wired remote jack
Graphical
User Interface
Auto set-up feature
“Direct Access” intuitive user interface for complete
projector control in eleven world languages
Auto power-up feature
Optical
System
Vertical lens shift up to +/- 100% offset
Lamp
Ushio 300W NSH
1500 hours, typical
Power
Requirements
Line voltage 100 VAC to 240 VAC +/- 10% @ 50/60 Hz
Power consumption: 465W maximum
Operating current: 5.2A maximum @ 100 VAC; 2.6A maximum @
240 VAC
Operating
Environment
Temp: 40° F to 95° F (5° C to 35° C)
Humidity: 20%–80% (non-condensing)
Altitude: 0–8850ft (0–2700m)
Dimensions
Weight: 18.5 lb (8.4 kg)
Size: 16.9" L x 12.6" W x 6.6"D (429mm L x 320mm W x
168mm D)
Audible
Noise
35dBA (eco-mode)
Standard
Accessories
Wireless/wired remote with mouse control and laser
pointer (w/batteries, wired cable)
