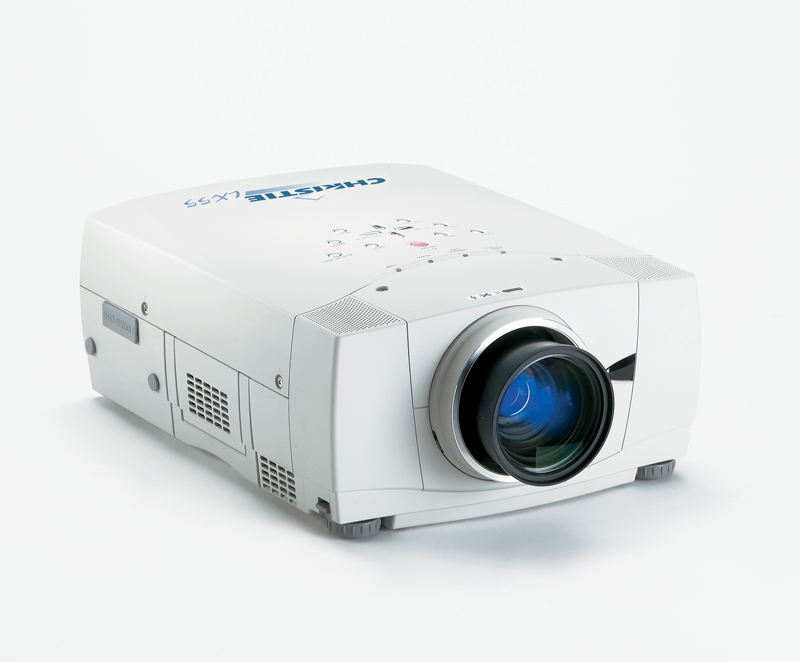

The Christie LX55 is a bright, compact LCD digital projector built with flexibility for presentation power. With 5,500 ANSI lumens and 1000:1 contrast, there’s brightness power for bold, detailed images in a package that suits low-profile installations.
High performance 10-bit image processing provides superb video reproduction from standard definition to HD video sources. A range of fixed and zoom lenses with throw ratios from 0.8:1 through to 6.0:1 gives the user installation flexibility – perfect for small auditoriums, large conference rooms and classrooms.
The new optical design with the latest LCD technology provides improved reliability. An optional long-life filter system reduces maintenance. Featuring motorized zoom, focus and lens shift and a Fast Lens Change (FLC) mount, the Christie LX55 is easy to set-up and easy to maintain. Optional ChristieNET provides networking through a TCP-IP network for control and preventative maintenance.
DETAILED SPECS - CHRISTIE
DIGITAL LX55 LCD PROJECTOR:
5500 ANSI lumens
90% brightness uniformity
Contrast ratio: 1000:1 full field
Display Technology
3 x 1.3" LCD panels
Native XGA 1024 x 768 resolution
Input Signal Compatibility
VGA through UXGA
Accepts and displays all currently
known HDTV formats (720p @ 60, 1080i @ 60, 1080i @ 50, 1035i)
Multi-standard video decoder
Horizontal and vertical scaling, all
inputs
Scan Rates
Horizontal – 15 kHz to 100 kHz
Vertical – 50 Hz to 100 Hz
Pixel clock - 180 MHz max
Inputs
DVI-D (digital, HDCP) and configurable
input/output HD15 (analog)
5-BNC: RGBHV/YPbPr
Composite video, S-Video
USB type B
Mini-DIN 8-pin RS-232
Wired remote jack
Graphical User Interface
Auto set-up feature
“Direct Access” intuitive user
interface for complete projector control in eleven world
languages
Auto power-up feature
Optical System
Vertical lens shift up to +100% offset
Lamp
300W UHP
1500 hours (typical) lifetime
Power Requirements
Line voltage 100 VAC to 240 VAC ± 10% @
50/60 Hz
Power consumption: 480W typical
Operating current: 4.74A maximum @ 100
VAC; 1.86A maximum @ 240 VAC
Operatiing Environment
Temp: 40 to 95° F (5 to 35° C)
Humidity: 20 -80% (non-condensing)
Altitude: 0-8850ft (0-2700m)
Dimensions
17.4 lb (7.9 kg)
16.9 L x 12.6 W x 6.6" D
429 L x 320 W x 168mm D
Audible Noise
38dB (normal operation)
Standard Accessories
Wireless/wired remote with mouse
control and laser pointer (wired cable)
