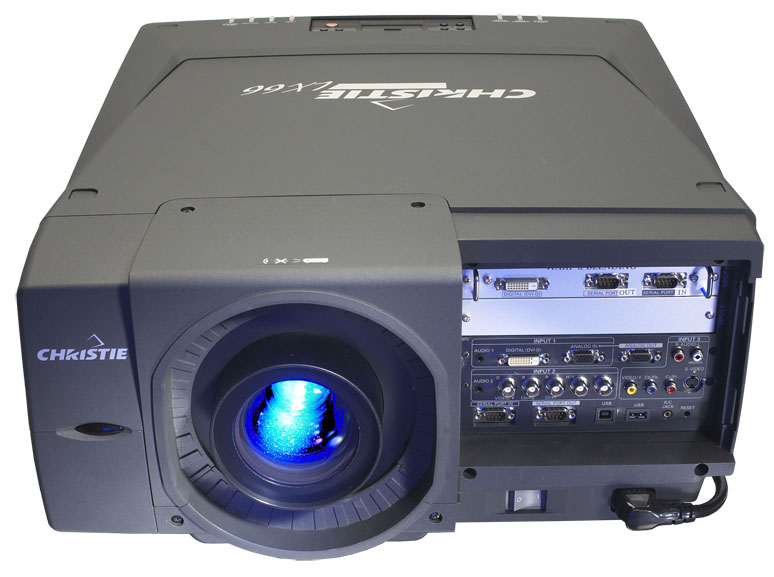

CHRISTIE DIGITAL LX66 XGA 6600 Lumens LCD Projector
Click For Larger Image
OVERVIEW - Christie Digital LX66 LCD Projector
The Christie LX66 makes powerful presentations easy to achieve with
high brightness, high contrast images, and options for every
application.
With 6500 lumens and 1300:1 contrast ratio, a full range of
optional lenses and input modules, the Christie LX66 offers the
broadest range of installation and operational flexibility in its
class.
State-of-the-art high bandwidth electronics support signals up to
UXGA and video up to 1080i. Latest 10-bit video processing
reproduces images flawlessly. New standard input modules include
on-board edge-blending and image warping for the ultimate dynamic
displays.
FEATURES - Christie digital Lx66 XGA 6600 Lumens LCD Projector:
6500 ANSI lumens maximum
2-lamp system-dual/single lamp mode for maximum brightness, failsafe operation
True XGA resolution (1024 x 768)
1300:1 contrast ratio - for finely detailed images, effortlessly
New standard input modules include on-board edge-blending and warping
Flexible digital connectivity-wide range of standard inputs, optional interface cards
SPECIFICATIONS - christie digital lx66 lcd projector
6500 ANSI Lumens (Dual Lamp)
3250 ANSI Lumens (Single Lamp)
90% brightness uniformity
Contrast: 1300:1 full field
Display
Technology and Resolution
3-panel 1.4" LCD
Native XGA 1024 x 768 resolution
Input Signal
Compatibility
VGA through to UXGA (1600 x 1200)
Accepts and displays all currently known HDTV formats
(720p@60, 1080i@60, 1080i@50, 1035i)
Multi-standard video decoder
Horizontal and vertical scaling all inputs
Scan Rates
Horizontal - 15 to 120 kHz
Vertical - 50 to 120 Hz
Pixel clock - 230 MHz
Inputs
DVI-D (digital) and HD15 (analog)
5-BNC: RGBHV/YPbPr
Composite video, S-video
USB type A and B<
DB9 RS-232
Wired remote jack
Graphical
User Interface
Auto Set-up feature
"Direct Access" intuitive user interface for complete
projector control in 11 world languages
Auto power up feature
Lens Mount
Motorized horizontal (+/- 20%) and vertical (+/- 100%)
offset
Built-in light shutter
Lamp
Dual 300W lamps
1,500 hours typical life
Power
Requirements
Line voltage 100V AC to 240V AC +/- 10% @ 50/60 Hz
Power consumption: 950W maximum
Operating current: 9.5A maximum @ 100V AC; 4.5A maximum
@240V AC
