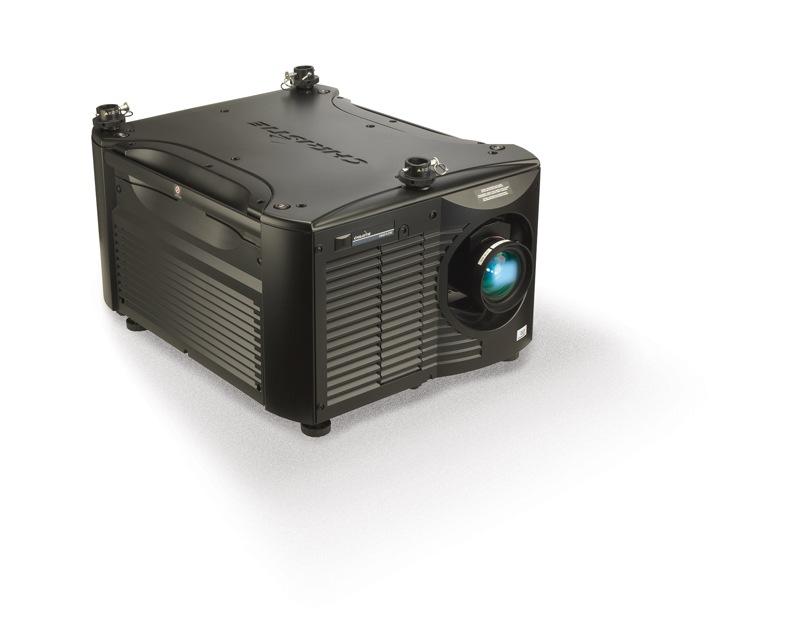

Christie ROADSTERHD12K Dlp Video Projector christie roadster

KEY POINTS - RoadsterHD12K Christie HD 12000 ANSI Lumens 3-Chip Digital DLP Projector:

True HD native resolution (1920 x 1080)

12,000 ANSI lumens brightness

1500-2000:1 contrast ratio enabling highly enhanced image detail, with blacker blacks and whiter whites

True 10-bit image processing offers high-bandwidth signal processing

Built-in stacking and rigging

Xenon Bubble lamp system provides repeatability of photo-realistic colors and ability to accurately color-match images

2 High Definition input channels that allow 4:4:4 HD signals

DMX 512 communication capabilities

SUMMARY - Christie roadsterhd12k HD 12000 ANSI Lumens 3-Chip Digital DLP Projector:

The Christie Roadster HD12K DLP Projector offers high resolution, crisp images from 10-bit processing combined with an HD platform – the next level of unparalleled presentation power. The first-ever native HD resolution 3-chip DLP 12,000 lumen digital projector utilizes Xenon illumination – the pinnacle of image color accuracy and adjustability in easy to use, flexible packages.

The Christie Roadster HD12K 1920 x 1080 native resolution and a variable contrast ratio of 1500-2000:1 for crisp, detailed images. Next generation DLP technology, high-quality optics and proven 10-bit image processing deliver exceptional image quality.

The Roadster HD12K features high-quality lenses specifically designed to increase image sharpness and provide manual contrast adjustment for impeccable control over your images. This model also features standard built-in edge-blending, two HD input channels that will also allow 4:4:4 signals, digital dark level adjustment, Intelligent Lens System on zoom and focus, and DMX 512 communication capabilities.

DETAILED SPECS - CHRISTIE DIGITAL ROADSTER HD12K DLP PROJECTOR:


12,000 ANSI lumens (+/- 10%)
90% brightness uniformity across the screen

Contrast

1500-2000:1 full field

Display Technology and Resolution

3-chip 0.95" Darkchip3 DMD
True HD 1920 x 1080 resolution

Input Signal Compatibility

VGA through to QXGA (2048 x 1536)
Accepts all current HDTV/DTV formats
Multi-standard video decoder
Horizontal and vertical scaling, all inputs

Scan Rates

Horizontal - 15 kHz to 120 kHz
Vertical - 23.97 Hz to 150 Hz

Inputs, Control and Networking

RGBHV/YPbPr via 5 BNC
DVI-I - digital/analog RGB/YPbPr (HDCP)
One composite video, one S-Video
Two option slots for analog/digital modules
3 RS-232 ports and 1 RS-422 port
On-board ChristieNET connectivity (RJ45)
Built-in backlit keypad and IR remote control

Graphical User Interface

Auto set-up, power-up feature
Menus in five languages
On-screen help
50 channel memories
Optional image warping
Built-in edge-blending
Comprehensive Color Adjustment (CCA)

Lens Mount

Motorized horizontal and vertical offset
Tool-free lens insertion system
Tilt adjustment

Lamp

2.0kW Cermax Xenon pre-aligned lamp module
1000 hours (typical) lifetime
User-replaceable bulb

Light Output Control (LITELOC)

"Auto Brightness" (Intensity), "Lamp Conserve" (Power), "Max Brightness" modes
Built-in light shutter

Power Requirements

200 VAC to 240 VAC +/- 10% @ 50/60 Hz
Power consumption: 3000W maximum
Thermal dissipation: 10,236 BTU/hr
Operating current: 15A @ 200V

Dimensions

Weight: 135 lb (61.4 kg) (excludes lens, feet, stacking points)
Shipping weight: 160 lb (72.7 kg) (excludes lens, feet, stacking points)
Size: 24.5" W x 32.1" L x 15.1" H (631.4mm W x 814.8mm L x 384mm H) (excludes lens, feet, stacking points)

Standard Accessories

IR keypad (w/batteries)
Line cord
User manual
Dual SD/HD-SDI module

Optional Accessories

Fixed lenses (HD): 0.67:1, 1.15:1
Zoom lenses (HD): 1.28-1.84:1, 1.84-2.58:1, 2.58-4.14:1, 4.14-6.7:1
Fixed lenses (SXGA+): 0.73:1, 1.2:1
Zoom lenses (SXGA+): 1.45-1.8:1, 1.8-2.5:1, 2.5-4.5:1, 4.5-7.3:1
Manual "Legacy" lens mount
ChristieTWIST Image Warping and Edge-Blending module
Input modules - Dual SD/HD-SDI, DVI and legacy interface modules
Wired remote control and RS-422 two Way Controller
Remote IR sensor
ChristieNET WAVE
Ethernet, RS-232, RS-422 cables
Service manual
KoRE 10-bit librarian
Lens adapter (for competitive lenses)

Operating Environment

Temp: 40 to 95° F (5 to 35° C)
Humidity: 20 - 80% non-condensing

Regulatory Approvals

UL/CSA/IEC 60950 (3rd edition)
FCC Class A, CE, CCC (pending)
This product conforms to all relevant European directives, standards, safety, health and environmental concerns

Warranty

2 years parts and labor (including light engine)
