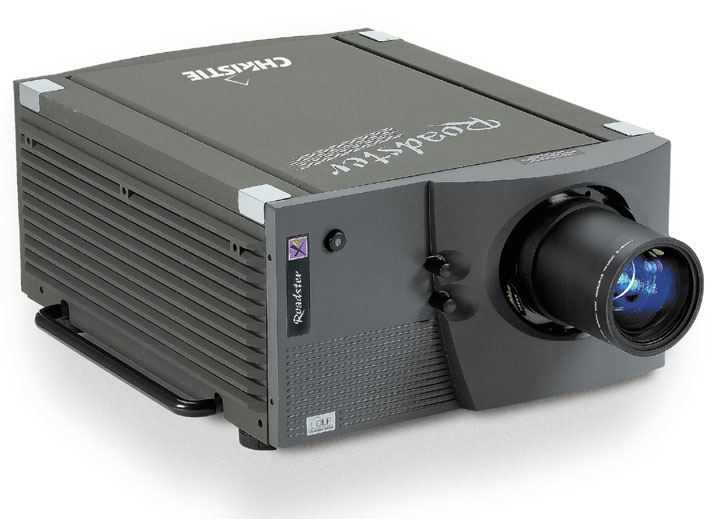

CHRISTIE DIGITAL ROADSTERX9 XGA 8500 Lumens DLP Projector
Click For Larger Image
OVERVIEW - Christie Digital Roadster X9 DLP Projector
Powerhouse brightness and flexibility in a portable package - a
staggering 8500 ANSI lumens - makes the X9 the brightest and most
cost-effective XGA projector in its class. With exceptional image
clarity and color uniformity, the X9 is a portable presentation
power that excels in the most challenging environments. A unique
self-adjusting power supply minimizes lamp fade over time, ensuring
superior performance and reduced operating costs. ILS, LiteLOC, and
image offset offer a greater range of control, projector positioning
and projector angles for onsite flexibility and ease of integration
into any application.
FEATURES - Christie digital Roadster x9 XGA 8500 Lumens DLP Projector:
8500 ANSI lumens
True XGA resolution (1024 x 768)
Pixel clock 160MHz
LiteLOC constant brightness feature
HDTV and DTV compatible
Modular architecture
Intelligent Lens System (ILS)
Ruggedized design
Advanced inverse telecine (3:2 pull down) digital processing
5 ft to 40 ft + diagonal image size
Optional 10-bit video processing
SPECIFICATIONS - christie digital roadster x9 dlp projector
Brightness
8500 ANSI lumens (+/- 10%)
90% brightness uniformity across the screen
Contrast
Ratio (1.5-2.2:1 zoom lens)
350:1 ANSI, 550:1 on/off
Resolution/Digital Processing
3-chip 0.9" DMD, (Dark Chip) system
True XGA 1024x768 chip resolution
13 bit user selectable gamma table
More than 1 billion displayable colors
Dynamic
Scaling
Resizing capabilities to scale down from 1600 x 1200 and
up from 640 x 480 to the SXGA resolution of DMD
Independent horizontal and vertical scaling adjustment
for graphics and video inputs
Horizontal
Frequency
15 to 120 kHz
Vertical
Frequency
24 to 120 Hz
Field
Interchangeable Optional Lenses
Fixed short throw lens 1.2:1
Zoom lenses: 1.5-2.2:1, 2.2-4:1 and 4-7:1
Up to 130% of vertical lens offset for off-axis
projection (using a 2.5-4:1 lens)
Up to 80% of horizontal lens offset (using a 2.5-4:1
lens)
Compatibility with VistaGRAPHX lenses: 0.8:1, 2.5-4:1,
4-7:1 (adapter required)
Screen size: 5' - 40' + (1.8m - 12.2m) diagonal
Lens Mount
Motorized horizontal and vertical lens offset, focus and
zoom adjustments
Lens "bayonet-style" insertion system
Lens mount tilt adjustment
Built-in light shutter
Inputs
Built-in RGB/YUV/YPbPr inputs allowing separate H and V
syncs, tri-level sync, composite sync and sync-on-green/luma
(5 BNC connectors)
Multi-standard (NTSC, NTSC44, PAL, PALM, PALN, SECAM)
video decoder module provides 1 composite video input w/ loop
through via BNC&RNA connectors, 1 S-video input w/ loop
through via 4-pin DIN&BNC connectors
Slot for an optional input module
Full compatibility with Marquee Signal Switcher and
third-party switchers
HDTV/DTV
Compatibility
Full HDTV/DTV compatibility on analog RGB/YPbPr inputs
Accepts 480i, 480p, 576i, 576p, 720p, 1035i, and 1080i
formats at all applicable frame/field rates
Accepts 1080p at 24, 25 and 30 Hz frame rates
Optional HDTV Serial Digital Input Module
Various
Keypads
Standard hand-held IR backlit remote keypad
Front and rear infrared sensors
Built-in backlit keypad
Optional RS422 two-way remote controller with LCD display
using 6 pin XLR connector with range of 3000 ft
Optional wired backlit remote keypad with 3 pin XLR
connector
Control/Networking
Third party control system and switcher compatibility
Dual RS232 ports for computer control, with loop through
for connection of multiple projectors
Dual 6-pin XLR RS422 ports for connection of optional LCD
two-way controllers and loop-through to multiple projectors
up to 3000ft
ChristieNET compatible
Diagnostics
Built-in LCD diagnostic display indicates operational
status and error messages
Power and Status LED
Full diagnostics through RS232 9 pin D connector
Graphical
User Interface
Auto Set-up feature
"Direct Access" intuitive user interface for complete
projector control in 5 world languages
On screen user movable menus to fit different image
aspect ratios (4:3, 5:4, 16:9, etc.)
On screen help menus
100 channel memories
Auto power feature
Lamp
Specification/Color Temperature
1500W CERMAX Xenon illumination system
Pre-aligned lamp module
Constant color temperature over the lamp life
Color temperature range 3200K to 9300K
User replaceable lamp within 5 minutes
Typical lifetime: 1000 hours
Variable
Lamp Power Supply/Light Output Control (LiteLOC)
"Auto Brightness" mode to maintain constant brightness
over time
"Lamp Conserve" mode to extend the lamp life
"Max Brightness" mode for maximum light output
Power
Requirements
Line voltage 220 VAC to 240 VAC +/- 10% @ 50/60 Hz
Power consumption: 2200W maximum
Thermal dissipation: 7250 BTU/hr
Operating current: 12A maximum
Weight and
Size
92 lbs. (41.8kg)
56.6 cm W x 76.5 cm L x 30.2 cm H excluding handles
22.28" W x 30.1" L x 11.88" H excluding handles
Standard
Accessories
IR remote keypad with batteries
User's Manual
Eye bolt kit
Optional
Accessories
Serial Digital Input (SMPTE 259M/CCIR 601) with
loop-through feature
Digital HDTV Input module (with loop-through feature)
compatible with all known HDTV formats
DVI/DFP Input module
10-bit ADP (Advanced Digital Processing) module
Wired remote keypad
RS422 two-way remote LCD controller
Replacement lamp module
Remote infrared sensor
Service manual
Librarian communication software
Arbitrary Gamma software for user-definable gamma tables
MIL-STD ruggedized transit case
Stacker kit
Regulatory
Approvals
CSA/UL EN60950
FCC and CISPR 22 class A, EN50024 EMI/EMC approvals
Warranty
Product warranty: 2 years parts and labor (excluding
lamp)
One year on projector light engine
Accessories: one year
Extended warranty available
Third Party
Test Criteria
ISTA, IEC 60068-2-64 , ASTM D4169-96, MIL STD 810F
(Shipping Vibration & Shock, while in Christie Digital
Systems Transit Case)
