| Da-Lite Imager
Home Theater Projection
Screen
All Prices Include Free Shipping
If you are unable to find the screen or size
you are looking for feel free to call us and speak with one of our Specialists about a custom screen. Back
to Da-Lite Fixed Wall Screens Main
|
|
Click for Larger Image
|
|
| Back
To Top |
|
OVERVIEW
- da-lite imager projection display
Fixed wall screens are the
perfect choice for a dedicated theater because they provide a perfectly flat viewing surface.

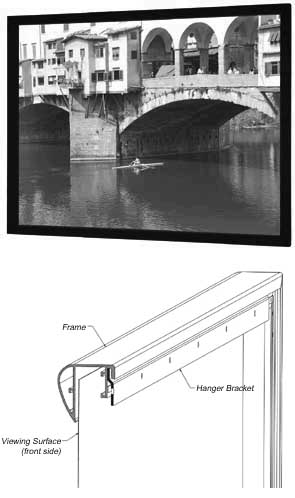

The Imager features a specially designed frame system. The use of an inner frame to secure
the viewing surface with an outer frame that is beveled, allows the viewing surface to
be closer to the screen border. The Imager frame has a standard matte black frame. A Pro-Trim
(LAVS) finish can also be ordered for additional light absorption. This model is available
in custom sizes with Da-Mat, High Contrast Da-Mat, Cinema Vision, High Contrast Cinema
Vision, Pearlescent or Audio Vision viewing surfaces. Specially designed wraparound models
are also available upon request.
- Perfectly flat, permanent
wall-mounted screen ideal for video projection.
- Projection Fabric is attached
to the frame by Velcro.
- Black powder coated aluminum
frame provides a sleek black masking border.
- Frame available with Pro-Trim
finish for an additional charge. Pro-Trim is a fabric frame covering that aesthetically
enhances the appearance of the installation while absorbing light that surrounds the
viewing area.
- Custom sizes also available.
- Da-Mat, High Contrast
Da-Mat, Da-Tex, Pearlescent, Cinema Vision and Dual Vision fabrics up to and including
12' high will be seamless.
- Audio Vision fabric up
to and including 6' high will be seamless.
|
| Back
To Top |
|
SCREEN FORMATS
- Da-Lite Imager
|
HDTV Format
Viewing Area
H x W
|
Nominal
Diagonal
|
Screen
Fabric |
|
in.
|
cm.
|
in.
|
cm.
|
Da-Mat
|
High
Contrast
Da-Mat
|
Da-Tex (Rear)
|
Pearle-
scent
|
Cinema Vision
|
Dual Vision
|
Audio Vision
|
|
45" x 80"
|
114 x 203
|
92"
|
234
|
|
|
|
|
|
|
|
|
52" x 92"
|
132 x 234
|
106"
|
269
|
|
|
|
|
|
|
|
|
54" x 96" |
137 x 244 |
110" |
279 |
 |
|
|
|
|
|
|
|
58" x 104"
|
147 x 264
|
119"
|
302
|
|
|
|
|
|
|
|
|
65" x 116"
|
165 x 295
|
133"
|
338
|
|
|
|
|
|
|
|
|
78" x 139"
|
198 x 353
|
159"
|
404
|
|
|
|
|
|
|
|
Back
To Top
|
Video Format
Viewing Area
H x W
|
Nominal
Diagonal
|
Screen
Fabric |
|
in.
|
cm.
|
in.
|
cm.
|
Da-Mat
|
High
Contrast
Da-Mat
|
Da-Tex (Rear)
|
Pearle-
scent
|
Cinema Vision
|
Dual Vision
|
Audio Vision
|
|
36" x 48"
|
91 x 122
|
60"
|
152
|
|
|
|
|
|
|
|
|
43" x 57-1/2""
|
109 x 146
|
72"
|
183
|
|
|
|
|
|
|
|
|
50-1/2" x 67"
|
128 x 170
|
84"
|
213
|
|
|
|
|
|
|
|
|
57-1/2" x 77"
|
146 x 196
|
96"
|
244
|
|
|
|
|
|
|
|
|
60" x 80"
|
152 x 203
|
100"
|
254
|
|
|
|
|
|
|
|
|
72" x 96"
|
183 x 244
|
120"
|
305
|
|
|
|
|
|
|
|
|
90" x 120"
|
229 x 305
|
150"
|
381
|
|
|
|
|
|
|
|
Back
To Top
|
Download Product
Specs: Imager
Manufacturer Homepage: www.da-lite.com
|
