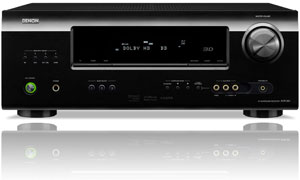

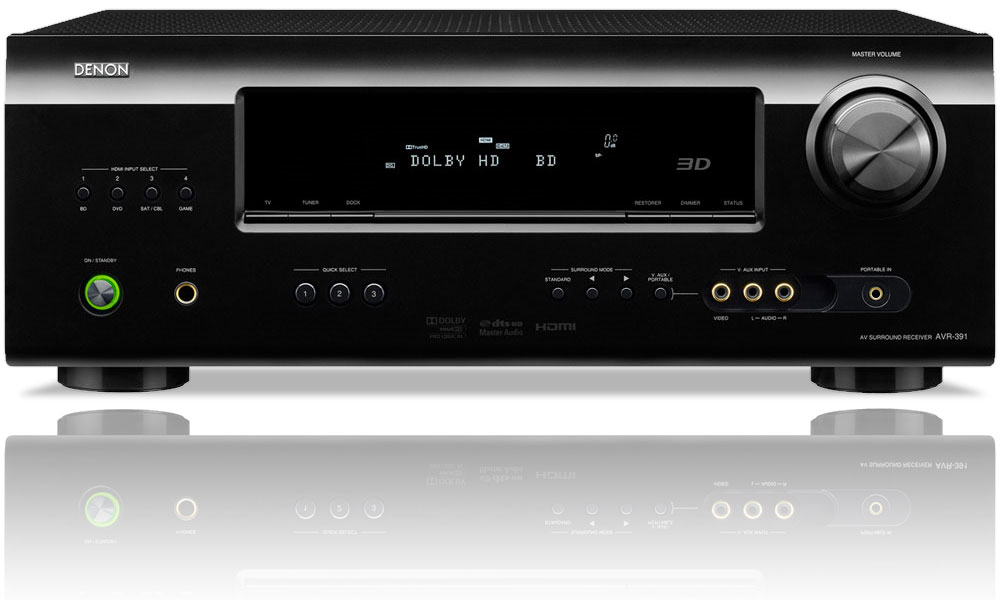

Denon AVR391 5.1 Surround Sound Receiver with iPod connectivity

KEY POINTS - Denon avr391 5.1 surround sound receiver with ipod connectivity:

HDMI 1.4a Includes 3D Blu-ray Compatibility
Equipped with 4 HDMI inputs, the AVR-391 includes the latest HDMI 1.4a specification, with support for 3D pass-through (Broadcast and Blu-ray).

Quality Discrete Power Amplifier Section
The equal power amp design features 5 matched discrete power amp circuits, and each channel is rated at 75 watts (8 ohms, 20 Hz to 20 kHz, .08% THD).

3.5mm Front Panel Audio Input Jack
To fully enjoy your favorite portable audio tracks, the AVR-391 features a convenient 3.5mm stereo audio jack on the front panel, allowing quick and easy connection to your portable audio device. And, the AVR-391 features Denon’s exclusive Compressed Audio Restorer function, which completely re-constructs the full audio frequency range, restoring lost high frequency detail for the most natural and believable tonal balance.

SUMMARY - Denon avr391 5.1 Surround Sound Receiver with iPod connectivity:

The Denon AVR-391 is an entry-level Home Theater receiver that provides High Resolution surround sound and is capable of handling HDMI 1.4a inputs with 3D Blu-ray compatibility. It also comes with a front panel 3.5mm audio input jack that allows connections to portable audio devices. With these and other features, the Denon AVR-391 provides high quality at an excellent price.

DETAILED SPECS - DENON AVR-391 5.1 SURROUND SOUND RECEIVER WITH IPOD CONNECTIVITY:

GENERAL
Availability	July 2010
Finish	Black
Power Output; Watts Per Channel	75
All Channels Rated @ 0.05 THD
All Channels Rated @ 0.08 THD
Weight: In Pounds	20.3
Width (inches)	17.1
Height (inches)	6.7
Depth (inches)	15
SOUND MODES
THX Ultra2-Certified
Dynamic Discrete Surround Circuit – D.D.S.C - D
Processor(s) – Bit Depth and Type	CS497024 x 1 Dual 32-bit Fixed Point
Dolby Pro Logic IIx – with Cinema, Music, Game Modes
THX Post-Processing – DPL (4.0), DPL2 Cinema, DD/DTS (5.1), ES Discrete (6.1), ES Matrix, Neo:6 Cinema
THX Ultra2 7.1 Cinema, Music and Game Modes
THX Surround EX Decoding
Dolby Digital Plus
Dolby Digital Surround EX Decoding
Dolby Digital Pro Logic II
dts ES Discrete 6.1 Decoding
dts ES Matrix 6.1 Decoding
dts Neo:6 Stereo-to-Surround Cinema and Music Modes
dts 96/24 5.1 for DVD-Video Processing
Dolby Headphone
HDCD Decoder
Audio Signal Delay (Sync. Audio with Video signal) – By source
Pure Direct/Direct/Stereo Modes on Digital/Analog inputs
Stereo/Direct Modes w/Pure Analog Path
5-Channel Stereo Mode
5-Channel Equal Power
Video Game Mode
Wide Screen 7.1 Mode
Mono Movie Surround Mode
Rock Arena Surround Mode
Matrix Surround Mode
Jazz Club Surround Mode
Virtual Surround Mode – For 2 Speakers/Headphones
Multi-Channel Stereo Mode
DSP Effect Modes	2
Auto Surround Mode (Analog or Digital Input Type)
Active Center Channel In All Surround Modes
Dynamic Discrete Surround Circuit - Digital HD
Dolby TrueHD and Dolby Digital+
dts-HD Master Audio
MP3 Decoding
WMA Decoding
HD Radio
XMHD
Neural Surround Mode XMHD
CONNECTIVITY
True 24-bit/96-kHz Digital Input Capability
True 24-bit/192-kHz Digital Input Capability (Denon Link & 1394)
Assignable Digital Inputs	2
Digital Input – DENON Link 3rd (SACD Ready)
IEEE-1394 Digital Audio Input/Output
Digital Inputs: Coaxial	1
Digital Inputs: Optical	1
Digital Outputs: Optical
Digital to Analog REC Out
Analog Audio Inputs, Incl. Tuner	5
Phono Input
Source Function Renaming
Analog Record Outputs
Front Panel A/V Inputs w/Cover * Composite and S-Video
Video Conversion –Composite to S-Video to Component
Video Conversion – Composite to S-Video to Composite
Video Conversion – Analog to HDMI
DVI/HDMI Video Inputs – Compatible with 1.1 Spec. – Multi-Channel Audio
HDMI Video Outputs *1080p
Composite Video Inputs	3 Incl. Front
Composite Video Outputs	1
S-Video Inputs	1 x Dock
S-Video Outputs
Component Video Inputs x Bandwidth - *Assignable
Component Video Outputs
6-Ch. External Analog Input
8-Ch. External Analog Input
Banana Plug Speaker Terminals, All Channels	Front L/R only
Cinema EQ
Front A/B Speaker Selector
56 Station Auto-Preset Memory Tuning
Radio Data System (RDS)
XM Satellite Radio 'Connect and Play' Ready – with optional antenna
Sirius Ready
Rhapsody
Direct Function (Tone Bypass)
Volume Control Un-muting
Selectable Muting Levels (Full/-40/-20)
Video Select Control
RS-232 Port – Third Party Remote Controllers
RJ-45 Ethernet Port – Same Functionality as AVR-5805/4806
PC Setup and Control Capability
IR Serial Remote In/Out terminals
+12v Trigger Output - Assignable
Multi-Source/Multi-Zone (*Uses REC OUT)
Pre-amp Outputs for Multi-Zone
High Pass Filter for Multi-Zone Outputs
Multi-Zone Pre-Amp Outputs – Selectable Output Levels
Discrete Multi-Zone Composite Video Output - *S-Video also
Discrete Remote Power On/Off, Source Selection and Volume for Main and Second/Third* Zones
Discrete Remote Source Selection for Zone 3
Assignable Amplifier Configuration of Surround Back Channels
Speaker Time-Delay and Level Controls: L/R, Sub, C, Surr. L/R, Surround Back
Pre-Amp Outputs	Surround Back L, Surround Back R, Sub
Internet Radio
iPod Port (Using optional AKP-100 cable)
iPod Dock Control Port (Using optional ASD-1R Denon iDock)	ASD-11R/ASD-51N/ASD-51W
USB Flash Drive Port
Pre Labled Assignable Digital Inputs
BNC Digital Inputs - Audio & Video
Digital to Analog Conversion Multi Zone Outputs
XLR Analog Input
XLR Analog Output
Input Delete Function
Front Panel AV Inputs Inside Panel Composite & S-Video
S-Video Down Conversion 2nd Zone
Video Conversion Analog to HDMI Scaling 480p 720p 1080i 1080p
Faroudja DCDi Video Processing and Scaling FLI2310
Silicon Optix Realta HQV Processing and Scaling
HDMI Video Output v1.1 Spec 1080p
HDMI 1.3a Inputs	4 x 1.4a
HDMI 1.3a Outputs	1 x 1.4a
HDMI Audio/Video Repeater Function
HDMI Video Switching Function
HDMI Deep Color Support-36Bit
HDMI xvYCC Color Space Support
HDMI SACD Support
Component Video Output 2nd Zone
10-Ch External Analog Input
Enhanced Power Amp Assignment
Builtin WiFi Connectivity WiFi B/G certified
Network Enabled
USB Port with HDD Support
HQV
COMPONENT TECHNOLOGY
Equal Power Amplifiers	Y/5 Ch
Low Impedance Drive Capability
High-Current/Discrete Amplifiers
Independent Power Supplies
Pure Audio Construction
Toroidal Power Transformer
Dolby Digital, dts and DSP Modes – Analog Devices, HammerHead SHARC
Dolby Digital, dts and DSP Modes – Texas Instruments Aureus
AL24 Processing - All Channels
24-bit/192-kHz DACs – Burr-Brown PCM-1791
24-bit/192-kHz DACs - Analog Devices	Cirrus 24-bit/192-kHz CS42528
Analog-to-Digital Conversion - Bit Depth/Sampling Rate	24-bit/96-kHz
Variable High/Low Pass Crossover Points (12/24dB) 40/60/80/100/120/150/200/250
Built In Time Based Correction
Advanced AL24 Processing Multi Channel
Automatic Lip Sync
HD Radio Tuner Built-in
CONVENIENCE FEATURES
Front Panel A/B Speaker Selector
Auto Setup Calibration
Auto/Manual Room Equalization	-
Audyssey MultEqxt Room Eq. with up to eight position setup
Audyssey MultEQ
Audyssey Dynamic Volume
Auto Setup Microphone Included/Type
Dual Surround Mode Spkr. Selector
Icon-Based On-Screen Display
Front Panel System Setup Control
Personal Memory Plus
System Setup/Surround Parameters Lockout
Relay-Controlled Protection Circuits
Microprocessor User Re-set	Y/p. 51
Detachable Power Cord
Subwoofer Peak-Level Limiter (THX)
Pre-programmed (10 Devices) Glow Key Remote Control with Punch Through Commands
Pre-programmed/Learning EL Remote with Backlighting and Punch Through Commands
Audyssey MultEQ XT Room Correction with up to eight position setup
Audyssey Mult EQ Room Correction Positions
Audyssey Mult EQ Pro CalibrationCompatible/Installer Ready
GUI Menu Support

Manufacturer Page: www.usa.denon.com
