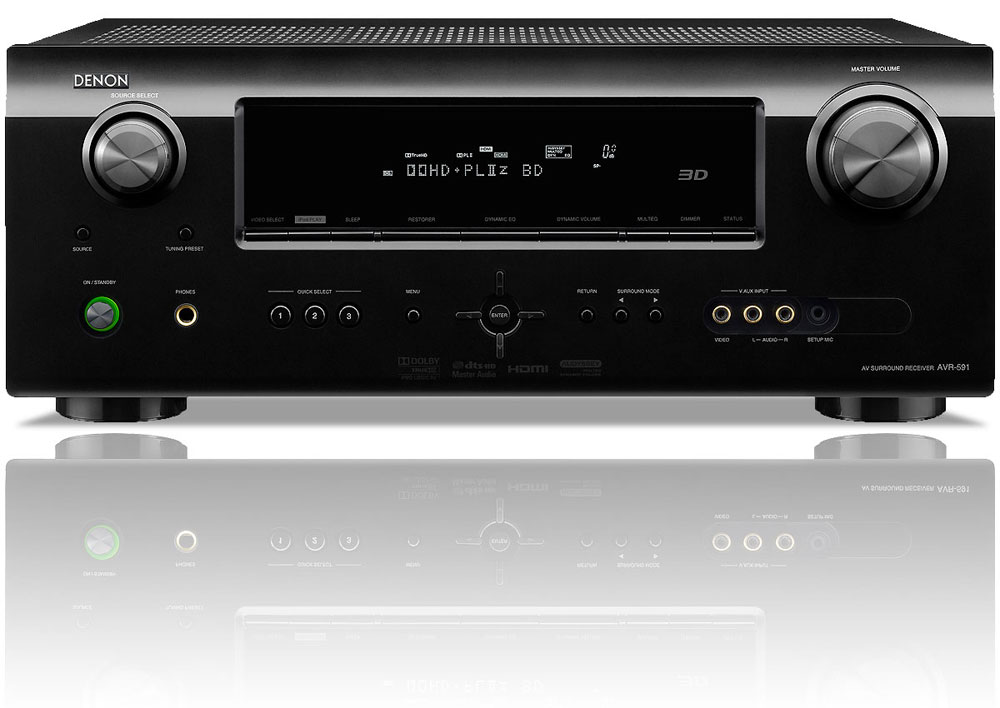

Denon AVR591 5.1 3D Ready Surround Sound Receiver

KEY POINTS - Denon avr591 5.1 3d ready surround sound receiver:

HDMI 1.4a Includes 3D Blu-ray Compatibility
Equipped with 4 HDMI inputs, the AVR-591 includes the latest HDMI 1.4a specification, with support for 3D pass-through (Broadcast and Blu-ray) and Audio Return Channel. Analog video inputs are upconverted to HDMI, allowing a single cable run to the TV, minimizing expensive cable costs.

Easy Setup With Automatic Room Acoustic Correction
Audyssey MultEQ dynamic room acoustic correction system features a microphone (included) to automatically measure the speaker configuration and provide acoustic tailoring for the best surround sound experience. Dynamic Volume helps eliminate jarring volume jumps during commercials, and Dynamic EQ provides a rich tonal balance at any volume level.

Quality Discrete Power Amplifier Section
The equal power amp design features 5 discrete power amp circuits, and each channel is rated at 75 watts (8 ohms, 20 Hz to 20 kHz, .08% THD).

SUMMARY - Denon avr591 5.1 3D Ready Surround Sound Receiver:

The Denon AVR-591 is a powerful receiver with 5 channel x 75 watts amplifier section. It comes equipped with the latest HDMI 1.4a technology, which is compatible with 1080p (24 frames per second) and 3D video inputs. For sound, the Denon AVR-591 supports the latest formats such as Dolby TrueHD and DD+, dts-HD and dts-HR. In addition to these features, the Denon AVR-591 features analog to HDMI signal conversion and ipod connectivity.

DETAILED SPECS - DENON AVR-591 5.1 3D READY SURROUND SOUND RECEIVER:

GENERAL
Availability	June 2010
Finish	Black
Power Output; Watts Per Channel	75
All Channels Rated @ 0.05 THD
All Channels Rated @ 0.08 THD
Weight: In Pounds	22.5
Width (inches)	17.1
Height (inches)	6.7
Depth (inches)	15
SOUND MODES
THX Ultra2-Certified
Dynamic Discrete Surround Circuit – D.D.S.C - D
Processor(s) – Bit Depth and Type	21367 x 1 32-bit Floating Point
Dolby Pro Logic IIx – with Cinema, Music, Game Modes
THX Post-Processing – DPL (4.0), DPL2 Cinema, DD/DTS (5.1), ES Discrete (6.1), ES Matrix, Neo:6 Cinema
THX Ultra2 7.1 Cinema, Music and Game Modes
THX Surround EX Decoding
Dolby Digital Plus
Dolby Digital Surround EX Decoding
Dolby Digital Pro Logic II	PLIIz
dts ES Discrete 6.1 Decoding
dts ES Matrix 6.1 Decoding
dts Neo:6 Stereo-to-Surround Cinema and Music Modes
dts 96/24 5.1 for DVD-Video Processing
Dolby Headphone
HDCD Decoder
Audio Signal Delay (Sync. Audio with Video signal) – By source
Pure Direct/Direct/Stereo Modes on Digital/Analog inputs
Stereo/Direct Modes w/Pure Analog Path
5-Channel Stereo Mode
5-Channel Equal Power
Video Game Mode
Wide Screen 7.1 Mode
Mono Movie Surround Mode
Rock Arena Surround Mode
Matrix Surround Mode
Jazz Club Surround Mode
Virtual Surround Mode – For 2 Speakers/Headphones
Multi-Channel Stereo Mode	5/6/7
DSP Effect Modes	7
Auto Surround Mode (Analog or Digital Input Type)
Active Center Channel In All Surround Modes
Dynamic Discrete Surround Circuit - Digital HD
Dolby TrueHD and Dolby Digital+
dts-HD Master Audio
MP3 Decoding
WMA Decoding
HD Radio
XMHD
Neural Surround Mode XMHD

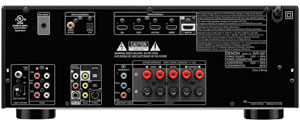

CONNECTIVITY
True 24-bit/96-kHz Digital Input Capability
True 24-bit/192-kHz Digital Input Capability (Denon Link & 1394)
Assignable Digital Inputs	2
Digital Input – DENON Link 3rd (SACD Ready)
IEEE-1394 Digital Audio Input/Output
Digital Inputs: Coaxial	1
Digital Inputs: Optical	1
Digital Outputs: Optical
Digital to Analog REC Out
Analog Audio Inputs, Incl. Tuner	5
Phono Input
Source Function Renaming
Analog Record Outputs
Front Panel A/V Inputs w/Cover * Composite and S-Video
Video Conversion –Composite to S-Video to Component
Video Conversion – Composite to S-Video to Composite
Video Conversion – Analog to HDMI
DVI/HDMI Video Inputs – Compatible with 1.1 Spec. – Multi-Channel Audio
HDMI Video Outputs *1080p
Composite Video Inputs	3 Incl. Front
Composite Video Outputs	1
S-Video Inputs	1 x Dock
S-Video Outputs
Component Video Inputs x Bandwidth - *Assignable	1 x 60 MHz
Component Video Outputs
6-Ch. External Analog Input
8-Ch. External Analog Input
Banana Plug Speaker Terminals, All Channels
Cinema EQ
Front A/B Speaker Selector
56 Station Auto-Preset Memory Tuning
Radio Data System (RDS)
XM Satellite Radio 'Connect and Play' Ready – with optional antenna
Sirius Ready
Rhapsody
Direct Function (Tone Bypass)
Volume Control Un-muting
Selectable Muting Levels (Full/-40/-20)
Video Select Control
RS-232 Port – Third Party Remote Controllers
RJ-45 Ethernet Port – Same Functionality as AVR-5805/4806
PC Setup and Control Capability
IR Serial Remote In/Out terminals
+12v Trigger Output - Assignable
Multi-Source/Multi-Zone (*Uses REC OUT)
Pre-amp Outputs for Multi-Zone
High Pass Filter for Multi-Zone Outputs
Multi-Zone Pre-Amp Outputs – Selectable Output Levels
Discrete Multi-Zone Composite Video Output - *S-Video also
Discrete Remote Power On/Off, Source Selection and Volume for Main and Second/Third* Zones
Discrete Remote Source Selection for Zone 3
Assignable Amplifier Configuration of Surround Back Channels
Speaker Time-Delay and Level Controls: L/R, Sub, C, Surr. L/R, Surround Back
Pre-Amp Outputs	Sub
Internet Radio
iPod Port (Using optional AKP-100 cable)
iPod Dock Control Port (Using optional ASD-1R Denon iDock)	ASD-11R/ASD-51N/ASD-51W
USB Flash Drive Port
Pre Labled Assignable Digital Inputs
BNC Digital Inputs - Audio & Video
Digital to Analog Conversion Multi Zone Outputs
XLR Analog Input
XLR Analog Output
Input Delete Function
Front Panel AV Inputs Inside Panel Composite & S-Video
S-Video Down Conversion 2nd Zone
Video Conversion Analog to HDMI Scaling 480p 720p 1080i 1080p
Faroudja DCDi Video Processing and Scaling FLI2310
Silicon Optix Realta HQV Processing and Scaling
HDMI Video Output v1.1 Spec 1080p
HDMI 1.3a Inputs	4 x 1.4a
HDMI 1.3a Outputs	1 x 1.4a
HDMI Audio/Video Repeater Function
HDMI Video Switching Function
HDMI Deep Color Support-36Bit
HDMI xvYCC Color Space Support
HDMI SACD Support
Component Video Output 2nd Zone
10-Ch External Analog Input
Enhanced Power Amp Assignment
Builtin WiFi Connectivity WiFi B/G certified
Network Enabled
USB Port with HDD Support
HQV
COMPONENT TECHNOLOGY
Equal Power Amplifiers	Y/7 Ch
Low Impedance Drive Capability
High-Current/Discrete Amplifiers
Independent Power Supplies
Pure Audio Construction
Toroidal Power Transformer
Dolby Digital, dts and DSP Modes – Analog Devices, HammerHead SHARC
Dolby Digital, dts and DSP Modes – Texas Instruments Aureus
AL24 Processing - All Channels
24-bit/192-kHz DACs – Burr-Brown PCM-1791
24-bit/192-kHz DACs - Analog Devices	AKM Semiconductor 24-bit/192-kHz AK4358VQ
Analog-to-Digital Conversion - Bit Depth/Sampling Rate	24-bit/96-kHz
Variable High/Low Pass Crossover Points (12/24dB) 40/60/80/100/120/150/200/250
Built In Time Based Correction
Advanced AL24 Processing Multi Channel
Automatic Lip Sync
HD Radio Tuner Built-in
CONVENIENCE FEATURES
Front Panel A/B Speaker Selector
Auto Setup Calibration
Auto/Manual Room Equalization
Audyssey MultEqxt Room Eq. with up to eight position setup
Audyssey MultEQ
Audyssey Dynamic Volume
Auto Setup Microphone Included/Type	Y/Mold DM-A409
Dual Surround Mode Spkr. Selector
Icon-Based On-Screen Display
Front Panel System Setup Control
Personal Memory Plus
System Setup/Surround Parameters Lockout
Relay-Controlled Protection Circuits
Microprocessor User Re-set	Y/p. 70
Detachable Power Cord
Subwoofer Peak-Level Limiter (THX)
Pre-programmed (10 Devices) Glow Key Remote Control with Punch Through Commands	Y/RC-1146
Pre-programmed/Learning EL Remote with Backlighting and Punch Through Commands
Audyssey MultEQ XT Room Correction with up to eight position setup
Audyssey Mult EQ Room Correction Positions	6
Audyssey Mult EQ Pro CalibrationCompatible/Installer Ready
GUI Menu Support

Manufacturer Page: www.usa.denon.com
