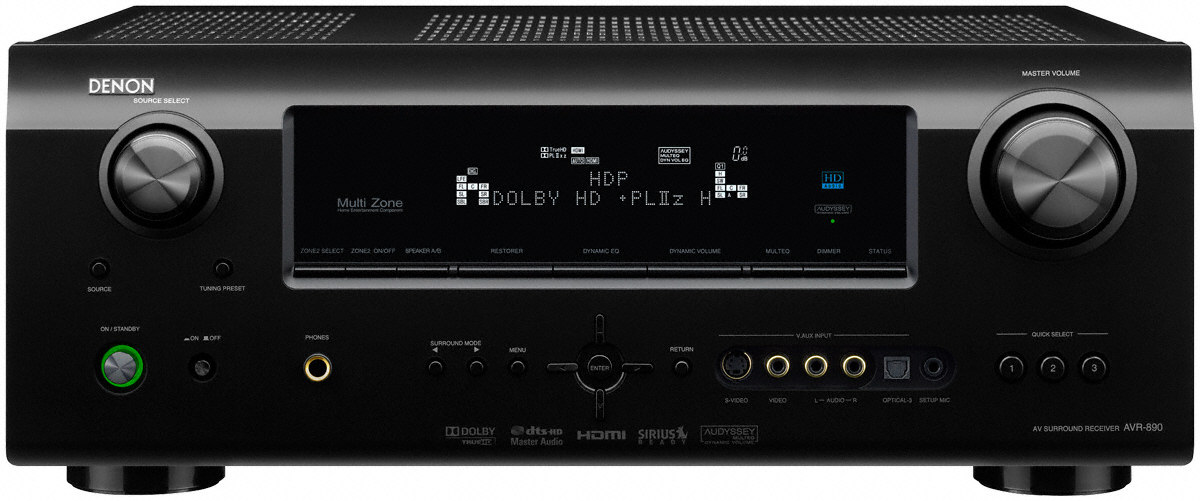

Samsung PN50C7000 50 inch Plasma 3D HDTV

Denon AVR890 7.1 Channel A/V Multi-Zone Home Theater Receiver

no longer available

Back to Denon Receivers Main

KEY POINTS - Denonavr890 7.1 channel a/v multi-zone home theater receiver:

Five HDMI inputs

Full graphical user interface (GUI) menu system

Phono input

Three AV inputs with S-Video

Second zone functionality

SUMMARY - Denon avr890 7.1 Channel A/V Multi-Zone Home Theater Receiver:

For thrilling surround sound, the AVR-890 features the latest high resolution audio decoders, including Dolby TrueHD and DTS-HD Master Audio, and is among the first to incorporate Dolby Pro Logic IIz, which provides a dramatic expansion of the front soundstage by deriving additional front channel height effects. To ensure top audio fidelity, the AVR-890 features Audyssey MultEQ room acoustic measurement and correction which analyzes speaker system characteristics at up to six measurement points and the room’s acoustics, and instantly adjusts multiple parameters for optimum speaker/room matching (measurement microphone included).

DETAILED SPECS - DENON AVR-890 7.1 CHANNEL A/V MULTI-ZONE HOME THEATER RECEIVER:


GENERAL

Finish	Black

Power Output; Watts Per Channel	105

All Channels Rated @ 0.05 THD

All Channels Rated @ 0.08 THD

Weight: In Pounds	24.9

Width (inches)	17.1

Height (inches)	6.7

Depth (inches)	14.9

SOUND MODES
THX Ultra2-Certified

Dynamic Discrete Surround Circuit – D.D.S.C - D

Processor(s) – Bit Depth and Type	21367 x 1 32-bit Floating Point

Dolby Pro Logic IIx – with Cinema, Music, Game Modes

THX Post-Processing – DPL (4.0), DPL2 Cinema, DD/DTS (5.1), ES Discrete (6.1), ES Matrix, Neo:6 Cinema

THX Ultra2 7.1 Cinema, Music and Game Modes

THX Surround EX Decoding

Dolby Digital Plus

Dolby Digital Surround EX Decoding

Dolby Digital Pro Logic II	PLIIz

dts ES Discrete 6.1 Decoding

dts ES Matrix 6.1 Decoding

dts Neo:6 Stereo-to-Surround Cinema and Music Modes

dts 96/24 5.1 for DVD-Video Processing

Dolby Headphone

HDCD Decoder

Audio Signal Delay (Sync. Audio with Video signal) – By source

Pure Direct/Direct/Stereo Modes on Digital/Analog inputs

Stereo/Direct Modes w/Pure Analog Path

5-Channel Stereo Mode

5-Channel Equal Power

Video Game Mode

Wide Screen 7.1 Mode

Mono Movie Surround Mode

Rock Arena Surround Mode

Matrix Surround Mode

Jazz Club Surround Mode

Virtual Surround Mode – For 2 Speakers/Headphones

Multi-Channel Stereo Mode	5/6/7

DSP Effect Modes	7

Auto Surround Mode (Analog or Digital Input Type)

Active Center Channel In All Surround Modes

Dynamic Discrete Surround Circuit - Digital HD

Dolby TrueHD and Dolby Digital+

dts-HD Master Audio

MP3 Decoding

WMA Decoding

HD Radio

XMHD

Neural Surround Mode XMHD

CONNECTIVITY
True 24-bit/96-kHz Digital Input Capability

True 24-bit/192-kHz Digital Input Capability (Denon Link & 1394)

Assignable Digital Inputs	5

Digital Input – DENON Link 3rd (SACD Ready)

IEEE-1394 Digital Audio Input/Output

Digital Inputs: Coaxial	2

Digital Inputs: Optical	3 (Incl. Front)

Digital Outputs: Optical	1

Digital to Analog REC Out

Analog Audio Inputs, Incl. Tuner	9 Incl. Sirius Radio

Phono Input

Source Function Renaming

Analog Record Outputs	2

Front Panel A/V Inputs w/Cover * Composite and S-Video	*

Video Conversion –Composite to S-Video to Component

Video Conversion – Composite to S-Video to Composite

Video Conversion – Analog to HDMI

DVI/HDMI Video Inputs – Compatible with 1.1 Spec. – Multi-Channel Audio

HDMI Video Outputs *1080p

Composite Video Inputs	4 Incl. Front

Composite Video Outputs	2 Incl. Monitor

S-Video Inputs	3 Incl. Front

S-Video Outputs	2 Incl. Monitor

Component Video Inputs x Bandwidth - *Assignable	*2 x 60 MHz

Component Video Outputs	1

6-Ch. External Analog Input

8-Ch. External Analog Input

Banana Plug Speaker Terminals, All Channels

Cinema EQ

Front A/B Speaker Selector

56 Station Auto-Preset Memory Tuning

Radio Data System (RDS)

XM Satellite Radio 'Connect and Play' Ready – with optional antenna

Sirius Ready

Rhapsody

Direct Function (Tone Bypass)

Volume Control Un-muting

Selectable Muting Levels (Full/-40/-20)

Video Select Control

RS-232 Port – Third Party Remote Controllers

RJ-45 Ethernet Port – Same Functionality as AVR-5805/4806

PC Setup and Control Capability

IR Serial Remote In/Out terminals

+12v Trigger Output - Assignable

Multi-Source/Multi-Zone (*Uses REC OUT)	2S/2Z

Pre-amp Outputs for Multi-Zone

High Pass Filter for Multi-Zone Outputs

Multi-Zone Pre-Amp Outputs – Selectable Output Levels

Discrete Multi-Zone Composite Video Output - *S-Video also

Discrete Remote Power On/Off, Source Selection and Volume for Main and Second/Third* Zones

Discrete Remote Source Selection for Zone 3

Assignable Amplifier Configuration of Surround Back Channels

Speaker Time-Delay and Level Controls: L/R, Sub, C, Surr. L/R, Surround Back

Pre-Amp Outputs	Sub

Internet Radio

iPod Port (Using optional AKP-100 cable)

iPod Dock Control Port (Using optional ASD-1R Denon iDock)	ASD-1R/11R/3N/3W

USB Flash Drive Port


Pre Labled Assignable Digital Inputs

BNC Digital Inputs - Audio & Video

Digital to Analog Conversion Multi Zone Outputs

XLR Analog Input

XLR Analog Output

Input Delete Function

Front Panel AV Inputs Inside Panel Composite & S-Video

S-Video Down Conversion 2nd Zone

Video Conversion Analog to HDMI Scaling 480p 720p 1080i 1080p

Faroudja DCDi Video Processing and Scaling FLI2310

Silicon Optix Realta HQV Processing and Scaling

HDMI Video Output v1.1 Spec 1080p

HDMI 1.3a Inputs	5 with 7.1 Uncompressed 24/96 Audio

HDMI 1.3a Outputs	1

HDMI Audio/Video Repeater Function

HDMI Video Switching Function

HDMI Deep Color Support-36Bit

HDMI xvYCC Color Space Support

HDMI SACD Support

Component Video Output 2nd Zone

10-Ch External Analog Input

Enhanced Power Amp Assignment

Builtin WiFi Connectivity WiFi B/G certified

Network Enabled

USB Port with HDD Support
HQV

COMPONENT TECHNOLOGY
Equal Power Amplifiers	Y/7 ch

Low Impedance Drive Capability

High-Current/Discrete Amplifiers

Independent Power Supplies

Pure Audio Construction

Toroidal Power Transformer

Dolby Digital, dts and DSP Modes – Analog Devices, HammerHead SHARC

Dolby Digital, dts and DSP Modes – Texas Instruments Aureus

AL24 Processing - All Channels

24-bit/192-kHz DACs – Burr-Brown PCM-1791

24-bit/192-kHz DACs - Analog Devices	24-bit/192-kHz ADAU1328

Analog-to-Digital Conversion - Bit Depth/Sampling Rate	24-bit/96-kHz

Variable High/Low Pass Crossover Points (12/24dB) 40/60/80/100/120/150/200/250

Built In Time Based Correction

Advanced AL24 Processing Multi Channel

Automatic Lip Sync

HD Radio Tuner Built-in

CONVENIENCE FEATURES
Front Panel A/B Speaker Selector

Auto Setup Calibration

Auto/Manual Room Equalization

Audyssey MultEqxt Room Eq. with up to eight position setup

Audyssey MultEQ

Audyssey Dynamic Volume

Auto Setup Microphone Included/Type	Y/Mold DM-A409

Dual Surround Mode Spkr. Selector

Icon-Based On-Screen Display

Front Panel System Setup Control

Personal Memory Plus

System Setup/Surround Parameters Lockout

Relay-Controlled Protection Circuits

Microprocessor User Re-set	Y/p.68

Detachable Power Cord

Subwoofer Peak-Level Limiter (THX)

Pre-programmed (10 Devices) Glow Key Remote Control with Punch Through Commands	Y/RC-1117

Pre-programmed/Learning EL Remote with Backlighting and Punch Through Commands


Audyssey MultEQ XT Room Correction with up to eight position setup

Audyssey Mult EQ Room Correction Positions	6

Audyssey Mult EQ Pro CalibrationCompatible/Installer Ready

GUI Menu Support

Manufacturer Page: www.usa.denon.com
