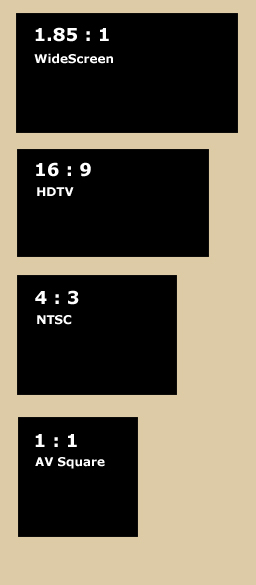

Use the chart below to match diagonal screen size to
overall size and image area. Once you have selected the perfect size,
select the perfect screen surface using
the Draper screen fabric guide. |
| HDTV Format (16:9) | ||
| Diagonal Size | Overall Size ( W x H ) |
Image Area |
| 65" | 35-3/4" x 60-1/2" | 31-3/4" x 56-1/2" |
| 73" | 40" x 68" | 36" x 64" |
| 82" | 44-1/2" x 76" | 40-1/2" x 72" |
| 92" | 57" x 83-1/2" | 45" x 80" |
| 106" | 64" x 96" | 52" x 92" |
| 119" | 62" x 108" | 58" x 104" |
| 133" | 69" x 120" | 65" x 116" |
| 161" | 84" x 144" | 79" x 140" |
| 184" | 95" x 164" | 90" x 160" |
| 193" | 99-1/2" x 172" | 94-1/2" x 168" |
| 220" | 111" x 192" | 106" x 188" |
| 10' x 17' | 120" x 204" | 108" x 192" |
| 11' x 19' | 132" x 228" | 120" x 216" |
| 12'3" x 21' | 147" x 252" | 135" x 240" |
| 14'6" x 25' | 174" x 300" | 162" x 288" |
| NTSC Format (4:3) | ||
| Diagonal Size | Overall Size ( W x H ) | Image Area |
| 6' | 46-1/2" x 59-1/2" | 42-1/2" x 56-1/2" |
| 7' | 53-1/2" x 69-1/2" | 50" x 66-1/2" |
| 100" | 64" x 83-1/2" | 60" x 80" |
| 10' | 73" x 96" | 69" x 92" |
| 11' | 83" x 108" | 78" x 104" |
| 150" | 92" x 120" | 87" x 116" |
| 15' | 109" x 144" | 105" x 140" |
| 200" | 123" x 162" | 118" x 158" |
| 20' | 146" x 192" | 141" x 188" |
| 250" | 153" x 202" | 148" x 198" |
| 25' | 182" x 240" | 177" x 236" |
| 27'6" | 199" x 264" | 194" x 260" |
| 30' | 217" x 288" | 212" x 284" |
| 32'6" | 235" x 312" | 230" x 308" |
| 35' | 253" x 336" | 248" x 332" |
| WideScreen Format (1.85:1) | ||
| Diagonal Size | Overall Size ( W x H ) | Image Area |
| 99" | 51" x 90" | 47" x 87" |
| 108" | 54" x 96" | 50" x 92" |
| 120" | 60" x 108" | 56" x 104" |
| 132" | 67" x 120" | 63" x 116" |
| 162" | 80" x 144" | 76" x 140" |
| 182" | 91-1/2" x 164" | 86-1/2" x 160" |
| 190" | 91" x 168" | 188-3/4" |
| 218" | 104" x 192" | 214-1/2" |
| AV Format (X:Y) | ||
| Screen Size | Overall Size ( W x H ) | Image Area |
| 50" x 50" | 50" x 50" | 50" x 50" |
| 60" x 60" | 60" x 60" | 60" x 60" |
| 70" x 70" | 70" x 70" | 70" x 70" |
| 84" x 84" | 84" x 84" | 84" x 84" |
| 72" x 96" | 72" x 96" | 72" x 96" |
| 96" x 96" | 96" x 96" | 96" x 96" |
| 7' x 9' | 84" x 108" | 84" x 108" |
| 9' x 9' | 108" x 108" | 108" x 108" |
| 8' x 10' | 96" x 120" | 96" x 120" |
| 10' x 10' | 120" x 120" | 120" x 120" |
| 9' x 12' | 108" x 144" | 108" x 144" |
| 12' x 12' | 144" x 144" | 144" x 144" |
| 10'6" x 14' | 126" x 168" | 126" x 168" |
| 14' x 14' | 168" x 168" | 168" x 168" |
| 12' x 16' | 144" x 192" | 144" x 192" |
| 16' x 16' | 192" x 192" | 192" x 192" |
| 13'6" x 18' | 162" x 216" | 162" x 216" |
| 18' x 18' | 216" x 216" | 216" x 216" |
| 8' x 20' | 96" x 240" | 96" x 240" |
| 15' x 20' | 180" x 240" | 180" x 240" |
| 20' x 20' | 240" x 240" | 240" x 240" |
| 19'6" x 26' | 234" x 312" | 234" x 312" |
| 14' x 28' | 168" x 336" | 168" x 336" |
| 21' x 28' | 252" x 336" | 252" x 336" |
|
|
||
