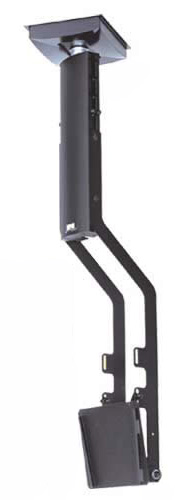

DRAPER CH ST490 Plasma Tv Ceiling
Mount with Rotate and Swivel
Click to Enlarge Image
KEY POINTS - CHST490 Draper Plasma Tv Ceiling Mount with Rotate and Swivel:
Formerly the Aero C490
Suspends a plasma display from a 19 inch long extruded aluminum column mounted to a heavy gauge steel ceiling bracket
Display can also be raised and lowered on column over a 6 inch range in 2 inch increments
Display can be tilted through 15°
360° rotation at ceiling bracket
Will accommodate virtually any size display up to 325 lbs.
Includes Universal Plasma Bracket
SUMMARY - Draper chst490 Plasma Tv Ceiling Mount with Rotate and Swivel:
The Draper CH ST 490 ceiling mount suspends a plasma display from an extruded aluminum column. The ceiling plate swivels for complete 360-degree rotation. The plasma can also be raised and lowered on column in 2” increments. The CH ST 490 has a 19 column with a 6” range of adjustment. The center of the plasma display will be approximately 48” from the top of the ceiling plate.
DETAILED SPECS - DRAPER CH ST490 PLASMA TV CEILING MOUNT WITH ROTATE AND SWIVEL:
Formerly the Aero C490
Suspends a plasma display from a 19" long extruded aluminum column mounted to a heavy gauge steel ceiling bracket
Display can also be raised and lowered on column over a 6" range in 2" increments
For screens through 50" diagonal the display's center-line can be 33-5/8" to 41-1/2" from the ceiling bracket
For screens 60" diagonal and larger, the display's center-line can be 37-3/4" to 45-5/8" from the ceiling bracket
Display is secured in an adaptor bracket with two lock devices
Display can be tilted through 15°
360° rotation at ceiling bracket
Will accommodate virtually any size display up to 325 lbs.
Black powder coat finish
Bracket can be secured with padlock to prevent theft
