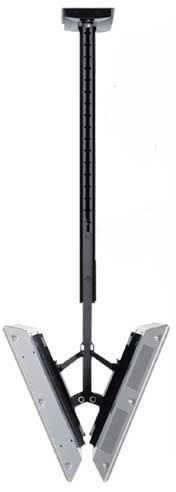

DRAPER CH STD490 Dual Plasma Tv Ceiling Mount with Rotate and Swivel
Click to Enlarge Image
KEY POINTS - CHSTD490 Draper Dual Plasma Tv Ceiling Mount with Rotate and Swivel:
Formerly the Aero CD490
Similar in design to the CH ST490, and provides two opposing display mounting brackets
Suspends two plasma displays, back-to-back from a 19 inch long extruded aluminum column mounted to a heavy gauge steel ceiling bracket
Display can be raised and lowered on column over a 8 inch range in 2 inch increments.
Display can be tilted up to 15°
360° rotation at ceiling bracket
Includes Universal Plasma Bracket
SUMMARY - Draper chstd490 Dual Plasma Tv Ceiling Mount with Rotate and Swivel:
The Draper CH STD 490 ceiling mount supports two opposing plasma tv displays. The center of the plasma display will be approximately 48” from the top of the ceiling plate; may be adjusted over an 8” range in 2” increments. This unit does not have cable management.
DETAILED SPECS - DRAPER CH STD490 DUAL PLASMA TV CEILING MOUNT WITH ROTATE AND SWIVEL:
Formerly the Aero CD490
Similar in design to the CH ST490, and provides two opposing display mounting brackets
Suspends two plasma displays, back-to-back from a 19" long extruded aluminum column mounted to a heavy gauge steel ceiling bracket
Display can be raised and lowered on column over a 8" range in 2" increments.
For all screen sizes, the display's center-line can be 29-1/8" to 37" from the ceiling bracket.
Display can be tilted up to 15°
360° rotation at ceiling bracket
Will accommodate virtually any size display up to 325 lbs. (total weight of all displays)
Bracket can be secured with padlock to prevent theft
