Draper CM ST Ceiling Mounts range in price from $266.98
to $549.98 (including shipping). Click the drop down list to the
right to view all available sizes and pricing.
Use These Mounts if display is 37 inch diagonal or smaller, weighs less than 66 lbs. and has Vesa mounting hole patterns of 75mm x 75mm, 100mm x 100mm, 100mm x 200mm, 200mm x 200mm, 200mm x 400mm or a maximum mounting hole pattern of 330mm (vertically) x 420mm (horizontally)
Stylish ceiling mount available in 4 sizes (CMST400/800/1200/1800), silver finish with black accents
Can hold multiple displays with total weight not exceeding 130 lbs.
Each display can tilt up to 12 degrees and rotate up to 15 degrees side to side
One M ST kit for mounting one display included, additional M ST kits required for each additional display
Displays can be mounted back to back

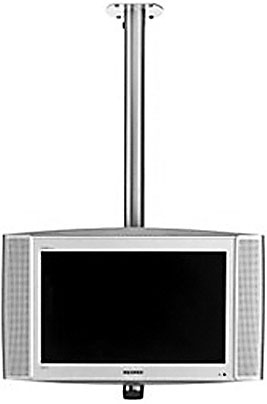

SUMMARY - Draper cmst Flatscreen Ceiling Mount:
Stylish ceiling mount series. Available in four sizes. Can hold up to four total displays depending on display sizes and length of mount. Displays can be placed back to back. Display can be tilted up to 12° and rotated up to 15° side to side. Each CM ST ceiling mount includes one M ST kit for mounting one display. Additional M ST kits required for additional display. Silver finish, black accents.
DETAILED SPECS - DRAPER CM ST FLATSCREEN CEILING MOUNT:
Ceiling Mount Model Name
Range of Adjustability
CM ST 400:
15 3/4 inches
CM ST 800:
31 1/2 inches
CM ST 1200:
47 1/4 inches
CM ST 1800:
70 3/4 inches
Additional Accessories:
M ST KIT: Needed when adding additional displays to CM ST ceiling mounts. One M ST Kit needed for each display. Includes tilt and swivel feature to tilt display up to 12° and rotate display approximately 20° side to side. Also includes M Universal Bracket to attach display. Silver finish.
M Universal Bracket: Universal Bracket only. Used to attach Medium Weight displays to any Heavy Weight mounts. Can also be used to replace M Universal portion only of CM ST ceiling mounts or M ST kit. Available in silver or black finishes. Black finish matches most SMS Flatscreen Heavy Weight Mounts.
