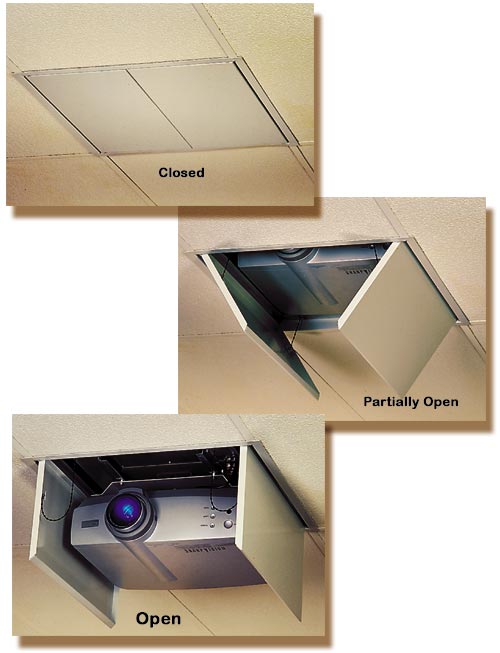

Draper's LCD Lift is compact,
lightweight and accommodates most LCD/DLP projectors. Bomb
bay doors open into the room, and the projector descends
from the lift's travelling pan.
Model A can accommodate projectors up to
11" x 18" x 18", weighing less than 65 lbs.
Model B can accommodate projectors up to
16" x 23" x 23", weighing less than 65 lbs.
Bomb bay doors and a slim cross-section
distinguish the LCD projector lift
Housing of aluminum, with doors finished
in ceiling white
Contains two 110v power outlets
Contains current sensor that
requires projector to cool before retracting
A flat ceiling closure, similar to that
furnished for the Scissor Lift, is optionally available
Can be used with Aero Low Profile Lift
Bracket
Can be independently operated using
Draper's motorized lift controls
Optional ceiling access door provides
access when unit is installed above hard ceiling and access to the
projector from above is not convenient. Available with a metal finish to
be painted by ceiling contractor, or to accept ceiling material to match
the surrounding ceiling
Warranted for one year against defects
in materials and workmanship
Aero Low Profile Lift Bracket (shown with projector)
Places top of projector
bracket only 3-3/16" from the ceiling line or projector lift.
Ball joint at tip of
column allows instant registration of the projected image and adjusts
infinitely through 30° pitch, 30° roll and 360° yaw.
Mount directly to
ceiling or use in Draper's LCD Lift, Scissor Lift, Micro Projector Lift,
or UniMount
Once image is precisely
registered on screen, lock the ball joint
Draper's unique slide-on
bracket installs in seconds and also locks in place
Matt black epoxy
powdercoat finish.
Maximum load is 26 lbs.
Warranted for one year against defects
in materials and workmanship.
