Draper's Scissor Lift
accommodates most video and LCD projectors and is available
in 14 models. Select a model based on the maximum lowering
distance needed. Three sets of scissors stabilize projector
laterally and front-to-back.
CALL TO PLACE ORDER
OVERVIEW -

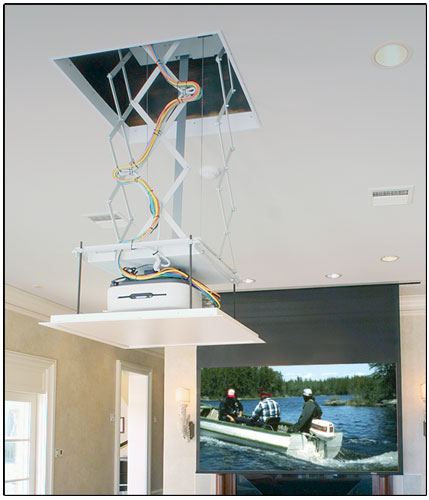

Draper Ceiling Recessed Scissor Lift for LCD/DLP Projectors
Draper’s Scissor Lift and
Scissor Lift SLX not only conceal your projector above the ceiling and set
it exactly where you need it at presentation time, they also bring it down
to within easy reach for service
Draper positions the lift to
your specifications
Choose from seven models with
service positions ranging from 4 to 15 feet
Scissors on the left, right
and back sides of the unit stabilize the projector from any sway both
laterally and front–to–back resulting in quiet, fluid movement of the
Scissor Lift. No other manufacturer offers you 3 sets of scissors and
this much stability.
Features a small footprint:
23" wide x 23½" deep, or 27" x 29½" for the SLX Series
Projectors can be bolted
directly to the lift’s bottom pan, or mounted with the projector’s
standard ceiling mounting bracket
Each lift is equipped with a
fail safe inertial safety belt system with air craft cables and a Cable
Management System that includes a pre–wired power cable on the back
scissor, bringing 110v current right to your projector.
Optional
Decorative CoverCovers scissor arms and protects from
dust
Optional universal steel
ceiling closure with a recess to accept ceiling tile, or with a smooth
surface finished in white baked enamel.
Optional factory
installed hookup for RGB, Video and Sync.
An optional plenum
enclosure is also available.
Optional ceiling access
door provides access when unit it installed above hard ceiling and access
to the projector from above is not convenient. Available with a metal
finish to be painted by ceiling contractor, or to accept ceiling material
to match the surrounding ceiling.
Can be independently
operated using Draper’s motorized lift controls
Can be used with Aero
Low Profile Lift Bracket
Warranted for one year
against defects in materials and workmanship.
Aero Low Profile Lift Bracket (shown with projector)
Places top of projector
bracket only 3-3/16" from the ceiling line or projector lift.
Ball joint at tip of
column allows instant registration of the projected image and adjusts
infinitely through 30° pitch, 30° roll and 360° yaw.
Mount directly to
ceiling or use in Draper's LCD Lift, Scissor Lift, Micro Projector Lift,
or UniMount
Once image is precisely
registered on screen, lock the ball joint
Draper's unique slide-on
bracket installs in seconds and also locks in place
Matt black epoxy
powdercoat finish.
Maximum load is 26 lbs.
Warranted for one year against defects
in materials and workmanship.
