Draper SMS ADJUSTABLE
Video Projector Ceiling Mount
Draper SMS ADJUSTABLE Ceiling Mounts range in price from $209.74
to $259.46 (including shipping). Click the drop down list to the
right to view all available sizes and pricing.
DRAPER SMS ADJUSTABLE Video Projector Ceiling Mount
Click to Enlarge Image
KEY POINTS - SMS Adjustable Draper Video Projector Ceiling Mount:
Formerly the Aero Projector Mounts 1214-N through 4252-N
Telescoping extruded aluminum column in your choice of five different sizes, 13-3/8 inch the shortest and 52 inch the longest
Maximum capacity 26 lbs.
Locks with a turn of two setscrews
Includes Universal Projector Bracket
SUMMARY - Draper sms adjustable Video Projector Ceiling Mount:
Draper has solved the projector bracket problem with a bracket that fits virtually any LCD/DLP projector. The SMS Universal Projector Bracket is furnished with two sets of horizontal bracket arms – four long and four short – and four vertical spacers to level the bracket on projectors that have mounting holes on different elevations. It comes with all the hardware and spacers needed to adjust for an uneven projector surface. You can mix and match bracket arms as needed to fit your projector. Infinite adjustability enables you to find and secure the projector’s center of gravity in seconds, so the projector will hang level. The SMS Universal Projector Bracket fits virtually any projector designed for inverted mounting with a maximum load of 26 lbs.
Available SMS Adjustable Size Ranges
232169 13-3/8" to 15-3/8"
232170 21-1/4" to 31-1/8"
232171 27-1/4" to 37-1/8"
232172 35-1/8" to 45"
232173 43" to 52-7/8"
DETAILED SPECS - DRAPER SMS ADJUSTABLE VIDEO PROJECTOR CEILING MOUNT:
Formerly the Aero Projector Mounts 1214-N through 4252-N
Telescoping extruded aluminum column in your choice of five different sizes, 13-3/8" the shortest and 52" the longest
Silver finish
Maximum capacity 26 lbs.
Adjustable steel ceiling mounting plate has slotted screw holes for fine adjustments

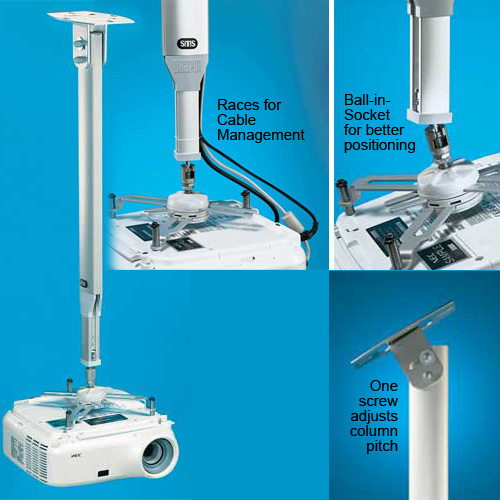

Races for cable management are concealed by "peel off" gray moldings. Conveniently located on sides of the column. Hide almost any combination of cables without threading them through a column
Orient your projector quickly with the steel ball-in-socket located at tip of inner column. Provides instant registration of the projected image and adjusts through 30° pitch, 30° roll and 360° rotation
Locks with a turn of two setscrews
Inner column is infinitely adjustable within the specified range. Loosen one concealed setscrew, lower to the exact extension you need and tighten the screw
Inner column has a mechanical safety stop to prevent it from disengaging from outer column
