RS-232C Control
The RS-232C
terminal provides the utmost in flexibility and compatibility by
allowing users to connect the player to an external device such as a
computer or custom controller.
Touch Screen
Support
The player’s support of X-Y coordinate RS-232C commands means that it
can be directly connected to special video monitor touch screens
(available through 3rd party developers), making it an effective and
affordable interactive display option for use in museums and art
galleries, shopping malls, hotels or any other public venue.
Seamless and
Random Frame Accurate Search Capabilities

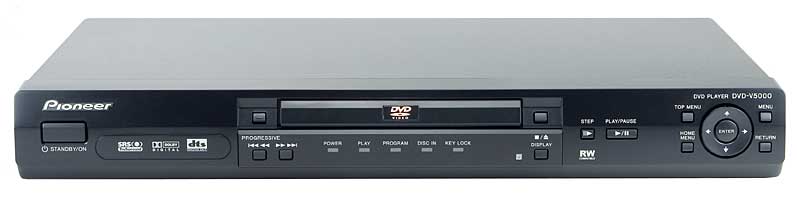

The DVD-V5000 offers precise, random access, frame accurate search
that can decrease average search times by up to 50%. In addition, all
frame search options are completely seamless with the player’s
expanded video buffer.
DVD Barcode
With DVD Barcode, users can control video and audio playback by
scanning printed barcodes with an optional barcode reader.
Barcode Command
Stacks
Users can save video play lists into the unit’s non-volatile Flash RAM
for automatic recall and display, or can play back single commands or
stacks of several linked commands that have been input via the remote
control, barcode reader or RS-232C control.
Dust Resistant
Player
The dustproof feature greatly enhances durability in high-traffic
environments.
Component/Composite/S-Video
The
unit boasts a full range of hardware connections that allow for
simultaneous output, including component video output RCA Jacks (Y,
Pr, Pb), composite video output RCA Jacks and S-Video.
NTSC/PAL Playback
Supports playback of both NTSC and PAL DVDs.
Power On Start
Upon Power On Start, the player can immediately display the DVD disc’s
first-play menu. This function is ideal for exhibits,
point-of-information and retail display applications.
Progressive Scan
(with Component Output)
The progressive scan feature greatly reduces video noise and delivers
fuller, smoother images.
Multiple Disc
Formats
Supports DVD-Video, Video CD and CD-Audio.
Multiple Disc
Media Type
Supports DVD-R, DVD-RW, CD-R and CD-RW.
Slow Motion
Playback
The DVD-V5000 offers slow motion playback via remote control or
RS-232C control.

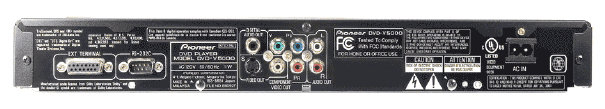

(Rear Panel View)
SPECIFICATIONS - PIONEER DVDV5000
DVD PLAYER WITH RS-232C
|
General |
| Format |
DVD-Video, Video CD and CD-DA, Hybrid Disc (Pioneer format, NTSC
only) |
| Laser |
N/A650nm wave length semiconductor laser for
DVD media, 780nm wave
length semiconductor laser for CD media |
|
Power Requirement |
AC 120V, 50 Hz/60Hz |
|
Power Consumption |
11 W (playback) 0.8 W (standby) |
|
Weight |
5 Ibs. 8 oz. (2.5 kg) |
|
Dimensions (WxHxD) |
16.5" x 2.2" x 11.1" |
|
MTBF |
50,000 Operational Hours |
|
Environment |
|
Operating Temperature |
5% to 85% (no condensation) |
|
Operating Humidity |
41°F - 95 ° |
|
Playable Disc |
|
Disc Type |
DVD-Video (NTSC/PAL) DVD Hybrid (Pioneer format, NTSC only), VCD
(NTSC/PAL), 3.5 |
|
Video Signal |
|
Output Level |
1 volt p-p (75 ohms load, synchronous load) |
|
Video Output Terminal |
Composite: RCA pin x 1 |
|
S Output ( Y Output Level ) |
1.0 volt p-p (75 ohms) |
|
S Output ( C Output Level ) |
265 mV p-p (75ohms) RCA |
|
Y Component Video Output Level |
1 volt p-p (75 ohms load) RCA |
|
Pb Component Video Output Level |
0.65 volt p-p (75 ohms load) RCA |
|
Pr Component Video Output Level |
0.65 volt p-p (75 ohms load) RCA |
|
Signal to Noise Ratio |
N/A |
|
Horizontal Resolution |
N/A |
|
Audio Input |
|
Audio Output Terminal |
200 mVrms (1 kHz, -20 dB) |
|
Channels |
2 Channels |
|
Frequency Response |
4Hz - 44kHz |
|
Signal to Noise Ratio |
115 dB (average) |
|
Dynamic Range |
101 dB (average) |
|
Wow and Flitter |
+/-0.001% at white peak (or lower) |
|
Other Terminal |
|
Coaxial Digital Output |
RCA jacks |
|
Communication Interface |
D-sub 15-pin(female), D-sub 9-pin (male) |
|
Functions |
|
RS-232C Serial I/F |
N/A |
