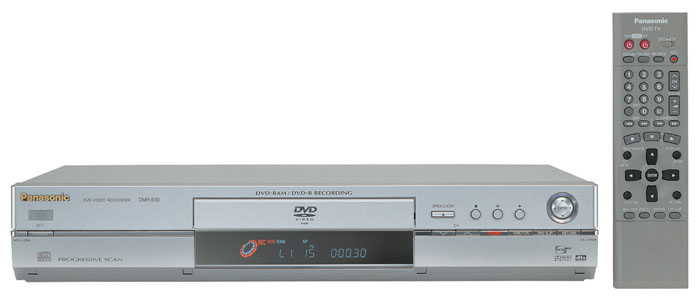

Backward-Compatible
DVD Video Recorder with Time Slip Playback records to
DVD-RAM and DVD-R discs
Features
Simultaneous
Recording and Playback Record a program onto a disc, while
simultaneously watching any other program that's
previously been recorded on the same disc
Time Slip™
Playback Now you no longer have to wait for an
entire program to be recorded before watching it
from beginning to end. With the time slip playback
feature, you can skip back to watch a program
currently being recorded from any point that's
already been recorded — while continuing to record
the live program in progress.
Direct
Navigator Makes it easy to find a previously recorded
program on a disc. A list of recording dates, times,
channels and (user-entered) titles are shown on
screen. When you move the cursor to any particular
recording, the segment is played in the background,
so playback can begin immediately upon selection.
Program deletion, protection, and title input are
also easy to perform. This feature can handle up to
99 titles at once.
Playlist
Playback Perform simple non-linear video editing —
such as rearranging the order of scenes, skipping
over unwanted scenes, or copying selections — to
create custom playlists of favorite scenes on a
disc.
Progressive Scanning
DVD-RAM Video Playback
Capability
Picture Control -
Brightness, Color, Contrast, Gamma
Advanced Surround (V.S.S.)
Cinema Mode
Optical Digital Output
for DTS® & Dolby Digital®
Surround Sound
Digital Audio Out -
Optical
Remote Control -
Universal
CD-R/RW Playback*
(*This unit can play CD-DA format audio CD-R and CD-RW
discs. It may not be able to play some CD-R or CD-RW
discs due to the condition of the recording.)
On-Screen Menu Icons
Playable Disc Type -
DVD-Video, DVD-RAM, DVD-R, Video CD, CD, CD-R, CD-RW
Input
Video In (x3) (Phono)
S-Video In (x3) (S4P)
Audio In (x3) (Phono)
Horizontal Resolution
- More than 500 lines
Power Source - AC
120V, 60Hz
MPEG2 Encoding with
Hybrid VBR (Variable Bit Rate) Technology
Direct Navigator
Playlist Function
Dolby Digital®
(Dolby AC-3) 2ch Audio Recording
Disc Protect
Commercial Skip
High Quality Recording
on High-Capacity 4.7GB DVD-RAM Discs
Audio Out - x2 (Phono)
Component Video Out
(Y, PB, PR) - Discrete
S-Video Out - x2 (S4P)
Video Out - x2 (Phono)
DVD-R Playback
Capability*
(*This unit can play back Panasonic DVD-R discs
recorded with Panasonic DMR-E20 DVD video recorder.
It may not be able to play some DVD-R discs
depending on the condition of the recording.)
Picture Mode Selection
Selectable Recording
Modes - XP/SP/LP/EP/FR
Picture Quality
Improvement Functions - Input TBC
3D Y/C Separation
3D Noise Reduction
Block Noise Reduction
Mosquito Noise Reduction
One-Touch Record and
Play
Seamless Playback
Dimensions (H x W x D)
- 31/8" x 1615/16"
x 121/16"
