CELABS AV901COMP
1 Input/9 Output HDTV Component
Video Distribution Amplifier / Splitter / Signal Booster
KEY
POINTS -CELABS av901comp Component
Video Distribution Amplifier:
1-Input & 9-outputs
HDTV Compatible
Low Distortion
True one-to-one ratio
Metal housing reduces interference
Save the expense of additional digital receivers
Improves display picture quality
>50 MHz (HDTV requires 37MHz minimum)
Allows up to 150-ft runs
SUMMARY -Ce Labs Av901comp Component
Video Signal Booster:

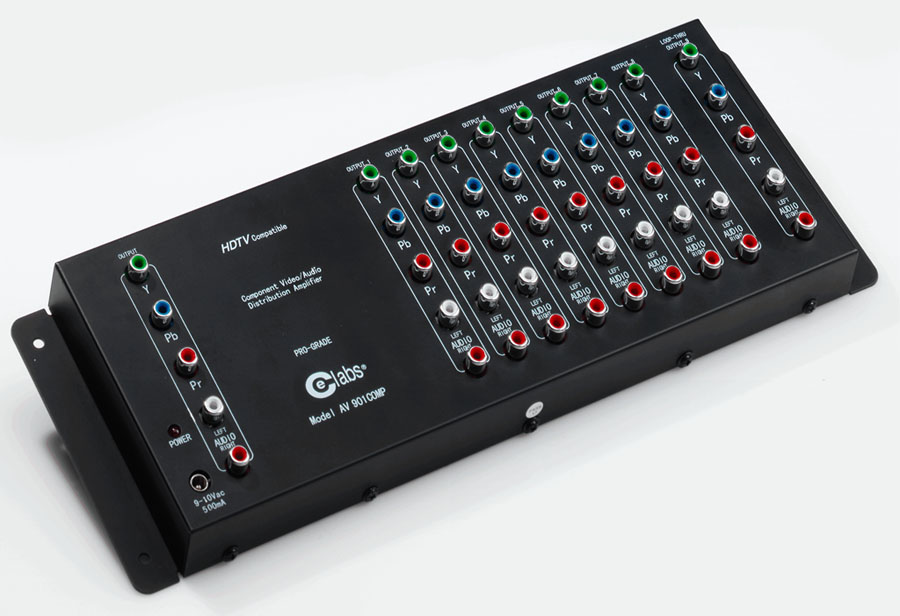

The AV901COMP from CE Labs distributes HDTV and analog television signals from a
single A/V source to multiple television receivers. Now you can daisy chain to large number of televisions with equal picture
quality. The AV901COMP saves the expense of additional A/V receivers and allows up
to 150 ft. runs.
DETAILED SPECS -CELABS AV901COMP COMPONENT VIDEO DISTRIBUTION AMPLIFIER:
Video
Gain: 2 Volt
unterminated, 1 Volt Terminated: 75 ohms + 5%
Input
Impedance: 75 ohms + 5%
Output
Impedance: 75 ohms + 5%
Video
Insertion Loss: 50 Hz to 10 MHz < .40 dB
In to Out
Isolation: 50 Hz to 10 MHz 32 dB Port to Port
Out to In
Isolation: 50 Hz to 10 MHz 60 dB
Return Loss:
50 Hz to 10 MHz 20 dB
Video
Bandwidth: > 100 MHz
Audio
Response: > 100 KHz
Audio
Gain: Unity
Input
Impedance: 22k ohm
Output
Impedance: 1k ohm
THD: 0.05% at
1.0 Volts input level
Frequency
Response: 20 Hz to 100 KHz
Channel
Separation: > 75 dB @ 1 KHz
In to Out
Isolation: 60 dB
Out to Out
Isolation: 60 dB
Signal to
Noise: 100 dB re 2 Volts (out)
Power
Requirement:
External 9 to 10 Volt AC @ 500 mA with a 2.1 mm coaxial connector. Power supply
is included.
