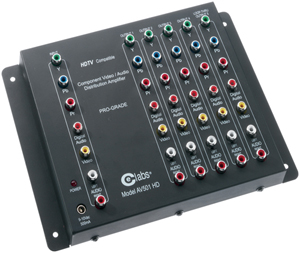

CELABS AV501HD
1 Input/5 Output HDTV Component Video Distribution Amplifier with
Digital Audio
KEY
POINTS -Celabs Av501hd Component
Video Distribution Amplifier:
1-Input & 5-outputs
Allows any A/V source with Y, Cb, CR, or Y, PB,
PR output components to distribute A/V to 5 different locations
without any signal loss
Compatible with all HDTV, digital &
analog video signals
Allows up to 150-ft runs
SUMMARY -CeLabs Av501hd HDTV Component Video/Digital Audio Distribution Amplifier:
The AV501HD from CE Labs distributes HDTV and analog television signals from a
single A/V source to multiple television receivers. Now you can daisy chain to large number of televisions with equal picture
quality. The AV501HD saves the expense of additional A/V receivers and allows up
to 150 ft. runs.
DETAILED SPECS -CELABS AV501HD COMPONENT VIDEO
DISTRIBUTION AMPLIFIER:
Video
Gain: 2 Volt
unterminated, 1 Volt Terminated: 75 ohms + 5%
Input
Impedance: 75 ohms + 5%
Output
Impedance: 75 ohms + 5%
Video
Insertion Loss: 50 Hz to 10 MHz < .40 dB
In to Out
Isolation: 50 Hz to 10 MHz 32 dB Port to Port
Out to In
Isolation: 50 Hz to 10 MHz 60 dB
Return Loss:
50 Hz to 10 MHz 20 dB
Video
Bandwidth: > 100 MHz
Audio
Response: > 100 KHz
Audio
Gain: Unity
Input
Impedance: 22k ohm
Output
Impedance: 1k ohm
THD: 0.05% at
1.0 Volts input level
Frequency
Response: 20 Hz to 100 KHz
Channel
Separation: > 75 dB @ 1 KHz
In to Out
Isolation: 60 dB
Out to Out
Isolation: 60 dB
Signal to
Noise: 100 dB re 2 Volts (out)
Audio (Digital
– AV501HD & AV901HD only)
Supports
standard SPDIF digital audio. Unity gain when terminated
into 75 ohms (2X gain high imp.). Greater than 50 MHz of
bandwidth to ensure minimal degradation. (If not used
for digital audio, this port can be used to switch
standard video).
Power
Requirement:
External 9 to 10 Volt AC @ 500 mA (AV901HD = 1000 mA) with a 2.1 mm coaxial connector. Power supply
is included.
