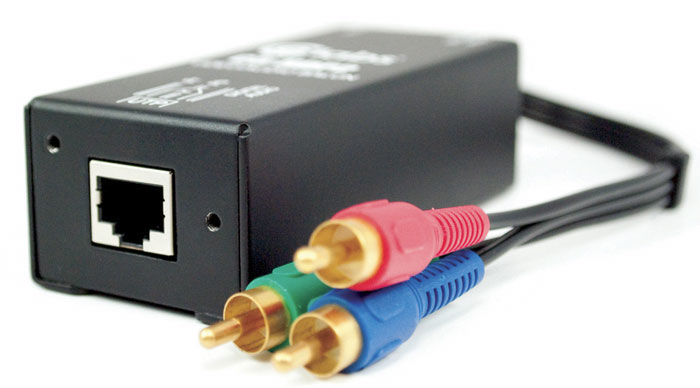

KEY POINTS - Celabs c5hdp2 cat5 distribution adapter utp balun:
Uses standard CAT5 or CAT6 cable
Can be used with four composite video channels and mono analog audio
Four RCA connectors for component video and digital SPDIF audio
Includes 3.5mm to RCA audio cable
Heavy gauge steel, powder-coated chassis, is corrosion and scratch resistant
DETAILED SPECS - CELABS C5-HDP2 CAT5 DISTRIBUTION ADAPTER UTP BALUN:
Video
Nominal input level:
1 Volt peak to peak
Gain:
N/A (passive unit)
Input Impedance:
5 Volt
Output Impedance:
100 ohms, balanced
Isolation port to port:
60 dB
Isolation output to input:
bidirectional
Return loss:
>15 dB
Video bandwidth:
>35 MHz
Audio
1 Audio Channel Available: may be used to transport a SPDIF digital
audio signal or a mono audio signal (mono analog signal wil be
attenuated slightly due to lower impedance of the digital audio channel)
Distance
The adapter provides a minimum signal loss and may be used for
high definition distribution with cable lengths up to 200 feet with no
monitor adjustment
