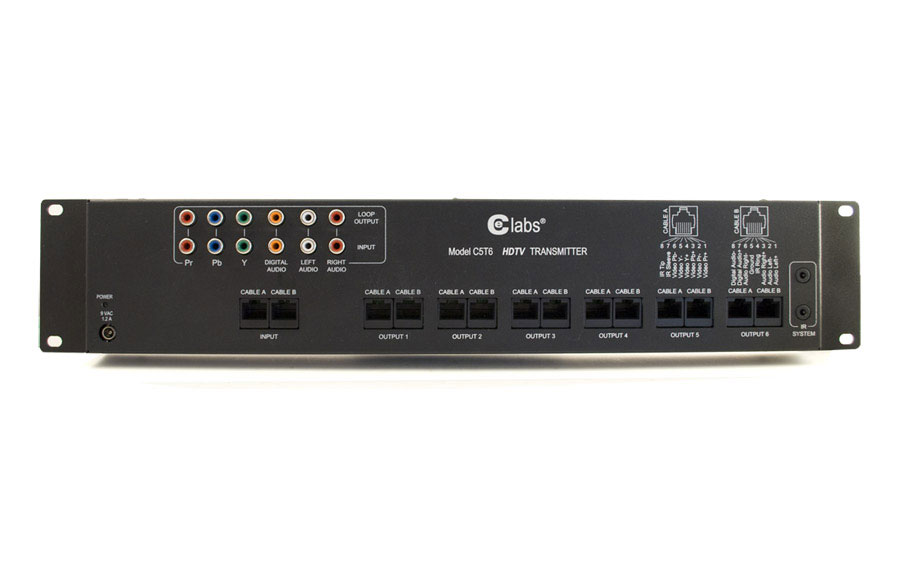

KEY POINTS - Ce labs c5t6 component cat5 transmitter/receiver hub:
Active amplification ensures high quality transmission
Loop output for use of additional CAT5 transmitters
Six CAT5 outputs for additional locations
Discrete passive IR channel for the use of external IR remote control systems
Balanced and unbalanced inputs for maximum versatility
SUMMARY - Ce labs c5t6 Component CAT5 Transmitter/Receiver Hub:
Six Output HD Component + Audio CAT5 Distribution Distribute high definition component or composite video and digital or left and right audio over extended distances using CAT5 wire.
DETAILED SPECS - CE LABS C5T6 COMPONENT CAT5 TRANSMITTER/RECEIVER HUB:
Video (All channels including Component and CAT5):
Nominal input level:
1 Volt peak to peak
Gain:
1 Volt into 75 ohms
(2 Volts Unterminated)
Input Impedance:
75 ohms Component in 100 ohms
twisted pair input
Output Impedance:
75 ohms loop out
100 ohms twisted pair output
Isolation port to port:
>45 dB
Isolation output to input:
>65 dB
Return loss::
>20 dB
Video bandwidth:
>75 MHz
Distance:
Maximum distance varies between
400ft to 500ft depending upon the
type of cable used, type of receiver,
and video resolution
Analog Audio:
Nominal input level:
1 Volt peak to peak
Gain
Unity (slightly reduced at max.
cable length)
>
Input Impedance:
22K ohm Audio IN
100 ohms twisted pair IN
Output Impedance:
1K ohm on Loop Out
100 ohms twisted pair Out
Frequency Response:
20Hz to 100KHz
Signal to Noise:
80 dB @ 1Volt Out
Digital Audio:
Supports standard SPDIF digital audio.
Unity gain when terminated into 75 ohms.
(Composite Video is supported on this port.)
Power:
Requirement: External 9 or 10 Volt AC @ 1200 mA (2.1 mm center) with a
coaxial barrel connector (Power Supply is included)
