HDTV resolution up to 1080p / PC resolution up to 1600 x 1200 60Hz
Compliant with HDMI/HDCP requirements
Comes with a remote control
Features automatic source detection
RS-232 control support
Rugged metal housing
SUMMARY - Ce labs hm41sr HDMI Switcher:

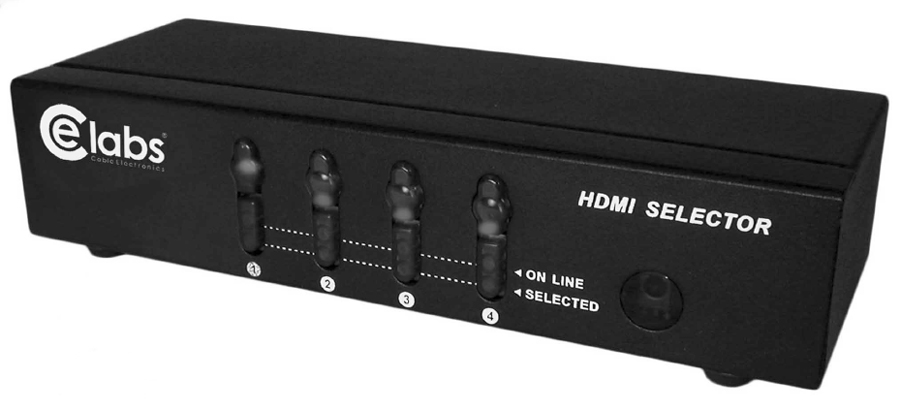

The HM41SR from CE labs is the cost-effective, performance solution that offers 4 x 1 HDMI switching, complete with remote and RS-232 control. Offering compliance with HDMI/HDCP requirements, and featuring automatic source detection, the HM41SR is compact and rugged, and boasts HDTV resolution up to 1080p / PC resolution up to 1600 x 1200 60Hz.
DETAILED SPECS - CE LABS HM41SR HDMI SWITCHER:
HDMI Connection
Input Connector Output Connector Max. Resolution
4 (A - Type Female) 1 (A - Type Female) UXGA, 1080p
LEDs
On Line Selected Select Switch
4 4 4
Control Interfaces
Panel Switch IR Remote Control RS-232C
Yes Yes Yes
Power
Power Adapter (Min.) Housing Dimensions
(W x D x H) Weight
DC 9V 600mA Metal 200 x 76 x 46 mm
(7 3/4 x 3 x 1 3/4 inches) 585 grams (1.3 lbs)
Features
-HDTV resolution up to 1080p / PC resolution up to 1600 x 1200 60Hz -Compliant with HDMI/HDCP requirements -RS-232C Control Support -Automatic Source Detection -Comes with a remote control -1 in 4 out distribution -Rugged metal housing
