Works with XBOX 360, PS3, Blu-ray Players, and Apple TV
Super receiver equalization to compensate up to 20m HDMI cable losses
Automatically switches to active source as well as Manual source selection switch
Signaling rates up to 2.25Gbits in support of 1080P display
Each port supports HDMI or DVI inputs
Compact size: only 2 x 2 x 3/4 inches
SUMMARY - Ce labs hs103 HDMI Switcher:

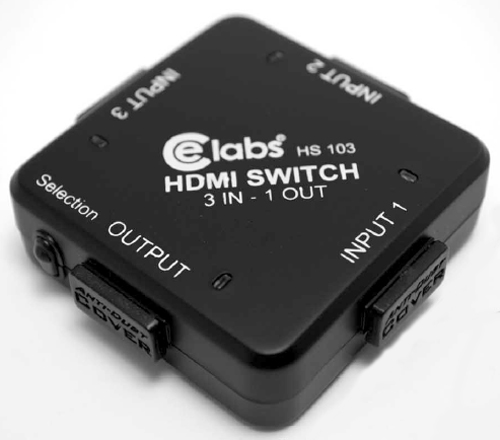

The HS103 from CE labs is a three-input-one-output HDMI switch. It allows switching of up to three HDMI inputs to the output. These three inputs are auto switching, and you can also use the selection button on the front panel to choose the input you want to select. The HS103 has equalization and amplification to ensure HDMI signal’s transmission through long cable without quality loss, and it all comes in a sturdy and compact design that's just two inches wide and requires no AC adapter to operate.
DETAILED SPECS - CE LABS HS103 HDMI SWITCHER:
Operating Temperature Range
-5 to +35°C(-41 to +95 °F)
Operating Humidity Rang
5 to 90 % RH (no condensation)
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Video Format Supported
DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i
Signaling Rates
2.25Gbits x 3
Output Video
HDMI 1.3
Maximum Transmission Distance
<20m (AWG28 HDMI cable)
Dimensions
(W x H x D)
62 x 62 x 19 mm (2 x 2 x 3/4 inches)
Weight
40 grams (0.08 lbs)
Features
-Signaling rates up to 2.25Gbits in support of 1080P display -3dB driver pre-emphasis to compensate for PCB losses -Each port supports HDMI or DVI inputs
-HDCP compliant
-Automatically switches to active source / also offers manual source selection
