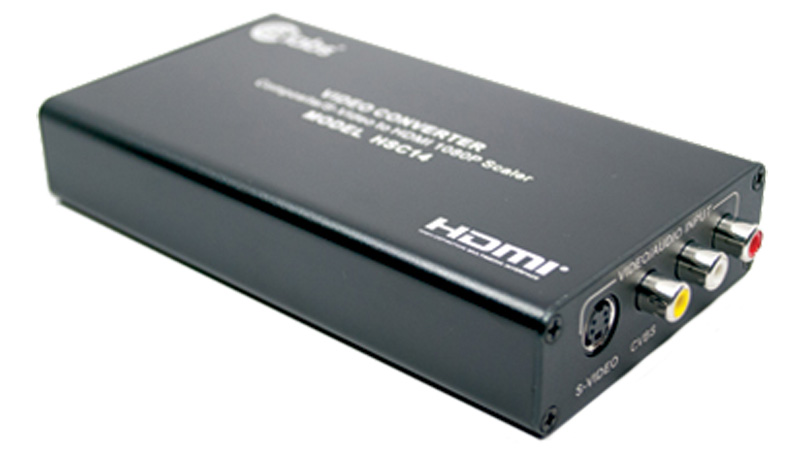

KEY POINTS - CE labs hsc14 composite to hdmi scaler:
Up-scales non-HD video composite or S-Video (analog) with L/R audio
signal to an HDMI output (digital)
Scales up Composite Video or S-video to HDMI 720p and full 1080p
HDMI output is optional at 720P/60Hz or 1080P/60Hz
Input video systems - NTSC and PAL automatically detected and adjusted
SUMMARY - CE labs hsc14 Composite to HDMI Scaler:
The CE labs HSC14 is a Composite/S-Video and Stereo Audio to HDMI 1080p Scaler. It Up-scales non-HD composite or S-Video to HDMI. NTSC and PAL are automatically detected.
DETAILED SPECS - CE LABS HSC14 COMPOSITE TO HDMI SCALER:
Power Supply Input
5VDC/2A 2.1mm
Input Impedance:
Composite (NTSC/PAL)
1VPP 75 Ohm
S Video
1VPP 75 Ohm
1 HDMI Output
720P/60Hz
or 1080P/60Hz
1 Audio Output:
3.5mm stereo
Power
LED
Type
CVBS or S-Video
Push-Button
720P/60Hz
or 1080P/60Hz
Compliance
FCC, CE, Rohs
Input
1 RCA(Yellow), 1 4 pin S-VIDEO
2RCA connectors for Left and Right Audio
1 2.1mm male power connector
Output
1 HDMI output connector
1 Stereo 3.5mm Female connector Stereo
Audio Output to connect earphone or
line level device
Power
I/P (1 2 prong 100-240V at 50/60Hz
@ 0.8A AC adapter) O/P 5 VDC/2A
