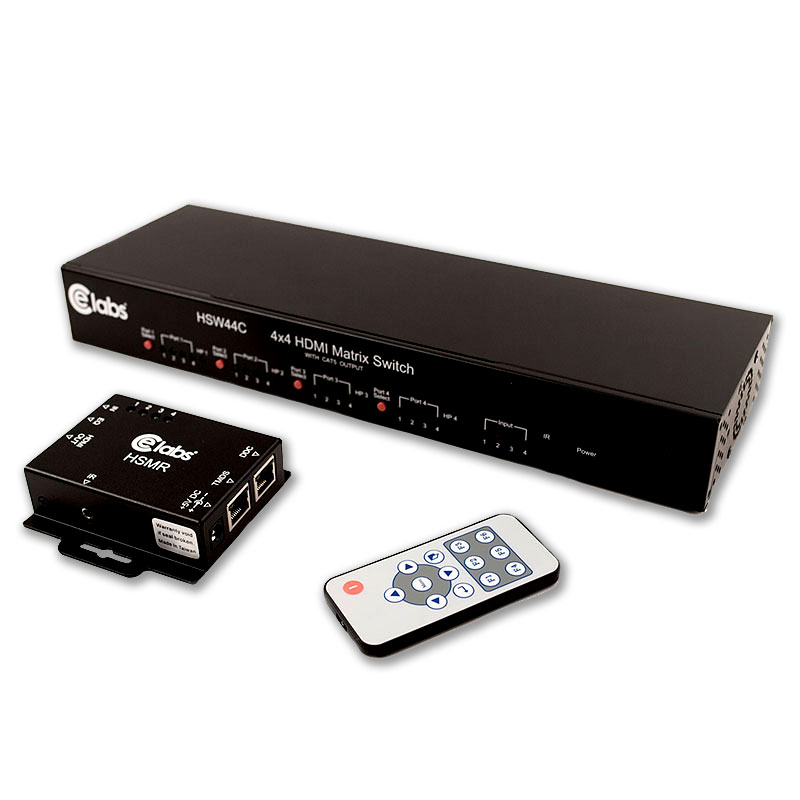

KEY POINTS - Ce labs hsw44c hdmi cat5 matrix switcher 4 x 4:
Compliant with HDMI/HDCP requirements
Allows any source to be displayed on multiple displays at the same time
Supports 7.1 channel digital audio
Supports default HDMI EDID and learns the EDID of displays
Allows control of main matrix center through control line at remote receiver
Extends video signal up to 165 feet over CAT5e at 1080p, 1080i, and 720p
Easy installation with rack-mounting and wall-mounting design
Includes four CAT5 to HDMI receivers
Matrix master can switch any output channels to any HDMI inputs by push button,
IR remote control, or RS-232 control
Control of local HDMI sources such as DVD and TiVo by IR extender through
control path at remote receiver
SUMMARY - Ce labs hsw44c HDMI CAT5 Matrix Switcher 4 x 4:
CE labs HDMI switchers are all HDCP compliant and certified as HDMI 1.3 (Deep Color up to 12 bit), supporting 7.1 channel digital audio. With the ability to extend video signal up to +35M (55M @ lower resolutions) over CAT5e, they allow any source to be displayed on multiple displays at once through easy installation and operation. The matrix master controls output channels and HDMI inputs by push button, IR remote control, or RS-232 control.
DETAILED SPECS - CE LABS HSW44C HDMI CAT5 MATRIX SWITCHER 4 X 4:
Technical:
HSW44C
HSMR
Unit Type:
4x4 true Matrix Transmitter (TX)
Receiver (RX)
HDMI Compliance:
HDMI 1.3c
HDMI 1.3c
HDCP Compliance:
Yes
Yes
Video Bandwidth:
Single-link 225MHz (6.75Gbps)
Single-link 340HMz (6.75Gbps)
Video Support:
480i/480p/720p/1080i/1080p60
480i/480p/720p/1080i/1080p60
Audio support:
Surround sound (up to 7.1ch) or stereo digital audio
Surround sound (up to 7.1ch) or stereo digital audio
HDMI over CAT5
transmission range:
Full HD (1080p) 115ft (35m) [CAT5e] 130ft (40m) [CAT6] HD (720p/1080i) 165ft (50m) [CAT5e] 180ft (55m) [CAT6]
Full HD (1080p) 115ft (35m) [CAT5e] 130ft (40m) [CAT6] HD (720p/1080i) 165ft (50m) [CAT5e] 180ft (55m) [CAT6]
HDMI equalization:
N/A
8-level digital control
TMDS signal:
1.2 Volts [peak-to-peak]
1.2 Volts [peak-to-peak]
>
Input DDC signal:
5 Volts [peak-to-peak, TTL]
5 Volts [peak-to-peak, TTL]
ESD protection:
[1] Human body model ±15kV
[air-gap discharge] & ±8kV [contact discharge] [2] Core chipset ±8kV
[1] Human body model ±15kV
[air-gap discharge] & ±8kV
[contact discharge]
[2] Core chipset ±8kV
PCB stack-up:
4-layer board [impendence control]
Differential 100Ω; single 50Ω
Input:
4x HDMI
1x RS-232
1x RJ-45 [TMDS] 1x RJ-45 [DDC] 1x IR socket for IR receiver
Output:
4x RJ-45 [TMDS]
4x RJ-45 [DDC]
5x IR socket for IR blaster
1x HDMI
HDMI Input selection:
Push button/IR remote
control/RS-232
Push button/IR remote
HDMI Source control:
Controllable via IR control path
form IR receiver at receiver sites
Controllable via IR control path
form IR receiver at receiver sites
