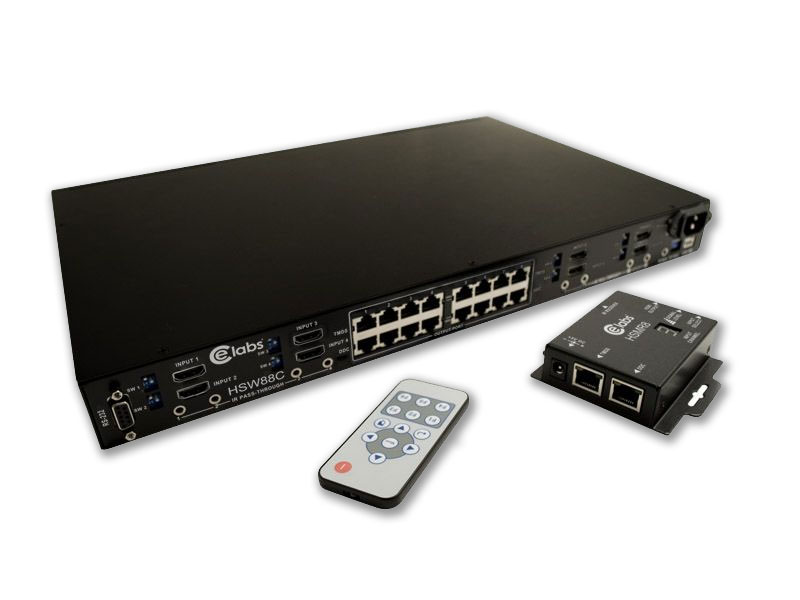

KEY POINTS - Ce labs hsw88c hdmi cat5 matrix switcher 8 x 8:
HDMI 1.2a/1.3c compliant
HDCP compliant
Any source to be displayed on multiple displays simultaneously
HDMI inputs by push button, IR remote control, or RS-232
Extends video signal up to 35m (115 feet) over Cat5e at 1080p HDMI
1.2a/1.3c compliant
Supports 7.1 channel digital audio
Matrix master can switch every output channel to any input
Extends video signal up to 35m (115 feet) over CAT5e at 1080p
Allows control of main matrix center through control line at remote receiver
Allows control of local HDMI sources such as DVD and TiVo® by
IR extender through control path at remote receiver
Easy installation with rack-mounting and wall-mounting designs for master and
receiver respectively
Network control via RS-232 or USB interface
Remote powering of receivers
Remote has digital readout of selected channel
SUMMARY - Ce labs hsw88c HDMI CAT5 Matrix Switcher 8 x 8:
CE labs HDMI switchers are all HDCP compliant and certified as HDMI 1.3 (Deep Color up to 12 bit), supporting 7.1 channel digital audio. With the ability to extend video signal up to +35M (55M @ lower resolutions) over CAT5e, they allow any source to be displayed on multiple displays at once through easy installation and operation. The matrix master controls output channels and HDMI inputs by push button, IR remote control, or RS-232 control.
DETAILED SPECS - CE LABS HSW88C HDMI CAT5 MATRIX SWITCHER 8 X 8:
Technical:
HSW88C
HSMR8
Unit Type:
8x8 true Matrix Transmitter (TX)
Receiver
HDMI Compliance:
HDMI 1.3c
HDMI 1.3c
HDCP Compliance:
Yes
Yes
Video Bandwidth:
Single-link 225MHz (6.75Gbps)
Single-link 225HMz (6.75Gbps)
Video Support:
480i/480p/720p/1080i/1080p60
480i/480p/720p/1080i/1080p60
Audio support:
Surround sound (up to 7.1ch) or stereo digital audio
Surround sound (up to 7.1ch) or stereo digital audio
HDMI over CAT5
transmission range:
Full HD (1080p) – 35m (115ft) [CAT5e] 40 (130ft) [CAT6] HD (720p/1080i) – 50m (165ft) [CAT5e] 55m (180ft) [CAT6]
Full HD (1080p) – 35m (115ft) [CAT5e] 40 (130ft) [CAT6] HD (720p/1080i) – 50m (165ft) [CAT5e] 55m (180ft) [CAT6]
HDMI equalization:
N/A
8-level digital rotary control
TMDS signal:
1.2 Volts [peak-to-peak]
1.2 Volts [peak-to-peak]
>
Input DDC signal:
5 Volts [peak-to-peak, TTL]
5 Volts [peak-to-peak, TTL]
ESD protection:
[1] Human body model – ±15kV
[air-gap discharge] & ±8kV [contact discharge] [2] Core chipset – ±8kV
[1] Human body model – ±15kV
[air-gap discharge] & ±8kV
[contact discharge]
[2] Core chipset – ±8kV
PCB stack-up:
4-layer board [impendence control]
Differential 100Ω; single 50Ω
Input:
8x HDMI 1x RS-232 1 x USB
1x RJ-45 [TMDS] 1x RJ-45 [DDC] 1x IR socket for IR receiver
Output:
8x RJ-45 [TMDS] 8x RJ-45 [DDC] 9x IR socket for IR blaster
1x HDMI
HDMI Input selection:
Push button/IR remote control/RS-232/USB
Push button/IR remote
HDMI Source control:
Controllable via IR pass-through from IR receiver at RX to IR blaster at TX
Controllable via IR pass-through from IR receiver at RX to IR blaster at TX
