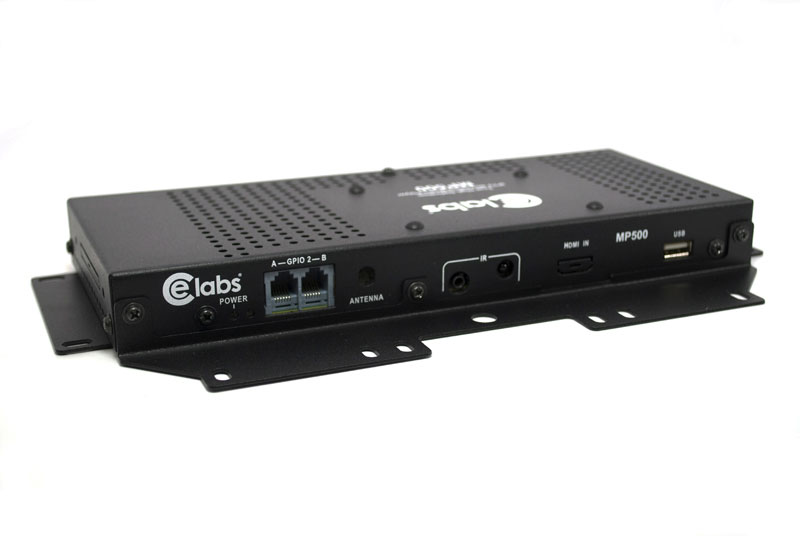

Celabs MP500 Ultra High Definition Digital Media Player

OVERVIEW - Ce labs mp500 Ultra High Definition Media Player:

The Ce Labs MP500 is a high quality digital media player solution that allows users to play content from multiple sources such as a solid state memory device, hard drive, or IP streams from Ethernet or ATSC tuner (MP500T model).

The Ce Labs MP500 has an extremely effective performance versus cost ratio and provides a great return on investment. It is available in three models:

MP500R
The most affordable model capable of driving a wide variety of displays at up to 1080P resolution at bit rates up to 40 Mbps, comes with a 4GB CF card and the Quicksign Pro Software.

MP500T
The Ce labs MP500T is a commercial grade, application specific graphics processor, specifically designed for driving digital signage. It includes an additional ATSC Tuner. The MP500T also includes a 4GB CF card and the Quicksign Pro Software.

MP500B
Additional to the standard capabilities of the MP500R, The Ce labs MP500B features a General Purpose Input/Output (GPIO) Button Set that allows viewers to interact with push-button control to view the content that they desire. The Ce Labs MP500B is capable of handling up to 6 buttons with quick transition time between digital signage clips. The MP500B also includes a 4GB CF card and the Quicksign Pro Software.

KEY POINTS - Celabs MP500 Ultra High Definition Digital Media Player:

• High definition real time decoding up to 25 Mbps over Ethernet
• Multi-layering: video & web browser
• Integrated event logging
• UDP/RTP multicast stream MPEG2 & H.264 decoding
• SNMP Network Control API
• Multilayer support for browser overlays
• Available with internal compact flash storage
• Integrated play list
  • Media files
  • Programmable durations
  • Loop & schedule functions
  • Multiple play list support

DETAILED SPECS - CELABS MP500 ULTRA HIGH DEFINITION DIGITAL MEDIA PLAYER:

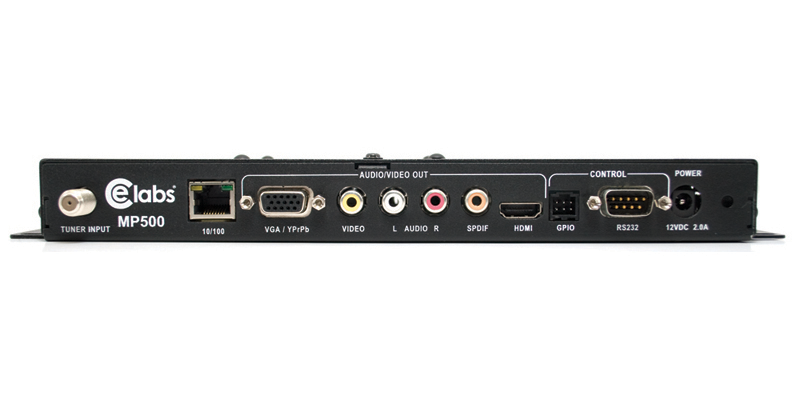

• Video Output:

  • Component: 480p, 720p, 1080i, 1080p
  • HDMI: 480p, 720p, 1080i, 1080p
  • Composite: 480i
  • Output: Simultaneous output, HDMI, Component, Composite

  Audio Output:

  • L/R Stereo: R/L RCA
  • SPDIF: coaxial, RCA

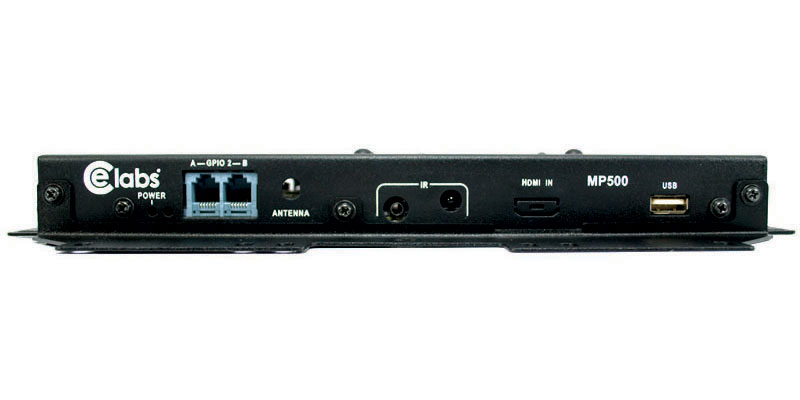

  Control I/O:

  • GPIO (General Purpose Input/Output) (MP500B only)
  • Custom program can allow 2 outputs and up to
    6 inputs via 2 RJ-12 connectors
  • RS-232 Commercial Monitor Control
  • IR Extender (on front panel)

  Network Connection:

  • LAN: 10/100 BASE-T
  • WiFi: 802.11 b/g (optional)

  Video Format Support:

  • MPEG2: MP@HL (45 Mbps max HD)
  • MPEG4: part 2 (20 Mbps max HD), part 10 H.264 (25 Mbps max HD)
  • Composite: 480i

  Graphics Format:

  • JPEG: on media layer (recommended resolution is 1920 x 1080)
  • Browser support: HTML, BMP, TIFF, GIF, JavaScript

  Accessories:

  • Remote control
  • Component cable
  • 2 meter HDMI cable

  Bandwidth: Broadband

  • DSL, Cable, T1 with at least 128 Kbps
  • VSAT may work with custom setup

  TCP/IP Address:

  • LAN: Any fixed IP address for each player
  • WAN: Fixed public IP address for each player or router with
    its port forwarding enabled if players are behind a router

  Required Ports for SNMP API:

  • Player port is fixed at 161
  • Source port 161, Player IP, Destination Port 161

  Storage Options:

  • Standard: 4 GB CF Card
  • Optional: 8, 16, 32 GB CF Card
  • USB Port: Unit can access content on a USB drive inserted into
    the front panel port

  Network Protocol Support:

  Internet: IP, TCP, UDP, ICMP, ARP, DHCP, HTTP, FTP, IGMP, RTP, SNMP

  Power:

  • Power Supply: 100-240VAC IN/12V, 2A out
  • Power dissipation: 7 watts

  Environment:

  • Operating temperature: 0 to 40°C
  • Operating Humidity: 80% max, relative humidity, non-condensing

  General:

  • 1.1" H x 10" W x 4.25" D
  • Unit Weight: 2.0 lbs

Manufacturer Page: www.celabs.net
