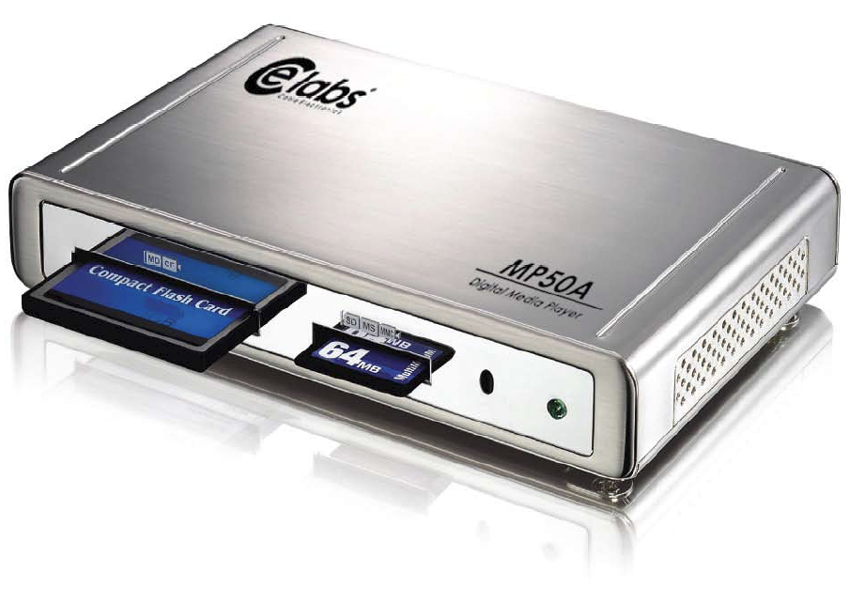

KEY POINTS - MP50A Ce labs 480i Digital Media Player:
Easy installation on the back of most LCD panels
Comes with a remote control and offers simple and friendly on-screen interface
Supported media cards include: Compact Flash type I/II, IBM MicroDrive, MS, MS-Pro, MS-Duo, SD and MMC
Playback formats for video: MPEG-1, MPEG-2, MPEG-4
Playback formats for audio: MP3, WAV
Excellent for digital signage in stand-alone applications
Available as board-only for simple integration into POP displays
Real time clock allows for schedule of content delivery
SUMMARY - Ce labs mp50a 480i Digital Media Player:
The MP50A from CE labs is an entry-level advertising solution that allows the user to play content from an array of media cards on to a display screen. With a host of features and semi-customizable software, it is an extremely cost-effective digital signage solution. The integrated
real-time clock allows you to schedule content delivery to get your message across when you need it most.
DETAILED SPECS - CE LABS MP50A 480I DIGITAL MEDIA PLAYER:
Product Dimensions
14.0 x 8.5 x 2.6 cm (5.51 x 3.35 x 1.02 inches)
Package Contents
• MP50A digital signage adapter • External power adapter; Input 100-240V, Output +12V/1A • Composite AV and S-Video cables • Infrared remote control • Manual
Playback Formats
Supported Media Cards
Playback Formats
Compact Flash type I/II, IBM MicroDrive, MS, MS-Pro, MS-Duo, SD and MMC
• Video: MPEG-1, MPEG-2, MPEG-4 (ASF simple profile 320 x 240 video) • Audio: MP3, WAV (MP3 minimum 32 Kbps, maximum 256 Kbps) • Photo: JPEG, Motion JPEG (AVI) (JPG minimum 16 x 16 pixels, maximum 5120 x 3840 pixels) (Motion JPG maximum 10 fps) Page
Output Interface
Composite Video S-Video VGA (DSUB - 15, 720 x 480) Stereo - Audio
