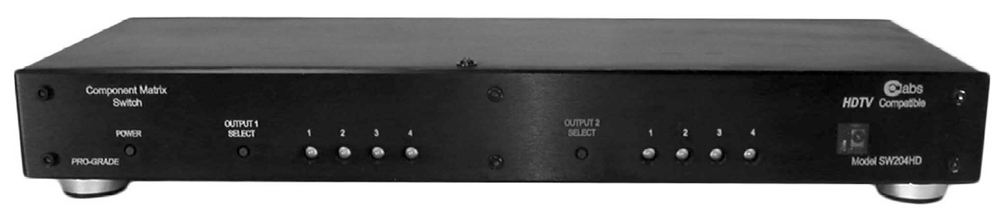

CE LABS SW204HD 4 x 2 Component HDTV Matrix Switcher
KEY POINTS - SW204HD Ce labs 4 x 2 Component HDTV Matrix Switcher:
View four different sources on each monitor
Source and monitor selection by IR Remote, RS232 or USB
Unit learns IR Commands for use with other IR remote controls
Also features digital and left/right audio
Discrete remote commands by RS232 or USB
High bandwidth and low crosstalk provides maximum picture performance
Rack mount(s) included
Weighs less than four pounds
SUMMARY - Ce labs sw204hd 4 x 2 Component HDTV Matrix Switcher:
The SW204HD Component HDTV Matrix Switcher from CE labs with digital and left/right audio is the ideal and cost effective solution that lets you view up to four different sources on each monitor, and with high bandwidth and low cross talk functionality, maximum picture performance is guaranteed. As an added bonus, the SW204HD also lets you source and monitor selections via IR remote, RS232, USB, or manually on the front panel.
DETAILED SPECS - CE LABS SW204HD 4 X 2 COMPONENT HDTV MATRIX SWITCHER:
Video
Nominal Input Level
1 Volt peak to peak
Gain
1 Volt into 75 ohms (2 Volts Unterminated)
Input Impedance
75 ohms
Output Impedance
75 ohms
Isolation Port to Port
>40 db
Isolation On to Off
>60 db
Return Loss
>18 db
Video Bandwidth
>100 MHz (HDTV requires 37 MHz min.
Audio
Analog
Nominal Input Level
1 Volt peak to peak
Gain
Unity (one to one)
Input Impedance
22k ohm
Output Impedance
100 ohm
THD
0.05%
Frequency Response
20 Hz to 100 kHz
Channel Separation
>75 db
Port to Port Isolation
>50 db
Output to Input Isolation
60 db
Signal to Noise
80 db 2 Volts out
Digital
Supports Standard SPDIF digital audio (if not used for digital audio, this port can be used to switch standard video)
Power
Requirement
External 9 or 10 Volt AC @ 100mA with a 2.1mm center diameter coaxial connector
Accessories
1 Power Supply, 2 Rack Mount Ears, 1 Application CD, 1 IR Remote Control, 1 Manual
