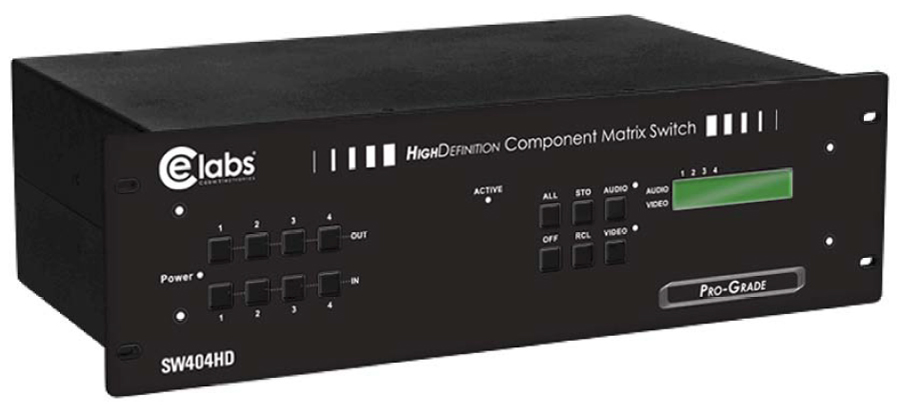

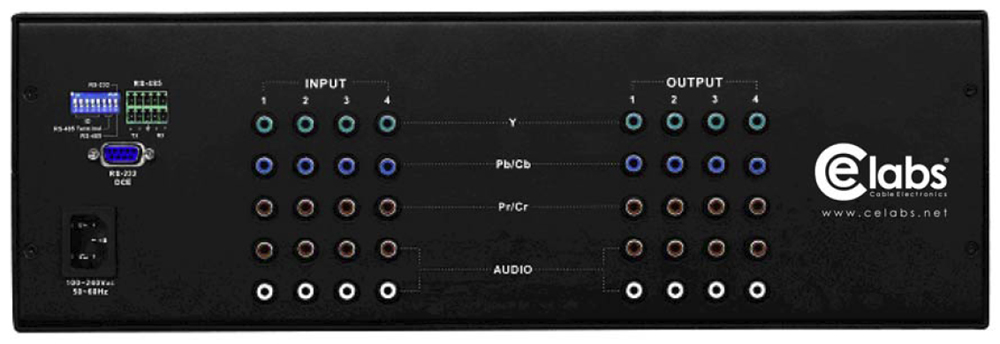

CE LABS SW404HD 4 x 4 Component HDTV Matrix Switcher
KEY POINTS - SW404HD Ce labs 4 x 4 Component HDTV Matrix Switcher:
High bandwidth sources on each monitor
Source and monitor selection by RS232, RS-485 or manual selection
Component Matrix Switcher also features left/right audio
Custom application for remote PC control
Integrated rack mounts with 4 rack spaces
Discrete remote commands by RS232 or RS485
Direct channel access buttons
12 watt power consumption
SUMMARY - Ce labs sw404hd 4 x 4 Component HDTV Matrix Switcher:
The SW404HD Component HDTV Matrix Switcher from CE labs with left/right audio along with RS-232 and RS-485 control is the premium device that lets you view up to four different sources on each monitor, and with high bandwidth and low cross talk functionality, peak picture performance is never in doubt. Additional value-added features include direct channel access buttons, custom application for remote PC control, and integrated rack mounts.
DETAILED SPECS - CE LABS SW404HD 4 X 4 COMPONENT HDTV MATRIX SWITCHER:
Video
Input/Output Connectors
4 Channels RCA Female Connectors
Signal Strength
2.5Vp-p
Impedance
75 ohms
Audio
Input/Output Connectors
4 Channels RCA Female Connectors
Signal Type
Stereo, Balanced or Unbalanced
Input Impedance
10k-ohms
Output Impedance
100-ohms
Max. Input Level
+19.5dBu
Max. Output Level
+19.5dBu
Control Type
Serial Control Connectors
RS-232, 9-Pin Female D Type Connector
Baud Rate and Protocol
9600 bps, no odd or even parity, 8-bit Transmission, 1-bit Stop,
Serial Control Port Structure
TX, RX, GND
Control Procedures
AV Matrix Application
Parameters
Power
100VAC - 240AC, 50-60 Hz, International Auto-Switch
Temperature
Storage, Operating Temp: -40 degrees C - +85 degrees C
