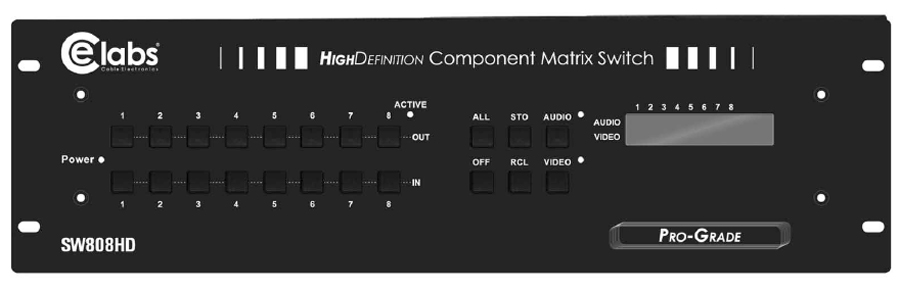

CE LABS SW808HD 8 x 8 Component HDTV Matrix Switcher
KEY POINTS - SW808HD Ce labs 8 x 8 Component HDTV Matrix Switcher:
High bandwidth and low crosstalk provides maximum picture performance
View eight different sources on each monitor
Component Matrix Switcher also features left/right audio
Source and monitor selection by RS232, RS-485 or manual selection
Custom application for remote PC control
Offers direct channel access buttons
Integrated rack mounts with four rack spaces
12 watt power consumption
SUMMARY - Ce labs sw808hd 8 x 8 Component HDTV Matrix Switcher:
The SW808HD Component HDTV Matrix Switcher care of CE labs with left/right audio along with RS-232 and RS-485 control is the ultimate device that lets you view up to eight different sources on each monitor. Featuring high bandwidth and low cross talk functionality, picture performance is nothing short of extraordinary, and additional value-added features include direct channel access buttons, custom application for remote PC control, and integrated rack mounts.
DETAILED SPECS - CE LABS SW808HD 8 X 8 COMPONENT HDTV MATRIX SWITCHER:
Video
Input/Output Connectors
8 Channels RCA Female Connectors
Signal Strength
1 Volt Terminated
Impedance
75 ohms
Audio
Input/Output Connectors
8 Channels RCA Female Connectors
Signal Type
Stereo, Balanced or Unbalanced
Input Impedance
10k-ohms
Output Impedance
100-ohms
Max. Input Level
+19.5dBu
Max. Output Level
+19.5dBu
Control Type
Serial Control Connectors
RS-232, 9-Pin Female D Type Connector
Baud Rate and Protocol
9600 bps, no odd or even parity, 8-bit Transmission, 1-bit Stop,
Serial Control Port Structure
TX, RX, GND
Control Procedures
AV Matrix Application
Parameters
Power
100VAC - 240AC, 50-60 Hz, International Auto-Switch
Temperature
Storage, Operating Temp: -40 degrees C - +85 degrees C
