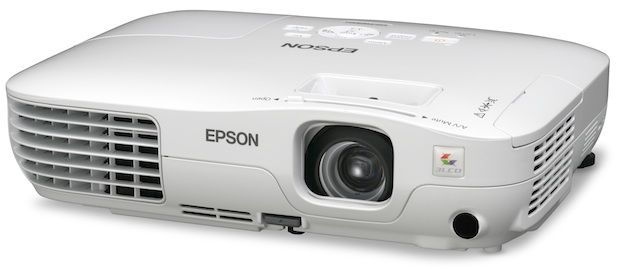

OVERVIEW - Epson 705hd Home Theater Video Projector with an HDMI Input and 2500 ANSI Lumens:
Epson 705HD Home Theater Video Projector. Get amazing big-screen entertainment with the Epson PowerLite Home Cinema 705HD. This affordable, 720p, widescreen projector makes it easier than ever to enjoy spectacular movies, games and sporting events in the comfort of your own home. With its 3LCD, 3-chip technology, you get rich, vibrant images for a true cinematic adventure. And, with 2500 lumens of color and white light output1, images will shine bright in any room. Invite the neighbors over and experience high-def movies in a whole new way. Or, share photos from your computer via the USB connection. With four color modes especially optimized for video, the Home Cinema 705HD is ready for any event. Setup is simple with its 1.2x optical zoom. And, it’s easy for anyone to install. The Home Cinema 705HD is even energy efficient with a long-life E-TORL lamp that lasts up to 5000 hours1. That means you save on expenses, without sacrificing quality. So, bring big-screen entertainment home with the Epson PowerLite Home Cinema 705HD.
FEATURES - Epson705hd home theater video projector with an hdmi input and 2500 ansi lumens:
2500 lumens color/white
720p Hi-Definition performance
Contrast ratio up to 3000:1
3LCD, 3-chip technology
Energy-efficient, E-TORL lamp
HDMI and USB connections
1.2x optical zoom
Auto keystone ±30 degrees
Four color modes optimized for video viewing
2-yr limited warranty
SPECIFICATIONS - EPSON 705HD HOME THEATER VIDEO PROJECTOR WITH AN HDMI INPUT AND 2500 ANSI LUMENS:
Input Signal
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/SECAM
Display Performance
NTSC: 480 lines
PAL: 560 line
(Depends on observation of the multi-burst pattern)
Interfaces
Computer/component video:
D-sub 15 pin x 1
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (White/Red)
USB connector: Type A x 1
USB connector: Type B x 1 (service only)
HDMI port
Projection System
Epson 3LCD, 3-chip optical engine
Projection Method
Front/rear/ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
1,024,000 dots (1280 x 800) x 3
White Light Output
2500 lumens1 (ISO 21118 Standard)
Color Light Output
2500 lumens1
Aspect Ratio
16:10
Native Resolution
1280 x 800
Resize
640 x 480 (VGA), 1024 x 768 (XGA),
1152 x 864 (SXGA), 1400 x 900 (WXGA+),
1440 x 900 (WSXGA), 1680 x 1050
(WSXGA+), 1400 x 1050 (SXGA+),
1600 x 1200 (UXGA)
Throw Ratio Range
1.47 – 1.77 (16:10)
1.77 – 2.12 (4:3)
Projection Lens
Type
Manual zoom/Manual focus
F-number
1.58 – 1.72
Focal Length
16.9 mm – 20.28 mm
Zoom Ratio
Optical zoom 1.0 – 1.2
Lamp
Lamp Type
200 W UHE (E-TORL™ – Epson Twin Optimized Reflection Lamp)
Lamp Life2
Up to 5000 hours (Eco Mode)
Up to 4000 hours (Normal Mode)
Screen Size: (Projected Distance)
27" – 270" (2.8’ – 28.6’)
Keystone Correction
Automatic
Vertical: ± 30 degrees
Keystone Correction Manual
Vertical: ± 30 degrees
Contrast Ratio
Up to 3000:1
Color Reproduction
16.77 million colors
Sound Output
1 W (Mono)
Operating Temperature
41 ° to 95 °F (5 ° to 35 °C)
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz
Power Consumption
244 W, 3 W standby
Dimension
Including feet: 11.6" x 9.0" x 3.1"
Excluding feet: 11.6" x 9.0" x 3.0"
Weight
5.1 lb/2.3 kg
Fan Noise
34 dB (Normal Mode)
29 dB (Eco Mode)
Remote Control
Features
Source search selection, HDMI, slideshow, USB display, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions
Security
Kensington®-style lock provision, padlock and security cable hole
Warranty
Two-year projector limited warranty, Epson Home Service program, Epson PrivateLine® dedicated toll-free support and 90-day lamp limited warranty.
Supplied Accessories
Power cable, computer adapter, projector remote control, batteries, user manual CD, Quick Setup Sheet, PrivateLine support card, registration card
