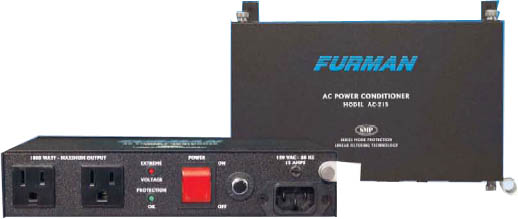

Furman AC215 power line conditioner and noise
filter
SUMMARY - Furman Ac215
Power Line Conditioner
For over
30 years, Furman has pioneered the development of AC power products for the
most demanding audio, video, and broadcast professionals. Furman’s Series
Mode Protection (SMP) delivers the purest AC power and the most
comprehensive protection available – going far beyond what is found in
traditional surge strips. With Furman’s AC-215, everyone can reap the
benefits of unrivaled power purification and unequalled surge protection.
Today’s overworked; outdated power grid delivers poor quality AC power. When
connecting sensitive equipment to regular power outlets, AC noise masks and
distorts critical signal information which cripples performance. This is why
it’s more important than ever to purify or clean the AC powering your
sensitive audio/video equipment Furman’s SMP circuit incorporates Linear
Filtering Technology (LiFT) to insure that flat screen televisions,
projectors, processors, or any sensitive audio/video components are fed
linearly filtered AC power. This dramatically reduces noise, ensuring
consistent, peak performance from your equipment.
Typical AC filters feature
antiquated non-linear circuits. Though these multiple stage filters or power
cleaners reduce some noise, they do so unevenly. In fact, they can add noise
to your power line due to their filter’s excessive resonant peaking. With
Furman’s proprietary Linear Filtering Technology (LiFT), AC noise is
suppressed evenly, assuring maximum performance from your system.
Additionally, today’s power grid commonly experiences numerous electrical
surges and spikes on a daily basis. At best, these irregularities can
degrade your equipment’s performance, and, at worst, can severely damage
your entire system. Furman’s SMP circuit offers the highest degree of
protection available without sacrificing itself or any of its components.
Another feature that is unique to Furman’s SMP circuit is automatic
extreme-voltage shutdown.
Extreme voltages are statistically the most
common, damaging AC event. The extreme-voltage shutdown circuit
automatically turns off the AC-215 when it is fed 137 volts or higher,
protecting itself and connected equipment from the extreme voltage. Only
Furman offers this degree of protection! Conventional AC conditioners
employing older technologies leak voltage to circuit ground, which can in
fact, aid in damaging sensitive digital circuits such as computer
processors. Furman’s new technology, however, never directs voltage to the
circuit ground further ensuring the safety of your equipment. This compact
unit includes hardware for easy installation. It’s ideal for mounting
directly onto the back of a plasma or LCD screen, but works in any
application where discretely located, remote power purification and
protection are needed.
KEY POINTS - furman ac215 power conditioner
Advanced Linear Filtering Technology assures unequalled audio/video
clarity
Series Mode Protection for maintenance-free AC surge suppression
Extreme voltage shutdown guards your valuable equipment from dangerous
wiring faults
Zero ground contamination circuitry protects critical video circuits
Compact chassis design easily attaches to any flat screen television mount
DETAILED SPECS - Furman
AC215 Line Conditioner / Noise Filter
Transverse (Differential) Mode: >40 dB from 10Khz. - 100 kHz. >80 dB
from 100 Khz. – 1GHz.(Linear attenuation curve from 0.05 – 100 ohms line
impedance)
Transient Voltage
Surge Suppression:
120
VAC - Series Mode Protection - Non-Sacrificial with Zero Ground
Contamination. (188 V peak clamping @ 6000V 3000A input) Extreme Voltage
Shutdown (>135 VAC)
Dimensions:
1.75”
H x 5” W x 8.5” D
Weight:
3
lbs.
Safety Agency
Listing:
C-UL (UL standard
#1449) pending)
Warranty:
The Furman AC-215
is protected by a three year limited warranty covering defects in
materials and workmanship. (see manual for details)
