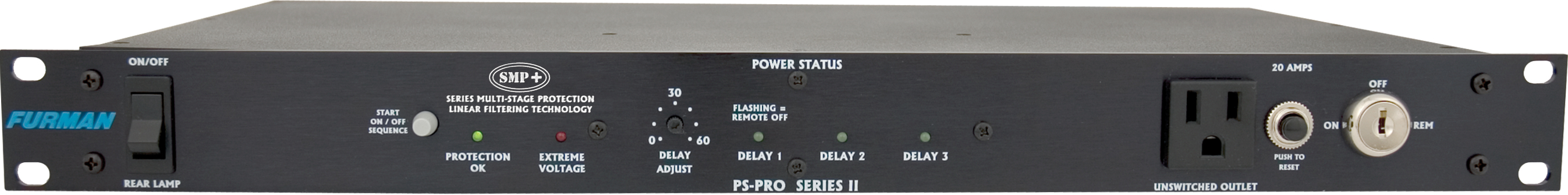

FURMAN PS-PRO II 8-Outlet Pro Audio Series Power Conditioner / Sequencer
KEY POINTS - PSPROII Furman 8-Outlet Pro Audio Series Power Conditioner / Sequencer:
SMP+ provides the highest level of protection available
LiFT significantly reduces AC line noise
E.V.S. protects equipment from dangerous overvoltage conditions
Zero ground contamination circuitry assures delivery of pure AC
Six sequenced rear panel outlets (in 3 groups), two switched rear panel outlets, and one front panel switched outlet
Momentary and Maintained sequencing via rear panel terminal block or front panel switch
20 amp rating with circuit breaker
BNC connector on the rear panel allows you to attach any standard 12V gooseneck lamp to illuminate the rear of your rack
Three year limited warranty
SUMMARY - Furman psproii 8-Outlet Pro Audio Series Power Conditioner / Sequencer:
The most widely recognized and trusted name in AC power conditioning is proud to introduce the PS-PRO II power conditioner / sequencer, featuring Furman's revolutionary SMP+ technology. Furman's Series Multi-Stage Protection Plus (SMP+) circuit also features our exclusive Linear Filter Technology (LiFT) coupled with Extreme Voltage Shutdown (EVS) and a high current TVZ-MOVs. Together, these technologies comprise what is, without question, the world's most advanced and comprehensive transient voltage surge protector
DETAILED SPECS - FURMAN PS-PRO II 8-OUTLET PRO AUDIO SERIES POWER CONDITIONER / SEQUENCER:
Current rating:
20 amps
Operating Voltage:
90 to 140 VAC
Over Voltage Shutdown:
140 VAC typically
Spike Protection Modes:
Line to neutral, zero ground leakage
Spike Clamping Voltage
188 VAC peak @ 3,000 Amps, 133 VAC RMS
(tested to UL-1449 and USA / CIDA A-1-1, 6,000 VAC @ 3,000 Amps)
Response time:
1 nanosecond
Maximum surge current:
6,500 amps
Noise attenuation:
10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB
@ 10 MHz
Linear attenuation curve from 0.05 - 100 Ohms line impedance
Dimensions:
1.75” H x 19” W x 10.5” D.
Weight:
11 lbs. (5 kg.)
Construction:
Steel chassis, .125” brushed and black
anodized aluminum front panel; glass epoxy printed circuit
boards
