G-Vision J1PS Touch Screen LCD Monitor

10 inch Touchscreen SVGA TFT LCD Display
with eTURBOTOUCH 6-wire Resistive touch interface

no longer available

Back to GVision Touch Screen Main Page

Resistive - Reacts to any type of touch including: finger, credit card, stylus
Capacitive - Reacts only to Bare Finger or Designated Stylus

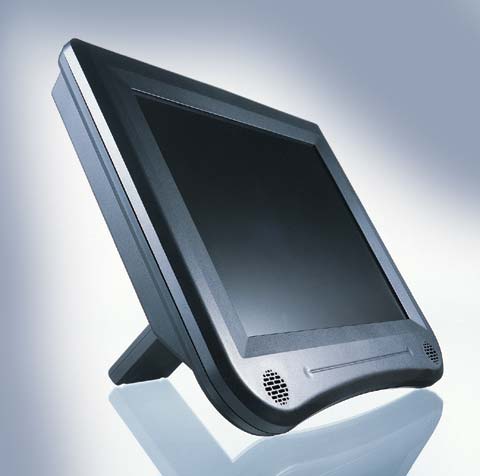

Introducing the GVision J1PS 10.4" Touch Screen LCD monitor - the G-Vision J1PS LCD monitor deliver key benefits that are unique to LCD monitors like a small footprint, low energy consumption, and flicker free viewing to reduce eyestrain, but the GVision J1PS LCD monitor's small form factor allows it to be installed in POS and tight spaces.

10.4" SVGA Touchscreen Display for high-end applications - Touchscreen options include Resistive, Capacitive & Surface Acoustic Wave touch screens.

• 10.4" TFT display with SVGA resolution

• 230-nit brightness
• 262K colors
• 300:1 contrast ratio

• Internal speakers

SPECIFICATIONS - gvision j1ps touchscreen svga lcd display

Screen Size 10.4-inch diagonal

Resolution SVGA (800x600)

Aspect Ratio 4:3

Contrast Ratio 300:1

Colors 262,000

Weight 6 lbs / 3 kg

Dimensions 10.8in W 9.25in H 1.75in D

Power Input AC 90~264V, 50~60Hz; Output DC 12V / 3.5A

Inputs D-sub 15 pin

Resolution Capabilities SVGA native

Video Standards N/A

Control Panel Front controls: Power, Menu/Select, Adjustment +/-
