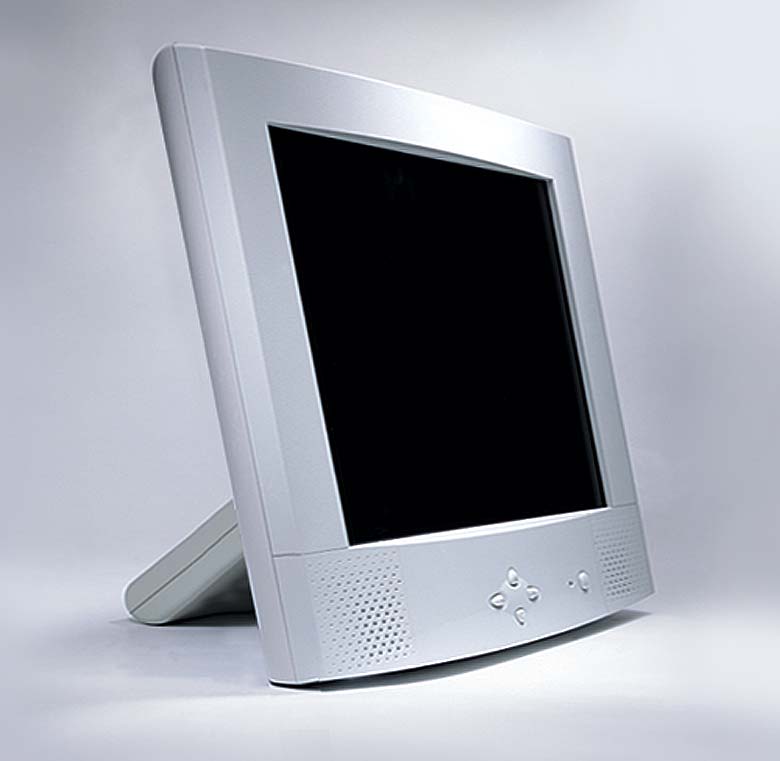

G-Vision J7PH Touch Screen LCD Monitor

17 inch SXGA TFT LCD Display
with ELO ACCUTOUCH 5 Wire Resistive touch interface

no longer available

Back to GVision Touch Screen Main Page

Resistive - Reacts to any type of touch including: finger, credit card, stylus
Capacitive - Reacts only to Bare Finger or Designated Stylus

17.1-inch LCD touchscreen, with super sharp SXGA (1280 x 1024) resolution, Super-high 85Hz refresh rate, Internal speakers, 250-nit brightness and 160-degree viewing angles. Touchscreen options include Resistive, Capacitive, Surface Acoustic Wave and Infrared.

• 17.1" LCD touchscreen, with super sharp SXGA (1280 x 1024) resolution

• Super-high 85Hz refresh rate

• Internal speakers

• 250-nit brightness
• 16.7M display colors

• 160-degree viewing angles, L/R, T/B

SPECIFICATIONS - gvision j7ph sxga lcd display

Screen Size 17.1-inch diagonal

Resolution SXGA (1280 x 1024)

Aspect Ratio 4:3

Contrast Ratio 350:1

Colors 16.7 million colors

Weight 15.8 lbs / 7 kg

Dimensions 17.51in W 16.89in H 8.07in D

Power Embedded AC input power system, universal 90-264 V

Inputs D-sub 15 pin

Resolution Capabilities SXGA 60Hz native

Video Standards N/A

Control Panel Power, menu, select, adjust, PIP, zoom
