The Hitachi CMP4201u
plasma tv flat panel monitor
is a second generation display that incorporates the ALIS system. This impressive
monitor boasts a resolution of 1024 x 1024, with a contrast ratio of 1000:1.
The Hitachi CMP-4201U plasma display's sharp and vivid definition will set your presentations or advertising
apart, making your display a real point of interest. With its multi-scan technology
the Hitachi CMP4201U automatically adjusts to VGA, SVGA, XGA, SXGA, or UXGA.
This flat panel display also has the ability to accept a
wide range of video signal formats and can be connected to other home
electronic devices as well as professional video cameras, digital
broadcasting adaptors and PC's. Bridging the gap between home electronics
and business applications, the Hitachi CMP4201U flat panel display plasma TV
is perfect for multiple applications, featuring portrait mode and true HDTV
compatibility. Whether it is to increase the impact of your presentation or
add a WOW value to your home theater, the Hitachi CMP-4201u flat panel
monitor is the perfect plasma display.
Enhancing the
Hitachi CMP4201u's video capabilities is Hitachi's Motion Adaptive
Progressive Scan technology. In addition to the exceptional video qualities,
this technology also provides a digital black enhancement and noise
reduction filter. Together, these features enable richer blacks and higher
contrast for improved image output.
The Hitachi CMP4201U plasma tv flat panel monitor chassis has been
enhanced to include a thinner bezel and tinted faceplate, providing a more
sophisticated look and sleek styling. Additionally, the unit features a
160-degree viewing angle along with a 16:9 aspect ratio, and can be mounted
horizontally or vertically for flexible installation.
Hitachi CMPAV-14
(Included) Video Card Functions:

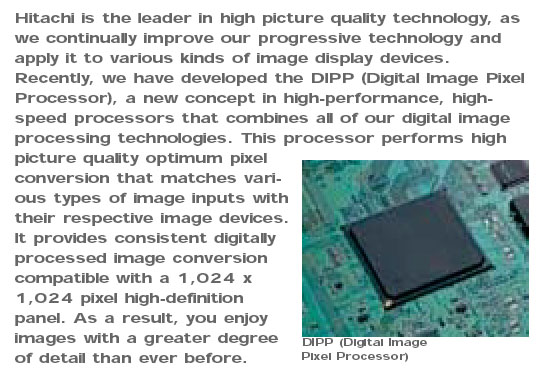

DIPP (Digital
Image Pixel Processor)
The DIPP performs high picture quality optimum pixel conversion that
matches various types of image inputs with their respected image
devices. This gives images a much greater degree of detail.

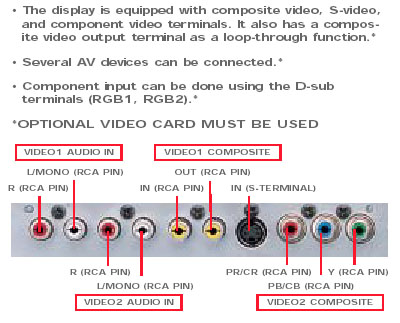

Programmable
Video Inputs
(up to 3 component inputs)
The CMPAV14
video card is equipped with component video, s-video, and
composite video terminals. Several AV devices can be connected. View the Video Inputs
Dynamic
Contrast
Dynamic Contrastautomatically detects the amplitude level of the digitally converted
input signal in order to reproduce every scene with the finest contrast.
Even very bright or dark scenes in movies are dynamically displayed.
Digital Color
Management
Digital Color
Management provides beautiful color images by controlling the
multiple designated colors, mutually independent color tones and color
density without influencing other colors.

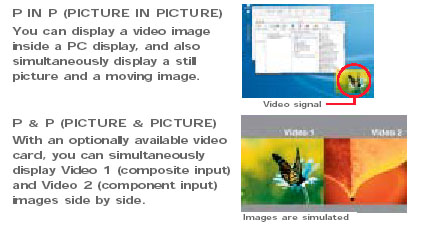

Multi-screen
Functions
Picture in
Picture- You can display a video image inside a PC display and
also simultaneously display a still picture and a moving image.
Picture and
Picture- You can display Video 1 (composite) and Video 2
(component) images side by side.
FEATURES - Hitachi Cmp4201u Hdtv Plasma Monitor
1080i HD Format (1024 x 1024 viewable)
CMPAV-14 Video Card Included
DIPP (Digital Image Pixel Processor) Technology*
Programmable Video Inputs (up to 3 component inputs)*
2/2 (3/2 for NTSC) Motion Adaptive Processing*
Dynamic Contrast*
1000:1 Contrast Ratio
1000 CDM Brightness
Digital Color Management*
P in P (Picture in Picture in Standard PC Mode)*
P & P (Picture and Picture in Video 1 & 2 Mode)*
Filter Function to Reduce Flickering
Built in Screen Savers
Life Extension Control (3 settings)
FCC-B Approved
*Features
Which Require Included CMPAV14 Video Card
SPECIFICATIONS - Hitachi CMP4201U 42 inch HDTV Plasma TV
Model
CMP4201U
Signal Input Mode
RGB 1: Accepts Analog (PC) & Component
Video
(DVD, Sattelite Receiver, HDTV)
RGB 2: Accepts Analog (PC) & Component Video
(DVD, Sattelite Receiver, HDTV)
Inputs/Outputs
Input
Video 1 (Composite)
Video 2 (Component)
Connectors : RCA pin ( L/R ) x 2 ( Video1,2 )
Connectors : 3.5mm stereo mini jack x 2 (RGB1,2 ) Output
10W + 10W (speakers not included, offered as accessories)
Video 1 ( composite video ) only, Level / impedance : 1.0Vp-p / 75ohm
Connector: RCA x 1
Power Supply
AC 100-120/200-400V
Frequency
50/60Hz
Power Consumption
350W typical without sound (Standby 2.5W)
Dimensions
40.55 (W) x 25.5 (H) x 3.5(D)
Weight
68lbs, 3oz
Effective Display Area
36-5/16 x 20-9/16
Aspect Ratio
16:9
Number of Pixels
1024 (Horizontal) x 1024 (Vertical) pixels
Pixel Pitch
0.90 (Horizontal) x 0.51 (Vertical) mm
Number of Colors
16.7 million colors (256 Gray level)
Brightness
1000cd/m2 at panel before filter
Viewing Angle
More than 160 degrees
A.L.I.S. System
in the Hitachi CMP4201u Plasma TV
By lighting even
lines and odd lines alternately, this system enables higher definition and brightness
in the vertical direction. Because lighting duty is only half of conventional
systems, a longer service life is assured. with most of today's video signal
inputs, the CMP4201U comes with composite, component signal connectors, and RGB inputs. This allows the 4201 to be connected to not only VCR's and DVD's,
but also to professional video cameras or recorders, a digital broadcasting
adapter with component input (Y, PB, PR) and personal computer.
