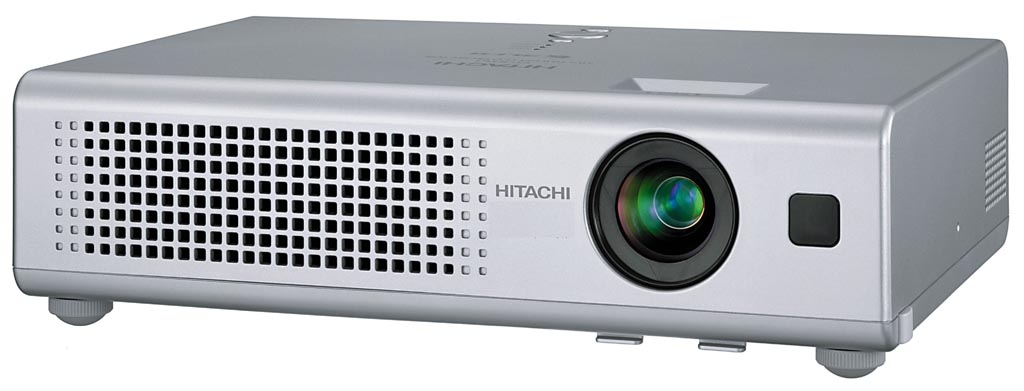

Hitachi CPRS56 SVGA 1600 ANSI Lumens LCD Video Projector

Item Currently Unavailable

Back to Hitachi Projector Main

KEY POINTS - Hitachi CPRS56 SVGA 1600 ANSI Lumens LCD Video Projector:

• 1600 ANSI Lumens
• Native SVGA Resolution 800 x 600
• Native Aspect Ratio 4:3
• Contrast Ratio 500:1

SUMMARY - Hitachi cprs56 SVGA 1600 ANSI Lumens LCD Video Projector:

The CP-RS56 series provides systems integrators with optical zoom, two RGB inputs and a lower cost of ownership. Bringing a lower cost of ownership to end-users in fixed installations, the CP-RS56 series boasts advanced features of a projector its size, including optical zoom and two RGB inputs. Additionally, the CP-RS56 boast a brightness of 1,600 ANSI lumens, with a native SVGA resolution of 800 x 600.

DETAILED SPECS - HITACHI CP-RS56 SVGA 1600 ANSI LUMENS LCD VIDEO PROJECTOR:

• Liquid crystal panel structure 0.55” polysilicon active-matrix TFT x 3 with micro lens
• Resolution Video 540 TV Lines RGB 800 Dots x 600 Lines
• Colors 16.7 million colors
• Aspect ratio Native 4:3; or 16:9 Compatible
• Lens F1.6-1.9, Manual Zoom x 1.2, manual focus
• Throw ratio (distance : width) 1.6-1.9:1
• Lamp 165W UHB
• Brightness 1,600 ANSI Lumens
• Contrast Ratio 500:1
• Expected lamp life Approx. 2,000 hours (Approx. 3,000 hours in Whisper Mode)
• Speakers 1Wx 1
• Power supply AC100-120V/AC220-240V, 50/60 Hz, Auto Switching
• Power consumption 240W
• Approvals UL60950/C-UL, FCC Class B, CE, EN60950
• Operating temperature 0 ~ 35°C (32° ~ 95°F)
• Inputs RGB VGA, SVGA, XGA, SXGA, UXGA MAC 16”, 480i, 576i, 480p, 720p, 1080i Composite Video NTSC, NTSC4.43, PAL (-BGDH), SECAM, PAL-M, PAL-N Plug & Play DDC1/2B
• Acoustic noise level 38dB (33dB in Whisper Mode)
• Vertical keystone correction Digital Keystone +/- 15°
• Input/Output terminals
• Data input RGB 15-pin D-sub connector x 2 Data output 15 pin D-sub connector x1
• Video input S-video Mini DIN 4-pin input connector x 1 Composite video RCA jack x 1
• Audio input Stereo mini jack x1 Audio output Stereo mini jack x1
• Control terminals 9-pin D-sub connector x 1 RS-232C (Serial)
• Dimensions 11.22” x 2.87” x 7.94” (W x H x D)
• Weight 5.1 lbs.
• Supplied accessories Remote control, batteries (AA), power cord, RGB cable, Filter Cover for Ceiling Mount Use, Safey Instruction Guide, User Manual (CD)
