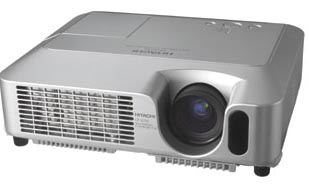

Hitachi CP-S240 SVGA 2000 ANSI Lumens Portable LCD Video Projector

no longer available

Back to Hitachi Projector Main

OVERVIEW - Hitachi cps240 SVGA 2000 ANSI Lumens LCD Video Projector:

Bringing light weight and high brightness for any presentation need, the Hitachi CP-S240 series LCD projector features a new design from Hitachi at an affordable price point. The CP-S240 series weighs in at only 6.2lbs., and measures 12.0" x 3.4" x 9.8" making it easily transportable between any room. Additionally, the CP-S240 boasts 2,000 ANSI lumens of brightness and a 400:1 contrast ratio ensures that there is no sacrifice in performance. Noise level is 33 dB in whisper mode, and a reverse image function is available for ceiling mounting. Includes soft carry case.

FEATURES - Hitachi CPS240 SVGA 2000 ANSI Lumens LCD Video Projector:

• 2000 ANSI Lumens
• Native SVGA Resolution 800 x 600
• Native Aspect Ratio 4:3
• Contrast Ratio 400:1

SPECIFICATIONS - HITACHI CP-S240 SVGA 2000 ANSI LUMENS LCD VIDEO PROJECTOR:

• Liquid crystal panel structure 0.6” polysilicon active-matrix TFT x 3
• Number of pixels 480,000 pixels
• Resolution Video 540 TV lines RGB 800 dots X 600 lines
• Colors 16.7 million colors
• Aspect ratio Native 4:3/16:9 compatible
• Lens F1.7 - 1.9 manual zoom 1:1.2 manual focus
• Throw ratio (distance:width) 1.52 ~ 1.86 : 1
• Lamp 180W UHB
• Brightness 2,000 ANSI lumens
• Expected lamp life Approx. 2,000 hours
• Contrast ratio 400 : 1
• Speakers 1W x 1
• Power supply AC100-120V/AC220-240V 50/60Hz
• Power consumption 290W
• Operating temperature 5°C ~ 35°C (41°F ~ 95°F)
• Input signals RGB VGA, SVGA, XGA,SXGA, UXGA, MAC13”, MAC16” Composite video NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N Component video 480i, 576i, 480p, 720p, 1080i
• Acoustic noise level 38dB (33dB in whisper mode)
• H sync 15kHz ~ 106kHz
• V sync 50Hz ~ 120Hz
• Vertical keystone correction Digital keystone +/– 15°
• Approvals UL60950 / C-UL, FCC Class B, CE, EN60950
• Input/Output terminals
• RGB input Analog RGB 15-pin D-sub connector x 2
• RGB output RGB 15-pin D-sub connector x 1 (share with RGB2 input)
• Video input S-video Mini DIN 4-pin connector x 1 Composite video RCA jack x 1 Component video RCA jack x 3
• Audio Input Stereo mini jack x 1 (for RGB), RCA jack (L/R) x 1 (for video) Output Stereo mini jack x 1
• Control terminals 9-pin D-sub connector x 1 (RS-232C control) USB connector (USB mouse) x 1
• Dimensions 12.0” x 3.4” x 9.8” (W x H x D)
• Weight 6.2 lbs.
• Supplied accessories Remote Control, Batteries (AA), RGB Cable, Power Cord, RCA Video/Audio Cable, Multiple Language Operator / Safety Manual, Soft Case

Manufacturer Homepage: www.hitachi.com
