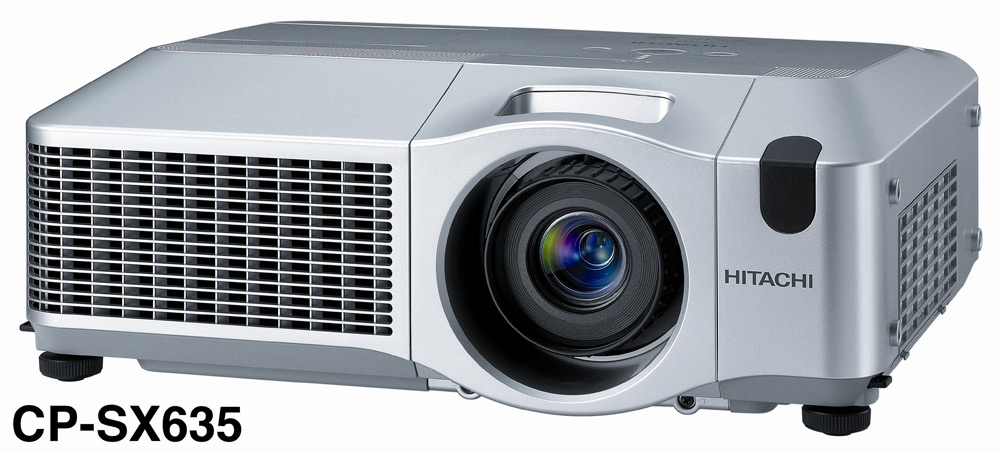

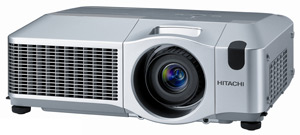

Hitachi CPSX635 SXGA Fixed DLP Video Projector with 4000 ANSI Lumens

OVERVIEW - Hitachi cpsx635 SXGA Fixed DLP Video Projector with 4000 ANSI Lumens:

FEATURES - Hitachicpsx635 sxga fixed dlp video projector with 4000 ansi lumens:


SPECIFICATIONS - Hitachicpsx635 sxga fixed dlp video projector with 4000 ansi lumens:



OPTICAL
LCD Panel	0.8" P-Si TFT x 3 with Micro Lens
Resolution	SXGA+ (1400 x 1050)
Brightness	Normal Mode 4000 ANSI Lumens Eco Mode 3200 ANSI Lumens
Contrast Ratio	1000:1 (Iris On)
Lens	Standard (2.2~2.7m@70") F=1.7~2.1 f=24~29 mm Throw distance ratio= 1.5~1.8:1 zoom X 1.2 FL-601 (Fixed short) (Only 1:1 lens shift) (1.2m@70") F=2.3, f=13mm Throw distance ratio=0.8 x 1, zoom: x 1.0 SL-602 (Short) (1.8~2.9m@70") F=1.9~2.6, f=20~32mm Throw distance ratio=1.2~2.0 x 1, zoom: x 1.6 LL-603 (Long) (2.9~5.8m@70") F=2.1~2.9, f=32~63mm Throw distance ratio=2.0~3.9 x 1, zoom: x 2.0 UL-604 (Ultra long) (5.8~11.0m@70") F=2.2~3.1, f=63~117mm Throw distance ratio=3.9~7.4 x 1, zoom: x 1.9 Manual Zoom, Manual Focus
Lamp	275W
Lamp Life	2000 (normal) 3000 (eco)
Diagonal display size	60" @ 1.8m, 30~350" standard lens
Number of colour	10bit / Colour
Lens shift (Optical Keystone)	1:1 to 9:1 upward shift(Manual lens shift) Horizontal(4:6~6:4) at vertical lens shift 1:1
COMPATIBILITY
Computer compatibility	IBM Compatible VGA, SVGA, XGA, SXGA+,UXGA, MAC 16"
Video compatibility	NTSC / PAL / SECAM / PAL-M,N / NTSC4.43 SDTV: 525i(480i), 525p(480p), 625i(576i) HDTV: 750p(720p@60Hz), 1125i(1080i@50 / 60Hz), 1125p(1080p@50 / 60Hz)
Plug & Play	DDC2B
FEATURES
Audio output	4W x 2
Other	Other Freeze, Magnifying, Blank, Auto adjustment, Search, Mirror Reverse Image, Video noise reduction, Audio ports assign, Frame lock, Equalizing gamma correction, 2-3 pull down, Progressive Scan, Noise reduction, Auto vertical keystone, Manual horizontal keystone, MyScreen, My Memory, My Button, blackboard / whiteboard mode, Daytime mode, Input source naming (English), Resolution setting, Easy lamp replace from top, Easy filter change, Quick ON, Direct ON, Direct OFF, PIN-Lock, MyScreen PIN-Lock, Keypad Lock, Kensington slot, Transition detector
Security bar	•
Security label on side	•
OSD Languages	MENU: 17 Languages
CONNECTIONS
Computer Input	1 x 15-pin Mini D-sub 1 x HDMI 1 x BNC
Computer output	1 x 15-pin Mini D-sub
Video Input	1 x RCA Jack 1 x S-Video Jack 3 x RCA Jack for Component
Audio Input	2 x Stereo Mini Jack 2 x Pair RCA (L / R) (Selectable on OSD)
Audio Output	1 x Stereo Mini Jack
Control and Mouse	1 x 9-pin D-sub for RS232 control 1 x USB type B for mouse control
Wired network	1 x RJ-45
POWER
Power Supply	100-120V / 220-240V auto switching
Power Consumption	460W
PHYSICAL
Dimensions (W x H x D)	418 x 139 x 319mm (excluding feet and extrusions)
Weight	7.1Kg
Noise level	35dB (Normal Mode) / 29dB (Eco Mode)
Air filter	Hybrid
MISCELLANEOUS
	Lamp Indicator Light, Power Light, Ceiling Mount Image, Rear Projection Image,
CERTIFICATION
	UL60950 / C-UL, FCC Part 15 Class A, CE, AS / NZS CISPR22 Class A
ACCESSORIES SUPPLIED
	Remote control with batteries, Computer cable, Power cord, User manual (detail & concise), Lens cap (& strap), Security label
OPTIONAL ACCESSORIES
Replacement Lamp	DT00873

"

Manufacturer Page: www.hitachidigitalmedia.com
